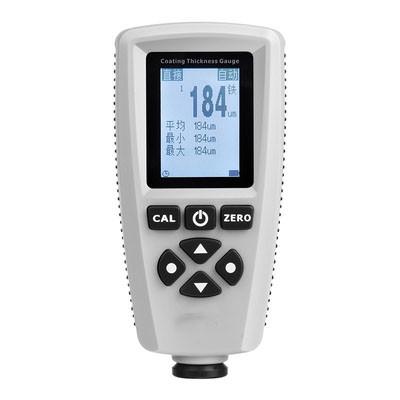

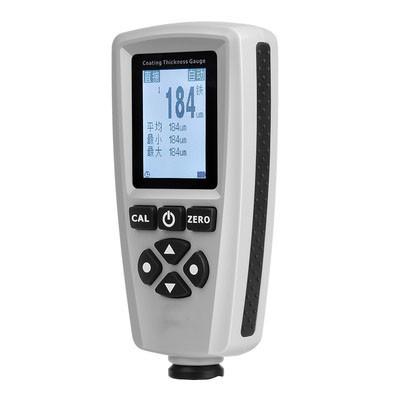

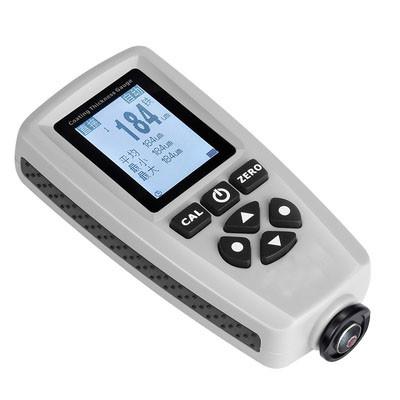

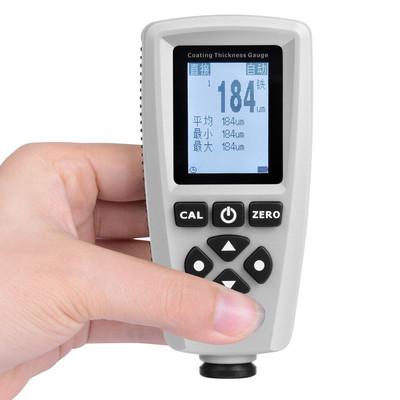

KMC 770 Digital Auto Car Paint Thickness Meter
KMC 770 Digital Auto Car Paint Thickness Meter
KMC 770 Digital Auto Car Paint Thickness Meter
KMC 770 Digital Auto Car Paint Thickness Meter
KMC 770 Digital Auto Car Paint Thickness Meter
KMC 770 Digital Auto Car Paint Thickness Meter
KMC 770 Digital Auto Car Paint Thickness Meter
KMC 770 Digital Auto Car Paint Thickness Meter
Specifications
Brand Name :
KACISE
Model Number :
KMC-770
MOQ :
1PCS
Payment Terms :
L/C,D/A,D/P,T/T,Western Union,MoneyGram
Supply Ability :
1000 Piece/Pieces per Week negotiable
Delivery Time :
5-8 work days
Packaging Details :
each unit has individual box and all boxes are packed in standard packages or customers requests available
Certification :
CE
Model :
KMC-770
Measuring Range :
0~2000μm
Product Name :
Coating Thickness Gauge
Probe Triggering Force :
0.3~0.8N
Operating Temperature :
-10~50℃
Description
KMC 770 Digital Auto Car Paint Thickness Meter
Product Introduction
The KMC 770 Digital Paint Thickness Meter is a versatile non-destructive testing tool designed to measure coating thickness on metal surfaces. Ideal for automotive inspection, manufacturing, and quality control, this meter accurately measures non-conductive coatings on ferrous (iron, nickel, cobalt) and non-ferrous (aluminum, copper) metals, such as paint, galvanized layers, and plastic films.

KMC 770 Digital Auto Car Paint Thickness Meter

Product Features
Dual-Substrate Detection:
Ruby-tipped probe automatically identifies ferrous (Fe) and non-ferrous (NFe) substrates for seamless switching.
Measurement range: 0–2000μm with ±(2.5% + 1μm) accuracy.
High-Speed Testing:
2 measurements/second for efficient batch testing in production lines or vehicle inspections.
Environmental Adaptability:
Operates in -10–50°C with stable readings, resistant to temperature fluctuations.
User-Friendly Design:
Red-screen warning for out-of-range measurements.
Reversible display for easy reading in any orientation.
Auto-shutoff after inactivity to conserve battery life.
Data Management:
Transfer measurement data to computers for analysis and reporting.
Technical Specifications
Parameter Detail
Model MC-770
Measurement Principle Magnetic induction (Fe) / eddy current (NFe)
Range 0–2000μm
Accuracy ±(2.5% + 1μm)
Probe Force 0.3–0.8N
Minimum Measurement Area 15mm diameter
Dimensions 114×53×25mm
Weight 80g
Operating Temperature -10–50°C
Battery Life [Specify if available, e.g., 200 hours on AAA batteries]
