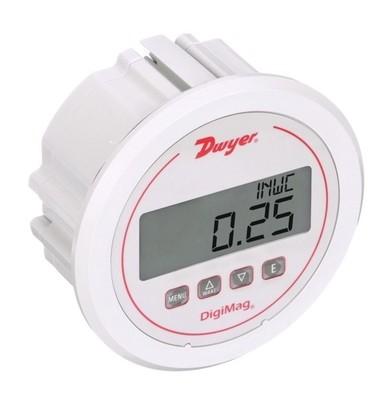

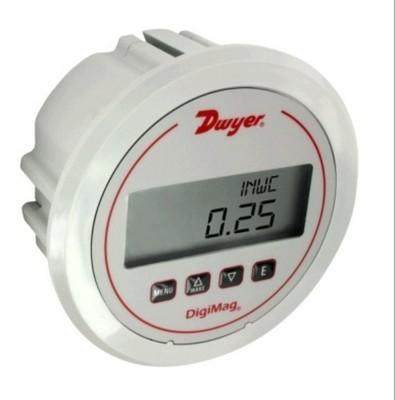

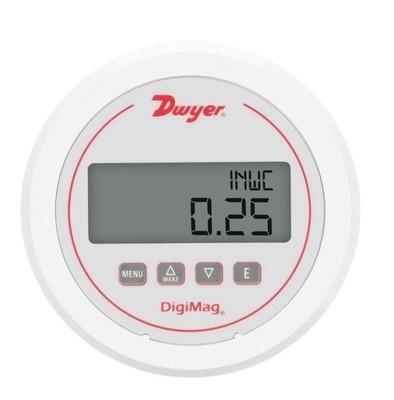

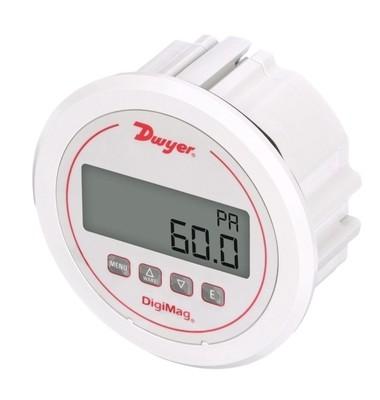

Dwyer DM-1000 Series DigiMag Digital Differential Pressure Gauge
Dwyer DM-1000 Series DigiMag Digital Differential Pressure Gauge
Dwyer DM-1000 Series DigiMag Digital Differential Pressure Gauge
Dwyer DM-1000 Series DigiMag Digital Differential Pressure Gauge
Dwyer DM-1000 Series DigiMag Digital Differential Pressure Gauge
Dwyer DM-1000 Series DigiMag Digital Differential Pressure Gauge
Dwyer DM-1000 Series DigiMag Digital Differential Pressure Gauge
Dwyer DM-1000 Series DigiMag Digital Differential Pressure Gauge
Specifications
Compensated Temperature Limits :
32 To 122°F (0 To 50°C)
Temperature Limits :
0 To 140°F (-18 To 60°C)
Warranty :
1 Year
Product Name :
Digital Differential Pressure Gauge
Pressure Range :
1.72 Bar
Brand Name :
Dwyer
Model Number :
DM-1000
Certification :
CE
MOQ :
1PCS
Payment Terms :
L/C,D/A,D/P,T/T,Western Union,MoneyGram
Supply Ability :
1000 Piece/Pieces per Week negotiable
Delivery Time :
5-8 work days
Packaging Details :
each unit has individual box and all boxes are packed in standard packages or customers requests available
Accuracy :
±2% （-HA ±1）FS （±3% （-HA ±1.5%）
Description
Dwyer DM-1000 Series DigiMag Digital Differential Pressure Gauge
Attribute Value
Warranty 1 Year
Compensated Temperature Limits 32 To 122°F (0 To 50°C)
Temperature Limits 0 To 140°F (-18 To 60°C)
Accuracy ±2% (-HA ±1)FS (±3% (-HA ±1.5%)
Pressure Range 1.72 Bar
Product Name Digital Differential Pressure Gauge
Product Overview

The Dwyer DM-1000 Series DigiMag Digital Differential Pressure Gauge combines the reliability of analog Magnehelic gauges with advanced digital functionality, designed for precise measurement of air and non-combustible gas pressures. With a 4-digit LCD display and field-programmable settings, it offers versatility for pressure, air velocity, and flow applications in HVAC, industrial, and cleanroom environments.

Dwyer DM-1000 Series DigiMag Digital Differential Pressure Gauge
Key Features
  • Accuracy & Stability: ±1% full-scale (FS) accuracy for ranges ≥2 in. w.c., ±2% for ranges ≤1 in. w.c. Long-term stability: ±1% FS/year, ideal for critical monitoring.
  • Digital Flexibility: 4-button interface for easy calibration, unit conversion, and filter alarm setup. Selectable engineering units: in. w.c., psi, kPa, mBar, etc.
  • Dual Power Options: 9V alkaline battery (1.5-year life in standby) or 9-24 VDC external power. Battery backup ensures uninterrupted operation during power outages.
  • Alarm & Data Functions: Blinking display for filter maintenance alerts when pressure thresholds are met. Peak/valley tracking and data smoothing for process analysis.
