KMC-DP-200 Slash Negative Pressure Gauge for Fire Engineering
KMC-DP-200 Slash Negative Pressure Gauge for Fire Engineering
KMC-DP-200 Slash Negative Pressure Gauge for Fire Engineering
KMC-DP-200 Slash Negative Pressure Gauge for Fire Engineering
KMC-DP-200 Slash Negative Pressure Gauge for Fire Engineering
KMC-DP-200 Slash Negative Pressure Gauge for Fire Engineering
KMC-DP-200 Slash Negative Pressure Gauge for Fire Engineering
KMC-DP-200 Slash Negative Pressure Gauge for Fire Engineering
Specifications
Brand Name :
KACISE
Model Number :
KMC-DP-200
MOQ :
1PCS
Payment Terms :
L/C,D/A,D/P,T/T,Western Union,MoneyGram
Supply Ability :
1000 Piece/Pieces per Week negotiable
Delivery Time :
5-8 work days
Packaging Details :
each unit has individual box and all boxes are packed in standard packages or customers requests available
Certification :
CE
Size :
196mm*84mm
Model :
DP-200
Working Temperature :
-70
Pressure Range :
0-200pa
Accuracy :
0.5
Product Name :
Inclined Tube Manometer
Description

KMC-DP-200 Slash Negative Pressure Gauge for Fire Engineering

Product Introduction

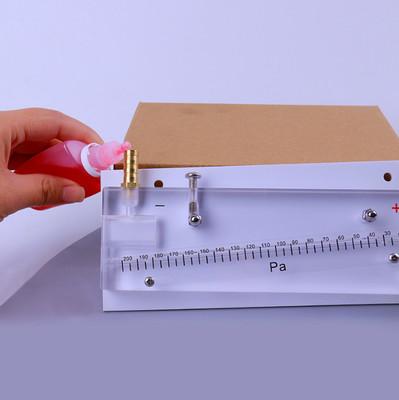

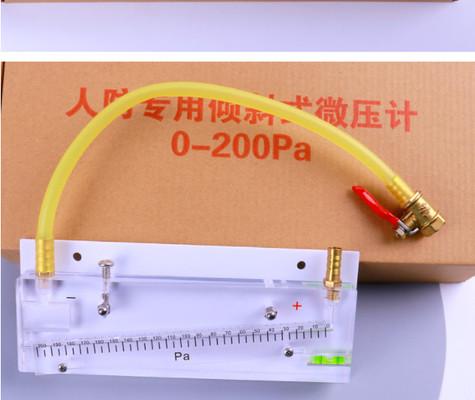

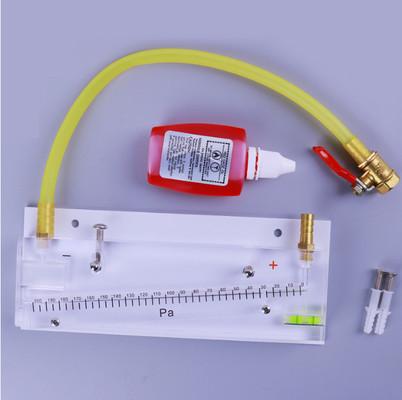

The KMC DP-200 Slash Negative Pressure Gauge is a specialized instrument designed for fire engineering and civil air defense projects, providing precise 0–200Pa pressure measurement to ensure airtightness and positive pressure maintenance. Made in China, this gauge combines durability with easy operation, ideal for detecting differential pressure in critical infrastructure.

KMC-DP-200 Slash Negative Pressure Gauge for Fire Engineering

Product Features

Dual Structure Options:

Chrome-plated alloy or full stainless steel construction for corrosion resistance in harsh environments.

Overload Protection:

Symmetrical control table design withstands high static pressure and overloads.

Precision Sensing:

High-performance single-element sensor ensures minimal transmission error and reliable readings.

Adjustable Control:

Continuous zero-to-full-scale pressure adjustment for versatile applications.

Alarm Functionality:

Optional lower-limit alarm switch output for critical pressure threshold monitoring.

Technical Specifications

Parameter Detail
Model DP-200
Pressure Range 0–200 Pa (negative pressure compatible)
Accuracy ±0.5% full scale
Media Gases (air, non-combustible)
Housing Material Plastic (corrosion-resistant design)
Working Temperature -10–60°C (-14–140°F)
Dimensions [Refer to product drawings for exact size]
Process Connections Pressure ports for high/low inputs
