KMC-666 Digital Car Paint Thickness Gauge
KMC-666 Digital Car Paint Thickness Gauge
KMC-666 Digital Car Paint Thickness Gauge
KMC-666 Digital Car Paint Thickness Gauge
KMC-666 Digital Car Paint Thickness Gauge
KMC-666 Digital Car Paint Thickness Gauge
KMC-666 Digital Car Paint Thickness Gauge
KMC-666 Digital Car Paint Thickness Gauge
Specifications
Brand Name :
KACISE
Model Number :
KMC-666
MOQ :
1PCS
Payment Terms :
L/C,D/A,D/P,T/T,Western Union,MoneyGram
Supply Ability :
1000 Piece/Pieces per Week negotiable
Delivery Time :
5-8 work days
Packaging Details :
each unit has individual box and all boxes are packed in standard packages or customers requests available
Certification :
CE
The Accuracy :
0.025
Power :
Battery
Weight :
80g
Model :
MC-666
Dimensions :
114*53*25mm
Color :
Black
Description

KMC-666 Digital Car Paint Thickness Gauge

Product Introduction

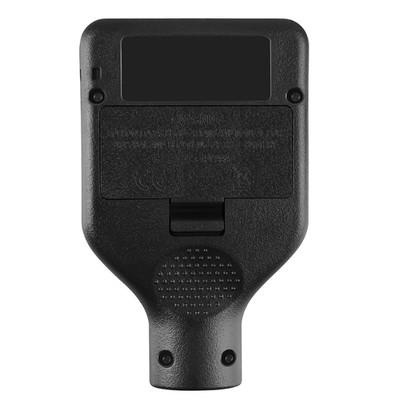

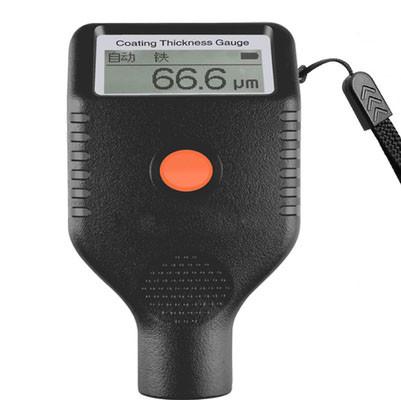

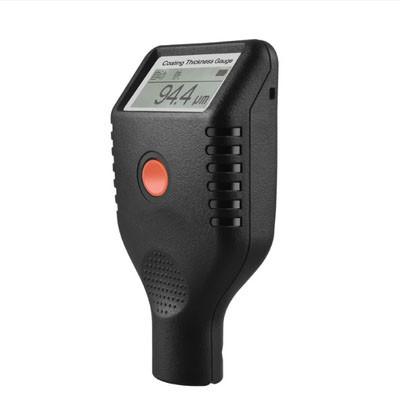

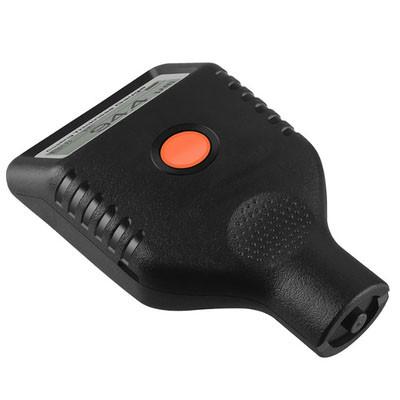

The KMC-666 Digital Paint Thickness Gauge is a portable, battery-operated instrument designed for non-destructive measurement of coating thickness on metal surfaces. With 2.5% accuracy and automatic substrate detection, it efficiently identifies paint, galvanized layers, and other coatings on ferrous and non-ferrous metals, making it essential for automotive inspection, manufacturing quality control, and maintenance.

KMC-666 Digital Car Paint Thickness GaugeKMC-666 Digital Car Paint Thickness Gauge

Product Features

Dual-Substrate Measurement:

Automatically identifies ferrous (Fe) and non-ferrous (NFe) substrates using magnetic induction and eddy current principles.

High Accuracy:

±2.5% full-scale accuracy for precise coating thickness readings (0–2000μm range).

Environmental Adaptability:

Operates in -20–50°C (-4–122°F), resistant to electrostatic interference and moisture.

User-Friendly Design:

Compact 114×53×25mm size, 80g weight for handheld use; auto-shutoff to conserve battery life.

Technical Specifications

Parameter Detail
Model KMC-666
Measurement Range 0–2000μm
Accuracy ±2.5% + 1μm
Substrate Types Ferrous metals (Fe) and non-ferrous metals (Al, Cu, etc.)
Display Digital LCD with clear reading of thickness values
Power Source Battery-powered (replaceable, typical life: 200+ hours)
Dimensions/Weight 114×53×25mm / 80g
Warranty 1 year
