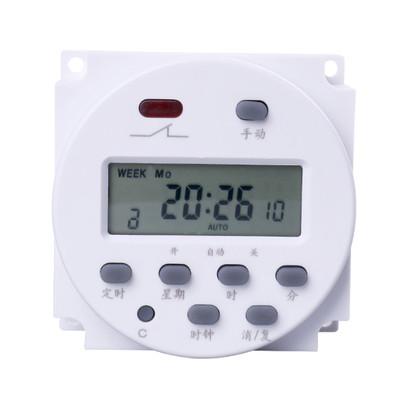

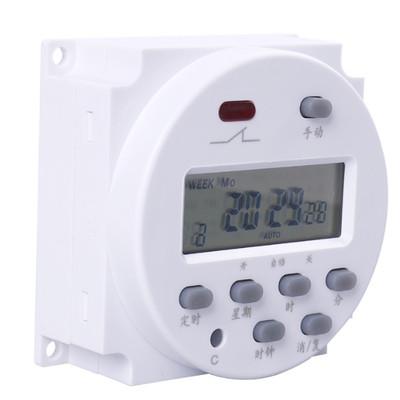

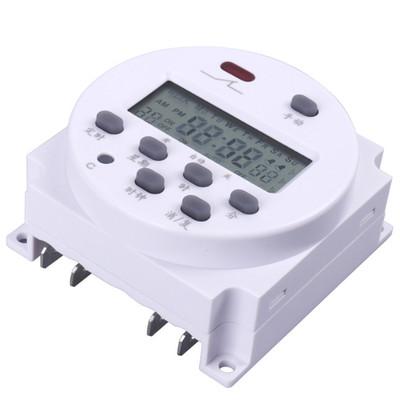

KMC-CN101A Din Rail Weekly Programmable Timer Switch
KMC-CN101A Din Rail Weekly Programmable Timer Switch
KMC-CN101A Din Rail Weekly Programmable Timer Switch
KMC-CN101A Din Rail Weekly Programmable Timer Switch
KMC-CN101A Din Rail Weekly Programmable Timer Switch
KMC-CN101A Din Rail Weekly Programmable Timer Switch
KMC-CN101A Din Rail Weekly Programmable Timer Switch
KMC-CN101A Din Rail Weekly Programmable Timer Switch
Specifications
Brand Name :
KACISE
Model Number :
KMC-CN101A
MOQ :
1PCS
Payment Terms :
L/C,D/A,D/P,T/T,Western Union,MoneyGram
Supply Ability :
1000 Piece/Pieces per Week negotiable
Delivery Time :
5-8 work days
Packaging Details :
each unit has individual box and all boxes are packed in standard packages or customers requests available
Certification :
CE
Minimum Interval :
1 Minute
Programmable :
17times/week Or Day
Dimensions :
62x62x32.5mm
Warranty :
1 Year
Product Name :
Programmable Timer Switch
Installation Type :
Din Rail
Description

KMC-CN101A Din Rail Weekly Programmable Timer Switch

Product Introduction

The KMC-CN101A is a versatile din rail-mounted timer switch designed for precise time control in industrial and commercial applications. With support for multiple voltage inputs (12V, 24V, 110V, 220V) and a 16A contact capacity, it enables programmable on/off scheduling for lighting, motors, heaters, and other electrical devices. The LCD display and intuitive button interface make setup simple, while built-in power failure memory ensures program retention during outages.

KMC-CN101A Din Rail Weekly Programmable Timer Switch

Product Features

Flexible Voltage Compatibility:

Works with DC (12V/24V) and AC (110V/220V) power supplies, suitable for global applications.

High Load Capacity:

16A relay supports resistive loads (e.g., heaters, lights) and inductive loads (e.g., motors, compressors).

Weekly Programming:

Set up to 172 on/off events per week with 15 customizable weekly modes (e.g., daily, weekday/weekend schedules).

Power Failure Protection:

Rechargeable battery preserves settings for up to 180 days without power.

User-Friendly Interface:

LCD display with backlight; soft rubber buttons for easy time and mode adjustment.

Technical Specifications

Parameter Detail
Rated Voltage 12V/24V DC, 110V/220V AC (auto-adaptive)
Contact Capacity 16A resistive load (3500W at 220V), 850W inductive load
Power Consumption ≤2W
Internal Battery 1.2V/40mA rechargeable (maintains settings for 180 days during power outages)

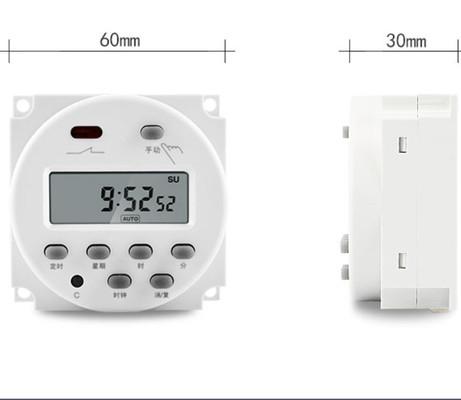

Dimensions 62×62×32.5mm (din rail mountable)
Temperature Range -10°C to +40°C
Programmable Events 172 groups of on/off events, 168-hour maximum cycle
Minimum Time Interval 1 minute
