Dwyer TTE-104-W-LCD Explosion-Proof RTD Temperature Transmitter
Dwyer TTE-104-W-LCD Explosion-Proof RTD Temperature Transmitter
Dwyer TTE-104-W-LCD Explosion-Proof RTD Temperature Transmitter
Dwyer TTE-104-W-LCD Explosion-Proof RTD Temperature Transmitter
Specifications
Brand Name :
Dwyer
Model Number :
TTE-104-W-LCD
MOQ :
1PCS
Payment Terms :
L/C,D/A,D/P,T/T,Western Union,MoneyGram
Supply Ability :
1000 Piece/Pieces per Week negotiable
Delivery Time :
5-8 work days
Packaging Details :
each unit has individual box and all boxes are packed in standard packages or customers requests available
Certification :
CE
Temperature Sensor :
Pt1000, 0.00385 DIN
Temperature Limits :
Transmitter: ±0.1% FS; Probe: ±0.3% FS
Thermal Drift Effects :
±0.02%/°C Max
Response Time :
250 Ms
Wetted Materials :
316 SS
Process Connection :
1/2" Male NPT Or 1/2 Male BSPT
Description

Dwyer TTE-104-W-LCD Explosion-Proof RTD Temperature Transmitter

Product Introduction

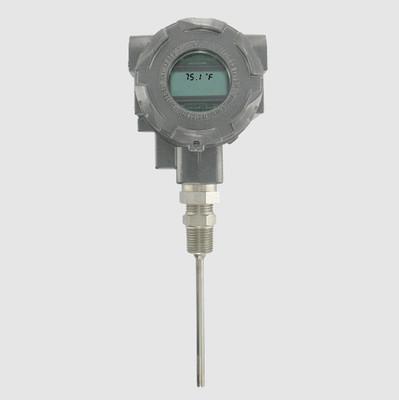

The Dwyer TTE-104-W-LCD Explosion-Proof RTD Temperature Transmitter is engineered for reliable temperature measurement in hazardous explosive environments. FM approved for Class I, Groups B, C, D and Class II, Groups E, F, G, this transmitter ensures safe operation in areas with flammable gases, vapors, or combustible dusts. Equipped with a rugged explosion-proof housing, it features an optional LCD display for real-time temperature visualization and offers flexible output spans, including seven common ranges or user-defined settings. Ideal for industrial applications requiring both safety compliance and precise temperature monitoring.

Dwyer TTE-104-W-LCD Explosion-Proof RTD Temperature Transmitter

Product Features

Explosion-Proof Certification:

FM approved for Class I (Groups B, C, D) and Class II (Groups E, F, G) hazardous environments.

Suitable for areas with flammable gases, vapors, or combustible dusts.

RTD Sensing Technology:

High-precision RTD sensor for accurate temperature measurement.

Stable performance in harsh industrial conditions.

Flexible Output Configuration:

Selectable output spans from seven common ranges (e.g., 0–100°C, -40–80°C).

User-determined output ranges for customized applications.

Optional LCD Display:

Real-time temperature visualization for quick on-site readings.

Enhances usability in environments requiring immediate data access.

Durable Construction:

Explosion-proof housing designed to withstand harsh conditions.

Suitable for outdoor or indoor installations in hazardous areas.

Technical Specifications

Parameter Value
Certification FM approved for Class I, Groups B, C, D; Class II, Groups E, F, G
Sensor Type RTD (Resistance Temperature Detector)
Output Signal 4–20 mA, 0–5 VDC, or 0–10 VDC (configurable)
Temperature Range Depends on sensor and output span (user-selectable)
Display (Optional) LCD for temperature visualization
Housing Material Explosion-proof construction suitable for hazardous environments
