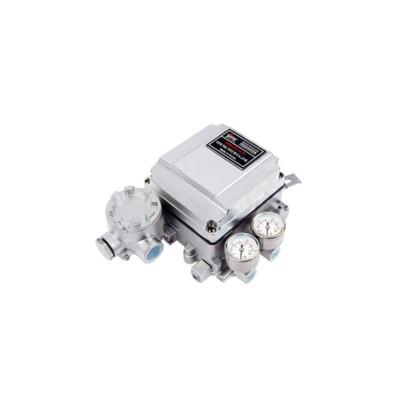

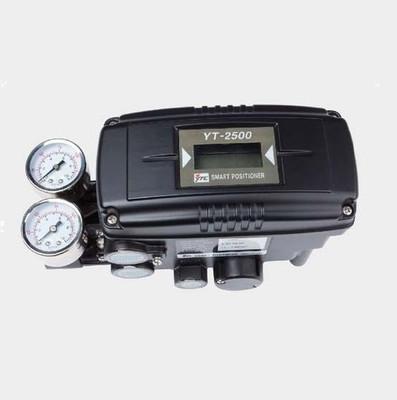

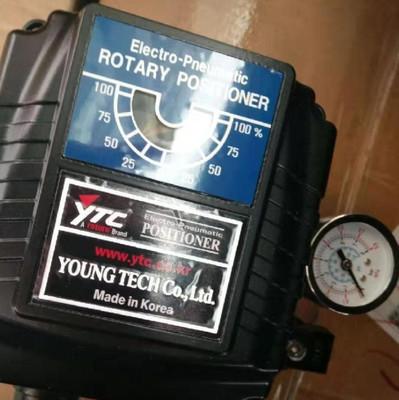

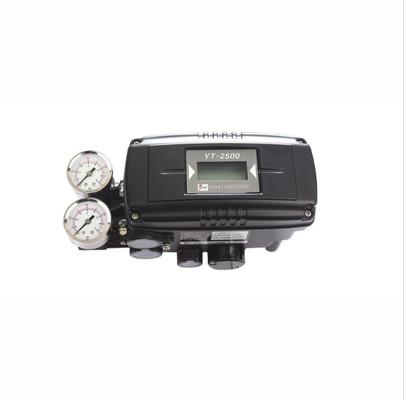

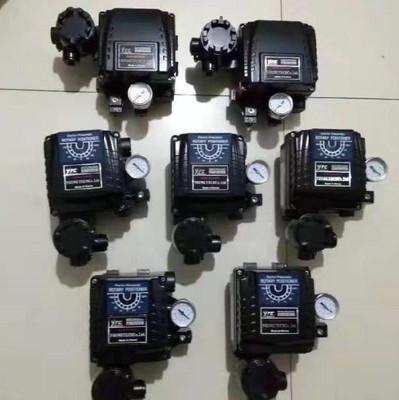

YT 2500 Smart Digital Valve Positioner for Control Valves
YT 2500 Smart Digital Valve Positioner for Control Valves
YT 2500 Smart Digital Valve Positioner for Control Valves
YT 2500 Smart Digital Valve Positioner for Control Valves
YT 2500 Smart Digital Valve Positioner for Control Valves
YT 2500 Smart Digital Valve Positioner for Control Valves
YT 2500 Smart Digital Valve Positioner for Control Valves
YT 2500 Smart Digital Valve Positioner for Control Valves
YT 2500 Smart Digital Valve Positioner for Control Valves
YT 2500 Smart Digital Valve Positioner for Control Valves
YT 2500 Smart Digital Valve Positioner for Control Valves
YT 2500 Smart Digital Valve Positioner for Control Valves
Specifications
Brand Name :
YTC
Model Number :
YT 2500
MOQ :
1PCS
Payment Terms :
L/C,D/A,D/P,T/T,Western Union,MoneyGram
Supply Ability :
1000 Piece/Pieces per Week negotiable
Delivery Time :
5-8 work days
Packaging Details :
each unit has individual box and all boxes are packed in standard packages or customers requests available
Certification :
CE
Impedance :
250±15 OHM
Port Size :
1/2''
Signal :
4~20mA
Stroke :
0~60° , 0~90°
Medium :
Water, Oil, Gas, Steam, Air
Highlight :
YT 2500 Control Valve Positioner, YTC Control Valve Positioner, YT 2500 Digital Valve Positioner
Description

YT 2500 Smart Digital Valve Positioner for Control Valves


Intelligent valve can respond to 4~20mA controller input signal, so as to accurately control valve stroke. The built-in microprocessor optimizes performance and enables specific functions, such as automatic calibration, PID control, and HART protocol communication

YT 2500 Smart Digital Valve Positioner for Control Valves

outptu 4-20ma
Impedance 250±15 OHM
Port size 1/2''
Stroke 0~60° , 0~90°
Warranty 1 Year

Key features and functions

Imr: In case of input signal failure, valve can maintain current travel position without additional equipment. (Fail Freeze option)

Imr user can monitor status with LCD monitor.

Impi Users can master 4 buttons easily due to the same interface working mode of different firmware versions.

Imr Capable of normal operation when the pressure source changes suddenly and/or in high vibration environment.

YT-2501: Divided into remote sensor and two parts, thus better adapting to high temperature and vibration environment.

Easy to use for automatic calibration.

Minimized air consumption, able to significantly reduce operating cost of large plant.

Compatible with most controllers.

Choice of variable port parts to reduce oscillation and optimize working condition.

Prepared to process various related information with HART communication. (option)

Impi Improved stability of valve system by output analog feedback signal.

Imr valve characteristics adjustment - direct stroke, fast opening, equal ratio and user Settings (user can set 5 feature points or 18 special points)

YT 2500 Smart Digital Valve Positioner for Control Valves
