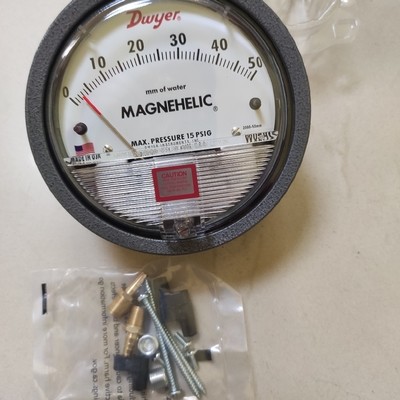

Dwyer Series 2000 Stainless Steel Magnehelic® Differential Pressure Gauge 2000-50mm
Dwyer Series 2000 Stainless Steel Magnehelic® Differential Pressure Gauge 2000-50mm
Specifications
Weight :
0.55kg
Highlight :
Stainless Steel Magnehelic Pressure Gauge, Magnehelic Digital Differential Pressure Gauge, 2000mm Digital Magnehelic Gauge
Temperature Limits :
20 To 140°F
Connection :
1/8 NPT
Size :
114.3*139.7mm
Accuracy :
±2% Of FS
Brand Name :
Dwyer
Model Number :
2000-50mm
MOQ :
1PCS
Payment Terms :
L/C,D/A,D/P,T/T,Western Union,MoneyGram
Supply Ability :
1000 Piece/Pieces per Week negotiable
Delivery Time :
5-8 work days
Packaging Details :
each unit has individual box and all boxes are packed in standard packages or customers requests available
Certification :
CE
Description
Dwyer Series 2000 Stainless Steel Magnehelic® Differential Pressure Gauge 2000-50mm
Key Features:
Stainless Steel Magnehelic Pressure Gauge
Magnehelic Digital Differential Pressure Gauge
2000mm Digital Magnehelic Gauge
Product Description

The Dwyer Series 2000 Stainless Steel Magnehelic® Differential Pressure Gauge utilizes Dwyer's patented Magnehelic® technology, featuring two identical bellows with equal stiffness. When pressure differential is applied, the bellows generate balanced forces on a central stent, which remains stationary until a differential exceeds the spring leaf's resistance. This frictionless magnetic linkage converts pressure changes into precise pointer movement on the analog dial, eliminating mechanical wear and ensuring long-term stability.

Dwyer Series 2000 Stainless Steel Magnehelic® Differential Pressure Gauge 2000-50mm
Dwyer Series 2000 Stainless Steel Magnehelic® Differential Pressure Gauge 2000-50mm
Product Features
Industrial Processes:
  • Monitor filter pressure drop in dust collection systems
  • Measure fan/blower pressure differentials in HVAC ductwork
Manufacturing:
  • Control positive/negative pressure in cleanrooms and semiconductor facilities
  • Validate pressure drop across orifice plates in fluid systems
Marine & Offshore:
  • Corrosion-resistant design for saltwater environments and shipboard applications
Attribute Value
Connection 1/8 NPT
Weight 0.55kg
Temperature Limits 20 to 140°F
Accuracy ±2% of FS
Size 114.3*139.7mm
Dwyer Series 2000 Stainless Steel Magnehelic® Differential Pressure Gauge 2000-50mm
