Specifications
Brand Name :
Dwyer
Model Number :
MS-021 MS-111-LCD
MOQ :
1PCS
Payment Terms :
L/C,D/A,D/P,T/T,Western Union,MoneyGram
Supply Ability :
1000 Piece/Pieces per Week negotiable
Delivery Time :
5-8 work days
Packaging Details :
each unit has individual box and all boxes are packed in standard packages or customers requests available
Certification :
CE
Accuracy :
±1%
Stability :
±1% FS/year
Temperature Limits :
0 To 150°F (-18 To 66°C)
Pressure Limits :
1 Psi Maximum, Operation; 10 Psi, Burst
Power Requirements :
10 To 35 VDC (2-wire); 17 To 36 VDC Or Isolated 21.6 To 33 VAC (3-wire)
Output Signals :
4 To 20 MA (2-wire); 0 To 5 V, 0 To 10 V (3-wire)
Description

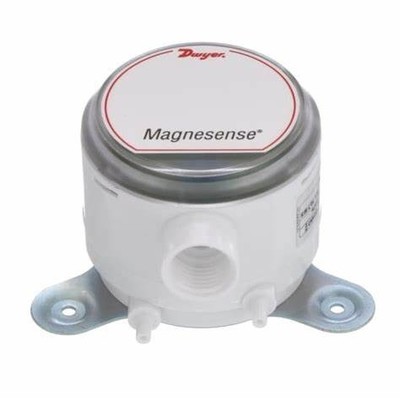

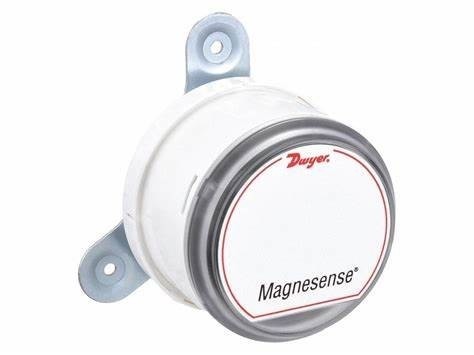

Dwyer MS Series Magnesense Differential Pressure Transmitter
The Dwyer MS Series Magnesense Differential Pressure Transmitter combines versatility and precision for industrial pressure and air velocity monitoring. Leveraging patented magnetic sensing technology, this transmitter delivers long-term reliability with field-selectable ranges, adjustable outputs, and optional LCD displays—making it an ideal single solution for diverse pressure and flow applications.
Dwyer MS Series Magnesense Differential Pressure Transmitter with 4-20 mA Output and Field-Selectable Ranges Dwyer MS Series Magnesense Differential Pressure Transmitter with 4-20 mA Output and Field-Selectable Ranges
Applications
HVAC Systems:
  • Filter pressure drop monitoring
  • Air velocity measurement with Pitot tubes
  • Duct static pressure control
Industrial Processes:
  • Blower vacuum sensing
  • Cleanroom positive pressure maintenance
  • Fluid amplifier pressure monitoring
Building Automation:
  • Room pressure differential control
  • Fire damper position indication
Model Specifications
Model Description
MS-021Differential pressure transmitter, 4-20 mA output, selectable range ±0.1", 0.25", 0.5" w.c. (±25, 50, 100 Pa), wall mount.
MS-021-LCDDifferential pressure transmitter, 4-20 mA output, selectable range ±0.1", 0.25", 0.5" w.c. (±25, 50, 100 Pa), wall mount, with LCD.
MS-111Differential pressure transmitter, 4-20 mA output, selectable range 1", 2", 5" w.c. (250, 500, 1250 Pa), wall mount.
MS-111-LCDDifferential pressure transmitter, 4-20 mA output, selectable range 1", 2", 5" w.c. (250, 500, 1250 Pa), wall mount, with LCD.
MS-112Differential pressure transmitter, 4-20 mA output, selectable range 1", 2", 5" w.c. (250, 500, 1250 Pa), duct mount.
MS-112-LCDDifferential pressure transmitter, 4-20 mA output, selectable range 1", 2", 5" w.c. (250, 500, 1250 Pa), duct mount, with LCD.
MS-121Differential pressure transmitter, 4-20 mA output, selectable range 0.1", 0.25", 0.5" w.c. (25, 50, 100 Pa), wall mount.
MS-121-LCDDifferential pressure transmitter, 4-20 mA output, selectable range 0.1", 0.25", 0.5" w.c. (25, 50, 100 Pa), wall mount, with LCD.
MS-122Differential pressure transmitter, 4-20 mA output, selectable range 0.1", 0.25", 0.5" w.c. (25, 50, 100 Pa), duct mount.
MS-122-LCDDifferential pressure transmitter, 4-20 mA output, selectable range 0.1", 0.25", 0.5" w.c. (25, 50, 100 Pa), duct mount, with LCD.
MS-131Differential pressure transmitter, 4-20 mA output, selectable range 10" w.c. (2 kPa), wall mount.
MS-131-LCDDifferential pressure transmitter, 4-20 mA output, selectable range 10" w.c. (2 kPa), wall mount, with LCD.
MS-141Differential pressure transmitter, 4-20 mA output, selectable range 15" w.c. (3 kPa), wall mount.
MS-141-LCDDifferential pressure transmitter, 4-20 mA output, selectable range 15" w.c. (3 kPa), wall mount, with LCD.
MS-151Differential pressure transmitter, 4-20 mA output, selectable range 25" w.c. (5 kPa), wall mount.
MS-151-LCDDifferential pressure transmitter, 4-20 mA output, selectable range 25" w.c. (5 kPa), wall mount, with LCD.
MS-221Differential pressure transmitter, 0-10 V output, selectable range ±0.1", 0.25", 0.5" w.c. (±25, 50, 100 Pa), wall mount.
MS-221-LCDDifferential pressure transmitter, 0-10 V output, selectable range ±0.1", 0.25", 0.5" w.c. (±25, 50, 100 Pa), wall mount, with LCD.
MS-311Differential pressure transmitter, 0-10 V output, selectable range 1", 2", 5" w.c. (250, 500, 1250 Pa), wall mount.
MS-311-LCDDifferential pressure transmitter, 0-10 V output, selectable range 1", 2", 5" w.c. (250, 500, 1250 Pa), wall mount, with LCD.
MS-312Differential pressure transmitter, 0-10 V output, selectable range 1", 2", 5" w.c. (250, 500, 1250 Pa), duct mount.
MS-312-LCDDifferential pressure transmitter, 0-10 V output, selectable range 1", 2", 5" w.c. (250, 500, 1250 Pa), duct mount, with LCD.
MS-321Differential pressure transmitter, 0-10 V output, selectable range 0.1", 0.25", 0.5" w.c. (25, 50, 100 Pa), wall mount.
MS-321-LCDDifferential pressure transmitter, 0-10 V output, selectable range 0.1", 0.25", 0.5" w.c. (25, 50, 100 Pa), wall mount, with LCD.
MS-322Differential pressure transmitter, 0-10 V output, selectable range 0.1", 0.25", 0.5" w.c. (25, 50, 100 Pa), duct mount.
MS-322-LCDDifferential pressure transmitter, 0-10 V output, selectable range 0.1", 0.25", 0.5" w.c. (25, 50, 100 Pa), duct mount, with LCD.
MS-621Differential pressure transmitter, 5 VDC output, selectable range ±0.1", 0.25", 0.5" w.c. (±25, 50, 100 Pa), wall mount.
MS-621-LCDDifferential pressure transmitter, 5 VDC output, selectable range ±0.1", 0.25", 0.5" w.c. (±25, 50, 100 Pa), wall mount, with LCD.
MS-711Differential pressure transmitter, 5 VDC output, selectable range 1", 2", 5" w.c. (250, 500, 1250 Pa), wall mount.
MS-711-LCDDifferential pressure transmitter, 5 VDC output, selectable range 1", 2", 5" w.c. (250, 500, 1250 Pa), wall mount, with LCD.
MS-712-LCDDifferential pressure transmitter, 5V output, selectable range 1", 2", 5" w.c. (250, 500, 1250 Pa), duct mount, with LCD.
MS-721Differential pressure transmitter, 5 VDC output, selectable range 0.1", 0.25", 0.5" w.c. (25, 50, 100 Pa), wall mount.
MS-721-LCDDifferential pressure transmitter, 5 VDC output, selectable range 0.1", 0.25", 0.5" w.c. (25, 50, 100 Pa), wall mount, with LCD.
MS-722-LCDDifferential pressure transmitter, 5 VDC output, selectable range 0.1", 0.25", 0.5" w.c. (25, 50, 100 Pa), duct mount, with LCD.
MS-821Differential pressure transmitter, 5V output, 12V input, selectable range ±0.1", 0.25", 0.5" w.c. (±25, 50, 100 Pa), wall mount.
MS-821-LCDDifferential pressure transmitter, 5V output, 12V input, selectable range ±0.1", 0.25", 0.5" w.c. (±25, 50, 100 Pa), wall mount, with LCD.
MS-911Differential pressure transmitter, 5V output, 12V input, selectable range 1", 2", 5" w.c. (250, 500, 1250 Pa), wall mount.
MS-911-LCDDifferential pressure transmitter, 5V output, 12V input, selectable range 1", 2", 5" w.c. (250, 500, 1250 Pa), wall mount, with LCD.
MS-912Differential pressure transmitter, 5V output, 12V input, selectable range 1", 2", 5" w.c. (250, 500, 1250 Pa), duct mount.
MS-912-LCDMS-912 Differential pressure transmitter, 5V output, 12V input, selectable range 1", 2", 5" w.c. (250, 500, 1250 Pa), duct mount, with LCD.
MS-921Differential pressure transmitter, 5V output, 12V input, selectable range 0.1", 0.25", 0.5" w.c. (25, 50, 100 Pa), wall mount.
MS-921-LCDDifferential pressure transmitter, 5V output, 12V input, selectable range 0.1", 0.25", 0.5" w.c. (25, 50, 100 Pa), wall mount, with LCD.
MS-922Differential pressure transmitter, 5V output, 12V input, selectable range 0.1", 0.25", 0.5" w.c. (25, 50, 100 Pa), duct mount.
MS-922-LCDDifferential pressure transmitter, 5V output, 12V input, selectable range 0.1", 0.25", 0.5" w.c. (25, 50, 100 Pa), duct mount, with LCD.
