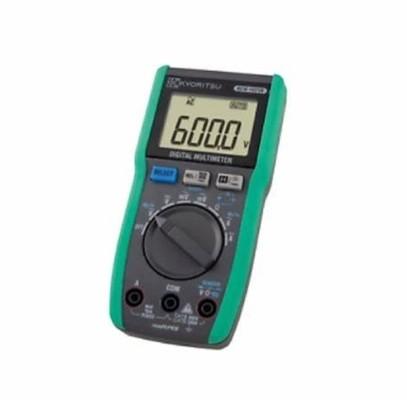

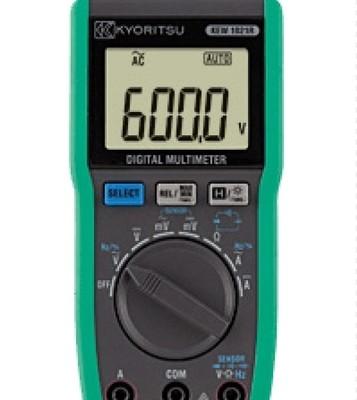

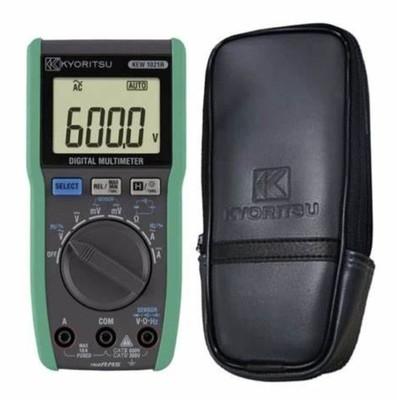

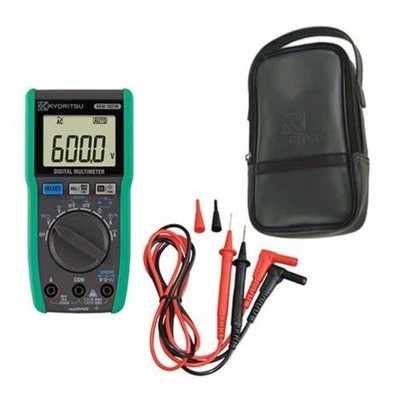

Kyoritsu 1021R Digital Multimeter For Diode Test Open-loop Voltage 3.0V Power Source R03 1.5V × 2
Kyoritsu 1021R Digital Multimeter For Diode Test Open-loop Voltage 3.0V Power Source R03 1.5V × 2
Kyoritsu 1021R Digital Multimeter For Diode Test Open-loop Voltage 3.0V Power Source R03 1.5V × 2
Kyoritsu 1021R Digital Multimeter For Diode Test Open-loop Voltage 3.0V Power Source R03 1.5V × 2
Kyoritsu 1021R Digital Multimeter For Diode Test Open-loop Voltage 3.0V Power Source R03 1.5V × 2
Kyoritsu 1021R Digital Multimeter For Diode Test Open-loop Voltage 3.0V Power Source R03 1.5V × 2
Kyoritsu 1021R Digital Multimeter For Diode Test Open-loop Voltage 3.0V Power Source R03 1.5V × 2
Kyoritsu 1021R Digital Multimeter For Diode Test Open-loop Voltage 3.0V Power Source R03 1.5V × 2
Specifications
Brand Name :
Kyoritsu
Model Number :
1021R
MOQ :
1PCS
Payment Terms :
L/C,D/A,D/P,T/T,Western Union,MoneyGram
Supply Ability :
1000 Piece/Pieces per Week negotiable
Delivery Time :
5-8 work days
Packaging Details :
each unit has individual box and all boxes are packed in standard packages or customers requests available
Certification :
CE
Diode Test :
Open-loop Voltage: < 3.0V
Power Source :
R03 (1.5V) × 2
Dimensions :
155(L) × 75(W) × 40(D)mm
DC MV :
600.0mV ±1.5%rdg ±3dgt
Highlight :
3.0V Power Source Digital Multimeter, Kyoritsu 1021R Digital Multimeter, Open-loop Voltage Digital Multimeter
Description

Kyoritsu 1021R Digital Multimeter For Diode Test Open-loop Voltage 3.0V Power Source R03 1.5V × 2

DC V 6.000/60.00/600.0V (auto range)
±0.5%rdg ±3dgt
DC mV 600.0mV
±1.5%rdg ±3dgt
DC Clamp Sensor 60.00/200.0A (auto range)
±1.5%rdg ±3dgt + Sensor accuracy
AC V 6.000/60.00/600.0V (auto range)
±1.0%rdg ±3dgt [40 - 500Hz]
AC mV 600.0mV
±2.0%rdg ±3dgt [40 - 500Hz]
AC Clamp Sensor 60.00/200.0A (auto range)
±2.0%rdg ±3dgt + Sensor accuracy [40 - 500Hz]
DC A 6.000/10.00A (auto range)
±1.5%rdg ±3dgt
AC A 6.000/10.00A (auto range)
±1.5%rdg ±3dgt[45 - 500Hz]
? 600.0?/6.000/60.00/600.0k?/6.000/40.00M? (auto range)
±0.5%rdg ±4dgt (600?),
±0.5%rdg ±2dgt (6/60/600k?/6M?)
±1.5%rdg ±3dgt (40M?)
Continuity buzzer 600? (Buzzer sounds below 90?)
Diode test Open-loop voltage: < 3.0V
Capacitance 60.00/600.0nF/6.000/60.00/600.0/1000碌F
±2.0%rdg ±5dgt (60/600nF)
±5.0%rdg ±5dgt (6/60/600/1000碌F)
Frequency ACV 99.99/999.9Hz/9.999/99.99kHz ±0.1%rdg ±3dgt
ACA 99.99/999.9Hz/9.999kHz ±0.1%rdg ±3dgt
DUTY 10.0 - 90.0% ±1.0%rdg ±3dgt [50/60Hz]
Applicable standards IEC 61010-1 CAT IV 300V / CAT III 600V / CAT II 1000V
IEC 61010-2-033, IEC 61010-031, IEC 61326-2-2 (EMC), EN 50581 (RoHS)
Power source R03 (1.5V) X 2
Dimensions 155(L) X 75(W) X 40(D)mm
Weight 250g Approx. (including batteries)
Included Accessories Wing-type holder, Flat-type holder, 7066A (Test leads),
8919 (Ceramic fuse [10A/600V]) X 1 (included),
9097 (Carrying case), R03 X 2, Instruction manual
Optional Accessories 7234 (Alligator clip), 8161 (AC clamp adaptor)
8115 (AC/DC clamp sensor), 9189 (Magnet hanger strap)

Kyoritsu 1021R Digital Multimeter For Diode Test Open-loop Voltage 3.0V Power Source R03 1.5V × 2
