Dwyer Series 2000 Magnehelic Differential Pressure Gage (Model 2300-60PA)
Dwyer Series 2000 Magnehelic Differential Pressure Gage (Model 2300-60PA)
Dwyer Series 2000 Magnehelic Differential Pressure Gage (Model 2300-60PA)
Dwyer Series 2000 Magnehelic Differential Pressure Gage (Model 2300-60PA)
Dwyer Series 2000 Magnehelic Differential Pressure Gage (Model 2300-60PA)
Dwyer Series 2000 Magnehelic Differential Pressure Gage (Model 2300-60PA)
Dwyer Series 2000 Magnehelic Differential Pressure Gage (Model 2300-60PA)
Dwyer Series 2000 Magnehelic Differential Pressure Gage (Model 2300-60PA)
Specifications
Warranty :
12months
Certification :
CE
Brand Name :
Dwyer
Weight :
0.5kgWarranty
Model Number :
0-60Pa
MOQ :
1PCS
Payment Terms :
L/C,D/A,D/P,T/T,Western Union,MoneyGram
Supply Ability :
1000 Piece/Pieces per Week negotiable
Delivery Time :
5-8 work days

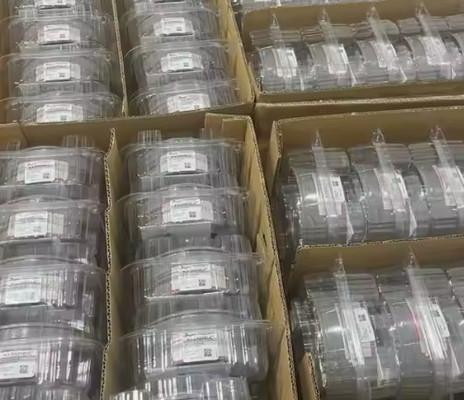

Packaging Details :
each unit has individual box and all boxes are packed in standard packages or customers requests available
Range :
2000-60pa
Accuracy :
0.0005
Description
Dwyer Series 2000 Magnehelic Differential Pressure Gage (Model 2300-60PA)
Attribute Value
Weight 0.5kg
Warranty 12 months
Brand Name Dwyer
Accuracy 0.0005
Range 2000-60pa

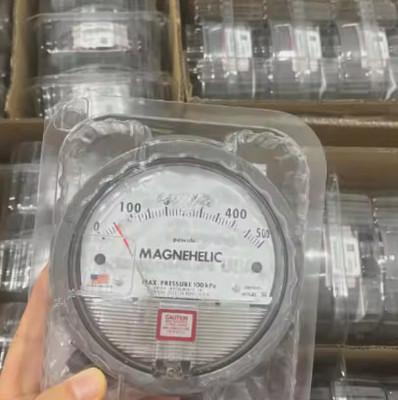

The Dwyer Series 2000 Magnehelic Differential Pressure Gage (Model 2300-60PA) is a versatile, low-cost solution for measuring positive, negative, or differential pressures in air and non-corrosive gas systems.
Dwyer Series 2000 Magnehelic Differential Pressure Gage (Model 2300-60PA)
Key Features
Precision Measurement:
  • Range: 30-0-30 Pa with 1.0 Pa minor divisions, calibrated for vertical scale position
  • Accuracy: ±2% of full scale (±1% with -HA high-accuracy option) at 70°F (21.1°C)
  • Measures positive, negative (vacuum), or differential pressures in air and non-corrosive gases
Durable & Rugged Design:
  • Die-cast aluminum case with iridite dip and baked gray finish, passing 168-hour salt spray tests
  • IP67 enclosure rating for weatherproofing and protection against dust/water immersion
  • Overpressure relief plug opens at ~25 psig (1.72 bar) to prevent damage (standard models)
Functional Versatility:
  • No power required, suitable for isolation/hospital environments and temporary units
  • 1/8" female NPT pressure taps (side and back) for flexible installation
  • Applications include filter monitoring, air velocity with Pitot tubes, blower vacuum, and room pressure indication
User-Friendly Design:
  • 4" diameter dial with clear acrylic cover for undistorted, far-viewing readability
  • Red-tipped aluminum pointer on a precision litho-printed scale
  • Zero adjustment screw accessible without removing the cover; O-ring sealed for pressure tightness
Technical Specifications:
  • Pressure limits: -20 in Hg to 15 psig (-0.677 to 1.034 bar); optional MP/HP up to 35/80 psig
  • Temperature range: 20-140°F (-6.67-60°C); -20°F (-28°C) with low-temperature option
  • Weight: 1 lb 2 oz (510 g); includes mounting adapters and plugs
Safety & Compliance:
  • Meets EU RoHS II Directive (2011/65/EU); explosion-proof options via Series AT-2000 for ATEX zones
  • Compatible with hydrogen when ordered with Buna-N diaphragm (pressures <35 psi)
