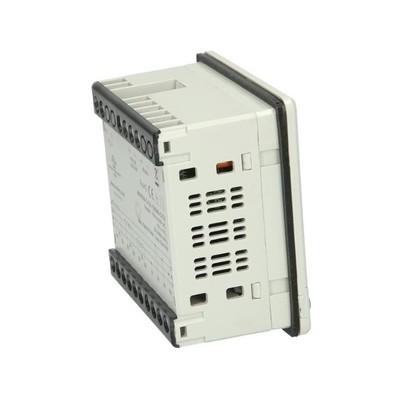

85 to 300V AC DC Digital Multifunction Meter Selec MFM384-C-CU-G
85 to 300V AC DC Digital Multifunction Meter Selec MFM384-C-CU-G
85 to 300V AC DC Digital Multifunction Meter Selec MFM384-C-CU-G
85 to 300V AC DC Digital Multifunction Meter Selec MFM384-C-CU-G
85 to 300V AC DC Digital Multifunction Meter Selec MFM384-C-CU-G
85 to 300V AC DC Digital Multifunction Meter Selec MFM384-C-CU-G
85 to 300V AC DC Digital Multifunction Meter Selec MFM384-C-CU-G
85 to 300V AC DC Digital Multifunction Meter Selec MFM384-C-CU-G
Specifications
Brand Name :
Selec
MOQ :
1PCS
Payment Terms :
L/C,D/A,D/P,T/T,Western Union,MoneyGram
Supply Ability :
1000 Piece/Pieces per Week negotiable
Delivery Time :
5-8 work days
Packaging Details :
each unit has individual box and all boxes are packed in standard packages or customers requests available
Certification :
CE, RoHS, UL & MID
Supply Voltage :
85 To 300V AC / DC (45/65Hz)
Size :
96 X 96mm
Mounting Type :
Panel Mount
Highlight :
300V AC DC Digital Multifunction Meter, Selec MFM384-C-CU-G
Description

85 to 300V AC DC Digital Multifunction Meter Selec MFM384-C-CU-G

Display Type LCD with Backlight, Bar graph Representation for Current
Display Configuration 4 Rows of 4 Digits, 1 Row of 8 Digits
Electrical Connection 3Ø - 3W, 3Ø - 4W, 2Ø - 3W, 1Ø - 2W
Type of Output Pulse Output
Features %THD upto 31st Level, Max / Min Demand (Power), Max Demand Current, Phase Sequence Detection
Communication Protocol RS485 and MODBUS RTU
CT Primary 1 / 5 A to 10 kA (Programmable for Any Value)
CT Secondary 1 / 5 A ( Programmable )
PT Primary 100 V to 500 kV (Programmable for Any Value)
PT Secondary 100 to 500V AC (L - L) (Programmable for any value)
Rated Input Current Nominal 5A AC (Min – 11mA; Max – 6A)
Supply Voltage 85 to 300V AC / DC (45/65Hz)
Size 96 x 96mm
Mounting Type Panel Mount
Certification CE, RoHS, UL & MID


Type Energy Monitor
Measuring Type Current, Voltage, Wattage
Measuring Range -
Display Type LCD - Black Characters, Backlight
Number of Characters Per Row 4, 4, 4, 4, 8
Display Characters - Height 0.450" (11.43mm)
Output Type -
Voltage - Supply 100 ~ 240VAC
Panel Cutout Dimensions Square - 91.50mm x 91.50mm
Mounting Type Panel Mount
Termination Style Screw Terminal
Ingress Protection IP54 - Dust Protected, Water Resistant
Features -
Operating Temperature -10°C ~ 55°C
Weight -
Base Product Number MFM384


realtime conditions. Input Specifications: Electrical Connection 3Ø-3/4 wire, 2Ø-3 wire, 1Ø-2 wire Input Voltage Range 11 to 300V AC, (Phase to Neutral) 19 to 519V AC, (Phase to Phase) Input Current Range Nominal 5A AC (Min-11mA, Max-6A) Frequency 45Hz - 65Hz Display Scrolling Automatic / manual Power Consumption 8VA Max Display Reset Programmable (For energy) Memory Retention 10 years (For energy) Measuring Parameters Voltage (L-L / L-N) (Individual / Average) Current (I1, I2, I3) (Individual / Average) Frequency, Power Factor (Individual / Total) Active, Reactive & Apparent power (Individual / Total), Active, Reactive & Apparent Energy (Total), Demand (Min / Max Active Power, Min / Max Reactive Power, Max Apparent Power), Max Demand Current, Neutral Current, Phase Sequence Detection. Output Specifications: Pulse Output Voltage Range - External 24V DCmax Current Capacity - 100mA max ± Pulse Width 100 ms 5 ms Communication Interface RS485 and MODBUS RTU
