IFM Differential Pressure Sensor The Perfect Solution for Pneumatic Devices 0-10V Output
IFM Differential Pressure Sensor The Perfect Solution for Pneumatic Devices 0-10V Output
IFM Differential Pressure Sensor The Perfect Solution for Pneumatic Devices 0-10V Output
IFM Differential Pressure Sensor The Perfect Solution for Pneumatic Devices 0-10V Output
IFM Differential Pressure Sensor The Perfect Solution for Pneumatic Devices 0-10V Output
IFM Differential Pressure Sensor The Perfect Solution for Pneumatic Devices 0-10V Output
IFM Differential Pressure Sensor The Perfect Solution for Pneumatic Devices 0-10V Output
IFM Differential Pressure Sensor The Perfect Solution for Pneumatic Devices 0-10V Output
Specifications
Brand Name :
IFM
Model Number :
PQ3834
Certification :
CE
Payment Terms :
L/C,D/A,D/P,T/T,Western Union,MoneyGram
Supply Ability :
1000 Piece/Pieces per Week negotiable
Delivery Time :
5-8 work days
Packaging Details :
each unit has individual box and all boxes are packed in standard packages or customers requests available
Usage :
PRESSURE SENSOR
Output :
4-20mA, 0-10V, 0-5V
Storage Temperature [°C :
8
Highlight :
IFM Differential Pressure Sensor, Pneumatic Devices IFM Pressure Sensor, PQ3834 Differential Pressure Sensor
Description

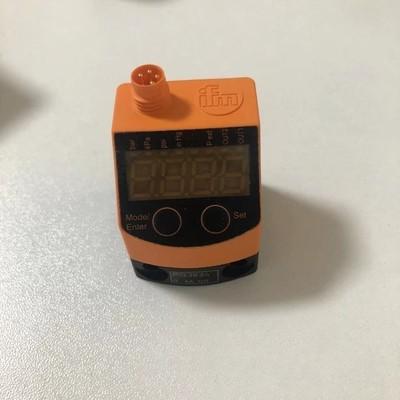

IFM PQ3834 Pressure Sensor for Pneumatic Devices

Product Introduction

The IFM PQ3834 is a robust pressure sensor engineered for reliable monitoring of system pressure in pneumatic and compressed air systems. With a measurement range of -1 to 10 bar (-15 to 145 psi), it withstands extreme overpressure (30 bar burst pressure) and vacuum (-1000 mbar), ensuring durability in harsh industrial environments. The sensor features a tilted LED display with red/green indication for quick pressure range verification, along with programmable switching and analog outputs for versatile integration into control systems.

IFM Differential Pressure Sensor The Perfect Solution for Pneumatic Devices 0-10V OutputIFM Differential Pressure Sensor The Perfect Solution for Pneumatic Devices 0-10V Output

Product Features

Wide Measurement Range:

-1 to 10 bar (-15 to 145 psi / -30 to 296 inHg / -100 to 1000 kPa) for flexible pneumatic system monitoring.

Extreme Pressure Resistance:

Burst pressure: 30 bar (435 psi), overpressure tolerance: 12 bar (174 psi), vacuum resistance: -1000 mbar.

Visual Indication System:

Tilted LED display with red/green color coding to identify acceptable pressure ranges at a glance.

Dual Output Capability:

1 programmable switching output and 1 analog output (configurable for industrial control systems).

Industrial Compatibility:

Gold-plated contacts for reliable electrical connections in harsh environments.

Media temperature range: 0–60°C, suitable for compressed air and pneumatic fluids.

Electrical Specifications:

Operating voltage: 18–32 V DC (SELV/PELV compliant), current draw: <50 mA.

Inverse and overvoltage protection (<40 V) for system safety.

Mounting & Interface:

Threaded connections: G 1/8" internal thread and M5 internal thread for versatile installation.
