IP68 Rated Ultrasonic Flow Gauge Ultrasonic Flow Meter POM Sensor Material And ABS Split Shell Material

Specifications

Brand Name :

Kacise

Model Number :

KDF1100

Place of Origin :

China (Mainland)

Certification :

certificate of explosion-proof, CE

MOQ :

1pcs

Payment Terms :

T/T, Western Union, MoneyGram

Supply Ability :

1000 Pieces per Week

Delivery Time :

5-8 work days

Packaging Details :

each unit has individual box and all boxes are packed in standard packages or customers requests available

Sensor protection level :

IP68

Communicating Protocol :

Modbus Protocol, RS485

Split shell material :

ABS

Transmitter protection level :

IP65

sensor material :

POM

Power supply :

10.8VDC～26.4VDC

Flow resolution :

0.0001L/s

Flow range :

1L/s~99999.99m3/h

Description

1.Introduction

1.1 Measuring principle

The ultrasonic Doppler flowmeter is a host that collects the flow velocity, water level and temperature of the ultrasonic Doppler flowmeter through RS485, and inputs various channel parameters according to the actual situation on site. The water flow area S (㎡) is calculated using the channel parameters and the collected water level H (m), and the instantaneous flow rate (Q=V*S) is calculated by multiplying the water flow area and the flow velocity V (m/s), and the cumulative flow rate is calculated by multiplying the flow rate by the cumulative time.

From this we can know:Q=V*S

Instantaneous flow rate * time difference = cumulative flow rate

1.2 Composition

KDF1000 series flow meter is a product that measures the velocity and flow of water in natural waters, channels, or pipelines.

The flow meter is divided into two parts: the sensor and the host, which are connected by a cable.

It can measure the speed and flow of water in channels and rivers, and the water level is more than 20 cm higher than the top of the sensor.

It can measure the speed and flow of water in pipes and culverts. The water level must be more than 20 cm higher than the top of the sensor, and the inner diameter of the pipe must be ≥ 500 mm.

2.Technical Specifications

Power supply	Power supply range: 10.8VDC～26.4VDC; RS485 12V power consumption: 88mA±1mA (about 1.06W) RS485 24V power consumption: 52mA±1mA (about 1.25W) RS485+4～20mA 12V power consumption: 110 mA±1mA (about 1.32W) RS485+4～20mA 24V power consumption: 24V power supply without mA output
Output characteristics	RS485/ModBus standard protocol; 4~20mA (factory default without)
Measurement performance	Flow range: 1L/s~99999.99m3/h; Water depth range: 0.02~3m, 0.02~10m (please confirm the maximum water depth before ordering); Display interface 1: water level, instantaneous flow, cumulative flow; Display interface 2: water level, flow rate, cross-sectional area, temperature; Flow resolution: 0.0001L/s.
Physical properties	Split shell material: ABS, sensor material: POM; Sensor protection level: IP68; Transmitter protection level: IP65; Cable between sensor: 4-core shielded cable with air duct, factory default length 10 meters, wire diameter 8mm (other wire lengths need to be customized).
Working environment	Working temperature: 0～60℃ (non-freezing state); Storage temperature: -20～80℃;

3.Dimensions

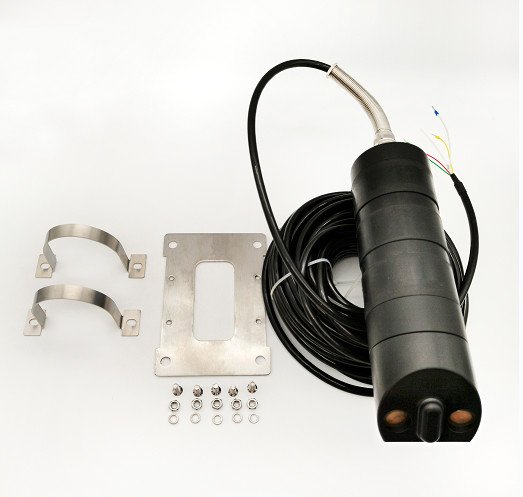

3.1 Product picture
