KWS3200 Digital Residual Chlorine Water Quality Sensor Pool Monitoring,Output MODBUS RTU
KWS3200 Digital Residual Chlorine Water Quality Sensor Pool Monitoring,Output MODBUS RTU
KWS3200 Digital Residual Chlorine Water Quality Sensor Pool Monitoring,Output MODBUS RTU
KWS3200 Digital Residual Chlorine Water Quality Sensor Pool Monitoring,Output MODBUS RTU
Specifications
Brand Name :
KACISE
Model Number :
KWS3200
Certification :
certificate of explosion-proof, CE
Place of Origin :
China (Mainland)
MOQ :
1pcs
Payment Terms :
T/T, Western Union, MoneyGram
Supply Ability :
1000 Pieces per Week
Delivery Time :
5-8 work days
Packaging Details :
each unit has individual box and all boxes are packed in standard packages or customers requests available
Measurement :
Residual chlorine in water
Measurement range :
0-2ppm/20ppm
Resolution :
0.01ppm
Accuracy :
±5%F.S
Repeatability :
±5%F.S
Housing material :
Glass
Power supply :
12~24VDC
Output :
MODBUS RTU
Analog interface :
4-20mA
Description

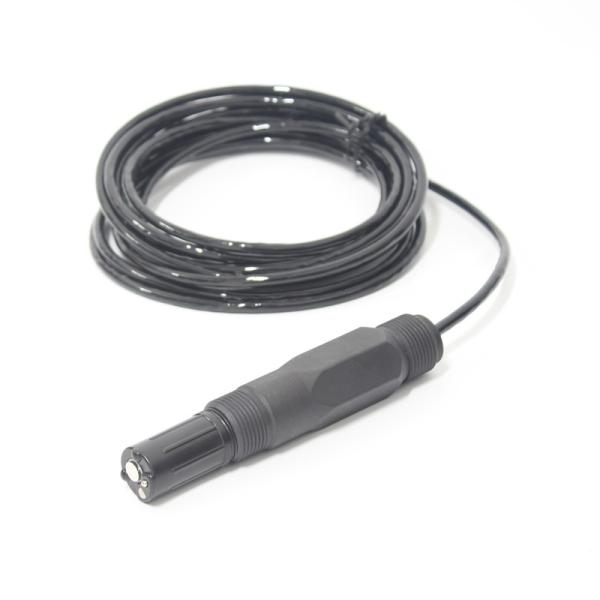

KWS3200 Digital Residual Chlorine Water Quality Sensor

Introduction

The online residual chlorine sensor is an online digital sensor with a built-in microprocessor. It can be widely used in catering,bottling, drinking water, sewage, scrubbers, pulp and paper, reverse osmosis systems, swimming pools, treatment pools, aquariums, etc.

KWS3200 Digital Residual Chlorine Water Quality Sensor Pool Monitoring,Output MODBUS RTU

Feature

  • Equipped with membraneless three-electrode residual chlorine electrode, accurate measurement. Can be compared with DPD method
  • The measured value is not affected by low temperature or turbidity
  • Output standard RS485 MODBUS RTU
  • Simple and reliable, can be used without instrument
  • Resistance to harsh mechanical environment
  • Digital interface mode

Communication mode: RS485 interface*1

Communication rate: 4800/9600 (default)/14400/19200 optional

Communication protocol: Modbus-RTU protocol (03,06,0x10 support commands)

Technical Specifications

Measurement Residual chlorine in water
Measurement range 0-2ppm/20ppm
Resolution 0.01ppm
Accuracy ±5%F.S
Repeatability 1%F.S
Housing material Glass
Power supply 12~24VDC
Output MODBUS RTU
Analog interface 4-20mA

Application

  • Pool monitoring
  • Aquaculture
  • Water quality testing
  • Informatization data collection
  • Internet of Things water quality testing

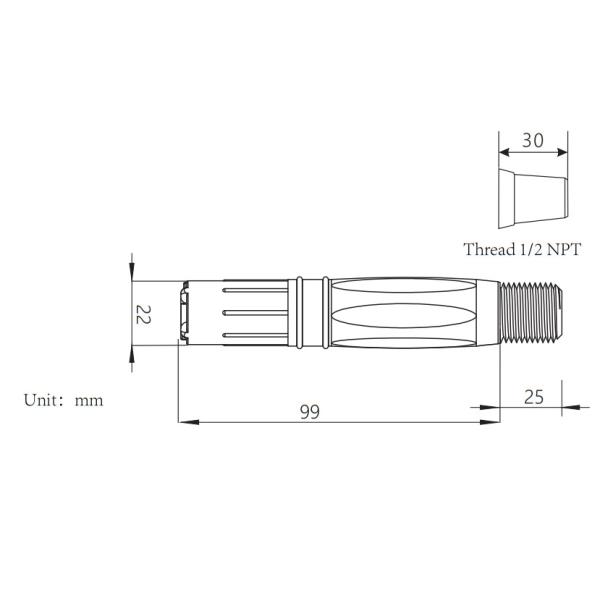

Dimensions

KWS3200 Digital Residual Chlorine Water Quality Sensor Pool Monitoring,Output MODBUS RTU

FAQ

1.Q: May I put my own logo on the product?

A: Sure. Logo can be printed on the housing, and company name can be engraved on the nameplate.

2.Q: How about the quality control?

A: All products will be tested for 3 times before packed.

3.Q: May I release trial order, 1 pc for example?

A: Certainly, trial order is acceptable. In general, we have common models in stock. Sample will be sent within 1 week, after payment is received.

4.Q: Could you design according to my requirements?

A: Of course, our team will design for you, to make our milk flow meter work perfectly at your end.

Company Information

KWS3200 Digital Residual Chlorine Water Quality Sensor Pool Monitoring,Output MODBUS RTU

Xi'an Kacise is certified by ISO 9001-2008, GJB 9001B-2009, CE, intrinsic safety explosion-proof and isolated safety explosion-proof, etc. which assure our products are conform to the international standards.

We have been specializing in manufacturing pressure, level and flow measuring instruments and related products for 10 years. We have experienced technical and management personnel, through the efforts of our entire staff, we have become a professional measuring instrument manufacturer and solution provider. And we are continuously trying to improve product quality.

Currently, Kacise sensor is already exported to America, Spain, Australia, Chile and 20 other countries and regions, and received many favorable feedbacks. Our overseas distributers are also increasing. We regards “reasonable prices, efficient production time and good after-sales service” as our tenet, and hope to cooperate with more customers for mutual development.
