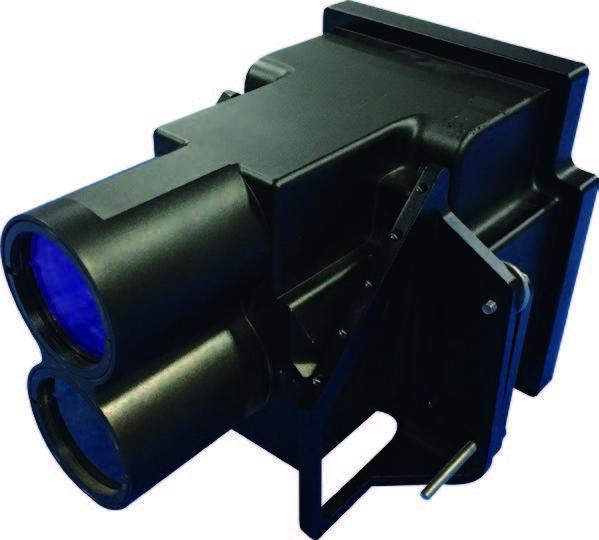

AI vision inertial navigation system for aircraft lifting assistance with weight ≤2.0kg
AI vision inertial navigation system for aircraft lifting assistance with weight ≤2.0kg
AI vision inertial navigation system for aircraft lifting assistance with weight ≤2.0kg
AI vision inertial navigation system for aircraft lifting assistance with weight ≤2.0kg
Specifications
Brand Name :
Kacise
Model Number :
KsINS-02
Place of Origin :
China (Mainland)
Certification :
certificate of explosion-proof, CE
MOQ :
1pcs
Packaging Details :
each unit has individual box and all boxes are packed in standard packages or customers requests available
Delivery Time :
5-8 working days
Payment Terms :
T/T, Western Union, MoneyGram
Supply Ability :
1000 Pieces per Week
Field of view(infrared) :
35.83°×27.26°
Storage temperature :
-45℃ ~+65℃
Length*width*height :
179mm×140mm×126mm
weight :
≤2.0kg
Power Requirement :
28V, Adjustable Range 24V~36V
Navigation accuracy (landing) :
1.0m+1‰D
System preparation :
Static Base Alignment, Alignment Time 5 Minutes
Navigation accuracy (cruise) :
20m+1%H
Description

Product Description:

Functioning as an airborne inertial visual navigation product, KsINS-02 is primarily comprised of inertial navigation, visible light camera, infrared camera, and an AI data processing circuit. Drawing on the principles of optical imaging and inertial measurement, it equips UAVs with a wealth of information, including inertial/visual combined attitude, speed, position, angular velocity, acceleration, and more. The integration of artificial intelligence technology introduces groundbreaking advancements in image and video recognition to the realm of drone navigation. Through the amalgamation of inertial/machine vision multi-information, it achieves high-precision real-time measurement of aircraft motion parameters, negating the need for satellite reliance. Under these circumstances, it presents a comprehensive solution for autonomous guidance and navigation across the entire mission profile, covering takeoff, cruising, and landing.

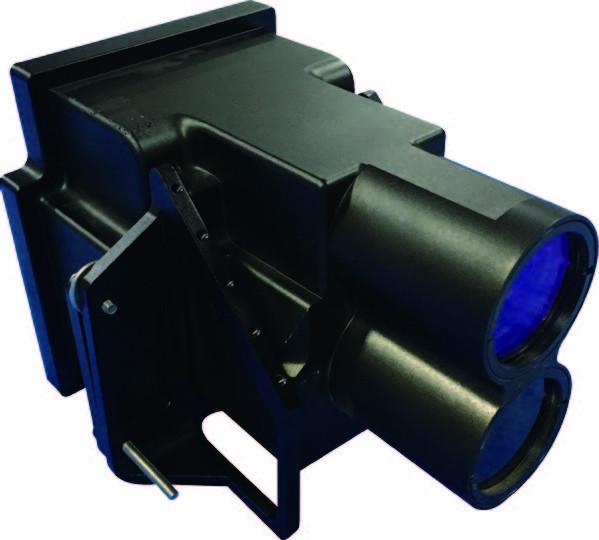

AI vision inertial navigation system for aircraft lifting assistance with weight ≤2.0kg

Features:

● Provide autonomous navigation information for the entire mission profile of UAV take-off, cruise and landing

● Autonomous recognition of airport runways all day and night based on AI, adaptable to emergency landings at unfamiliar airports

● Front view and downward view can be installed flexibly and can be expanded to receive image information of loads such as pods.

● Suitable for Gobi, desert, mountain, city and other scenes

● Does not rely on satellites and dedicated pre-made maps

Product advantages:

● Integrated design of imaging and navigation

● Strong adaptability to the airborne environment

● High-precision inertial/visual information fusion

● Visible light and infrared images are fused and output as SDI standard video

● Target detection results are displayed in real time

Technical Parameters:

Performance indicators :

take off Cruise section Take-off and landing stage
Action range Before leaving the ground 1km~8km (relative altitude) The forward distance is 5km~ Stop (the runway width is not less than 45m)
Navigation accuracy 1.0m(1σ,lateral accuracy) 20m+1%H (1σ, horizontal positioning accuracy,H is the height of the aircraft relative to the ground) 1.0m+1‰ D (1σ, lateral accuracy, D is horizontal distance between the aircraft and the runway endpoint)

Application environment :

Operating temperature -40℃ ~+60℃
Storage temperature -45℃ ~+65℃
System preparation

static base alignment,

Alignment time 5 minutes
Field of view visible light 57.80°×34.50°
infrared 35.83°×27.26°

Physical properties:

Length*width*height 179mm×140mm×126mm
weight ≤ 2.0kg
Front view installation dimensions 10-M3×8mm threaded hole
Installation dimensions as viewed from below 4-M4×8mm threaded hole

External Interface:

Power Requirement 28V, adjustable range 24V~36V
Power consumption ≤ 40W

Electrical Interface

 user connector F104Z19K092-140, realizing power supply and communication
Debug connector F104Z19K086-240, realize software upgrade
2-way standard SMA connector 1920×1080@30Hz format SDI video output

Communication Interface

 RS422 serial port Inertial navigation information input 200Hz
RS422 serial port Flight control command input 5Hz
Inertial/visual integrated navigation information output 100Hz

Support and Services:

We provide a comprehensive technical support package that includes installation and troubleshooting help, as well as product updates and upgrades. Our team is available to assist you with any issues you may encounter with the product, from installation to use.

We also offer a range of service options, from onsite service to remote access. We are committed to providing you with the highest level of customer service and satisfaction.

Packing and Shipping:

Packaging and Shipping for inertial navigation system:

Packaging: The inertial navigation system will be securely packaged in a box with protective foam to ensure safe arrival.

Shipping: The inertial navigation system will be shipped via a reliable shipping service with tracking information and insurance.
