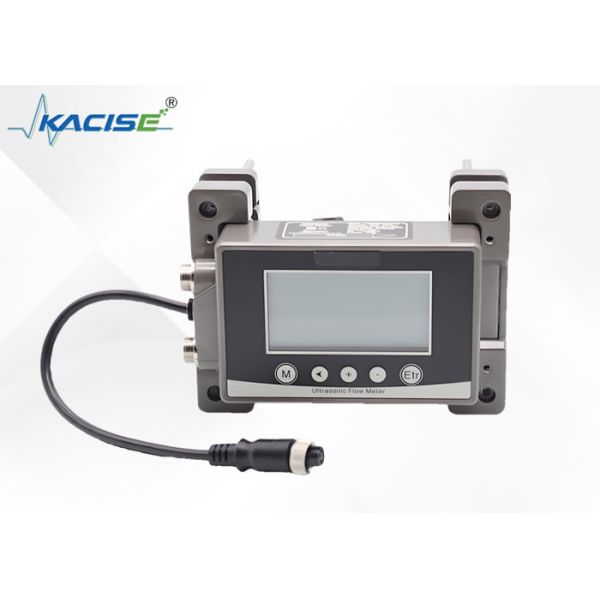

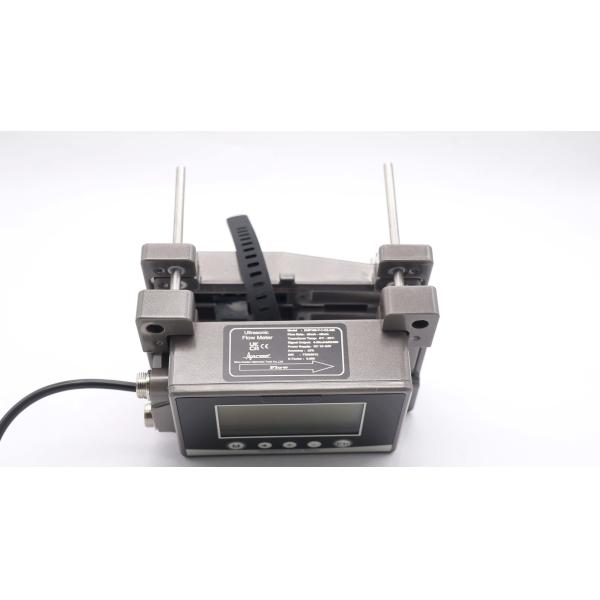

KUF100 Ultrasonic Flow Meter with 4-20mA Output, Industrial Plastic Material, and 256*128 Backlit LCD Display
KUF100 Ultrasonic Flow Meter with 4-20mA Output, Industrial Plastic Material, and 256*128 Backlit LCD Display
KUF100 Ultrasonic Flow Meter with 4-20mA Output, Industrial Plastic Material, and 256*128 Backlit LCD Display
KUF100 Ultrasonic Flow Meter with 4-20mA Output, Industrial Plastic Material, and 256*128 Backlit LCD Display
KUF100 Ultrasonic Flow Meter with 4-20mA Output, Industrial Plastic Material, and 256*128 Backlit LCD Display
KUF100 Ultrasonic Flow Meter with 4-20mA Output, Industrial Plastic Material, and 256*128 Backlit LCD Display
Specifications
Brand Name :
Kacise
Model Number :
KUF100
Certification :
certificate of explosion-proof, CE
Place of Origin :
China (Mainland)
MOQ :
1pcs
Payment Terms :
T/T,Western Union,MoneyGram
Supply Ability :
1000 Pieces per Week
Delivery Time :
5-8 working days
Packaging Details :
each unit has individual box and all boxes are packed in standard packages or customers requests available
Default Low Flow Cutoff :
0.1m/s
Display Method :
256*128 backlit LCD
Response Time :
0.5~60s
Data Storage Period :
300 milliseconds
Output :
4-20mA
Electric Power :
＜3W
Power Supply :
10-24V VDC
Protection Level :
IP65
Ambient Temperature :
-10 to 60°C (no freezing)
Meter Material :
aluminum alloy, industrial plastic
Description
Introduction

The KUF100 ultrasonic flowmeter operates using the time difference method. It sends and receives ultrasonic signals through the fluid and calculates the flow rate by measuring the difference in the propagation time of these signals in the downstream and upstream directions. This method enables precise measurement of fluids with suspended particles or bubbles and is not influenced by the fluid's conductivity.

Feature
  • Simple installation and convenient operation. There is no need to break the pipe or stop for a long time for construction, and the installation can be easily completed within a few minutes.
  • It adopts a new clamp-on design without touching the measuring medium. It can avoid pressure loss and medium pollution caused by traditional flowmeters.
  • A variety of modes can be set, flexible and diverse.
  • A set of machines can be used for all diameters within the measuring range, and is suitable for various metal pipes and resin pipes.
  • Super large screen display. The display content is diverse and man-machine friendly.
  • It can be selected as an ultrasonic cold (heat) meter to realize the monitoring and measurement of energy consumption.
Technical Specifications
Supported Pipe Materials stainless steel, iron, brass, aluminum, PVC, PP, PVDF and other rigid plastic pipes
Supported Liquid Medium Water or other (single without solid particles and impurities)
Supported Medium Temperature 0-75°C (no freezing on the surface, high temp, version customizable)
Default Low Flow Cutoff 0.1m/s
Display Method 256*128 backlit LCD
Response Time 0.5~60s
Accuracy Class ±2%, up to ±1% after calibration
Data Storage Period 300 milliseconds
Memory Backup EEPROM (data storage length: more than 10 years, data read/write frequency: more than 1 million times)
Power And I/O Connectors M12 aviation plug
Output 4-20mA
Communication Modbus RS485
Optional Output OCT (pulse output) / one relay alarm
Power Supply 10-24V VDC
Electric Power ＜3W
Circuit Protection Power reverse protection, power surge protection
Each output short-circuit protection, each output surge protection
Protection Level IP65
Ambient Temperature -10 to 60°C (no freezing)
Relative Humidity 35 to 85% RH (non-condensing)
Vibration Resistance 10 to 55 Hz, double amplitude 1.5mm, 2 hours each for XYZ axes
Impact Resistance 100m/s2 16 ms pulse, X, Y, Z axis each 1000 times
Meter Material aluminum alloy, industrial plastic
Cable Length Standard 2 meters, (PT1000 standard 9 meters)
Flow Range
Pipe diameter Upper limit flow value ( L/min )
15 60 L/min
20 100 L/min
25 200 L/min
32 300 L/min
40 400 L/min
50 600 L/min
65 1000 L/min

Note: The smallest pipe section that can be measured has an inner diameter of 12mm or larger.

Dimensions

KUF100 Ultrasonic Flow Meter with 4-20mA Output, Industrial Plastic Material, and 256*128 Backlit LCD Display

DN15-40

KUF100 Ultrasonic Flow Meter with 4-20mA Output, Industrial Plastic Material, and 256*128 Backlit LCD Display

DN50-65

Ultrasonic Cold (Heat) Meter

KUF100 Ultrasonic Flow Meter with 4-20mA Output, Industrial Plastic Material, and 256*128 Backlit LCD Display
