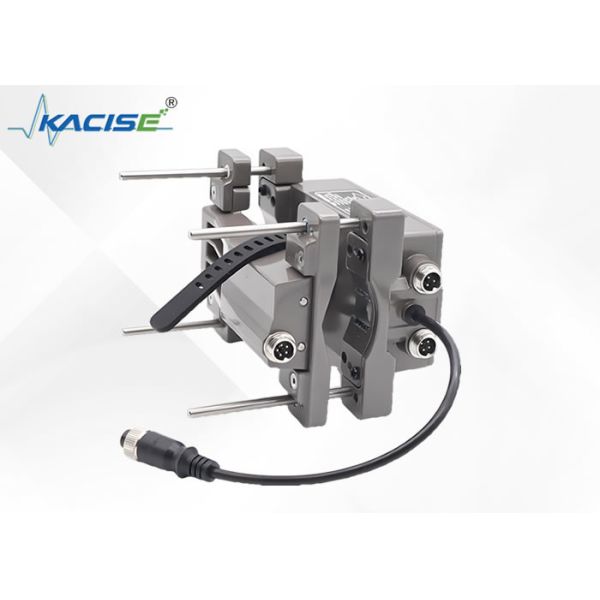

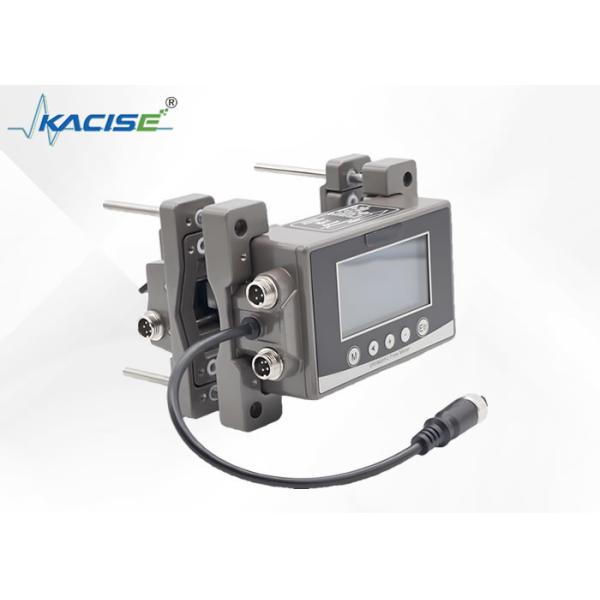

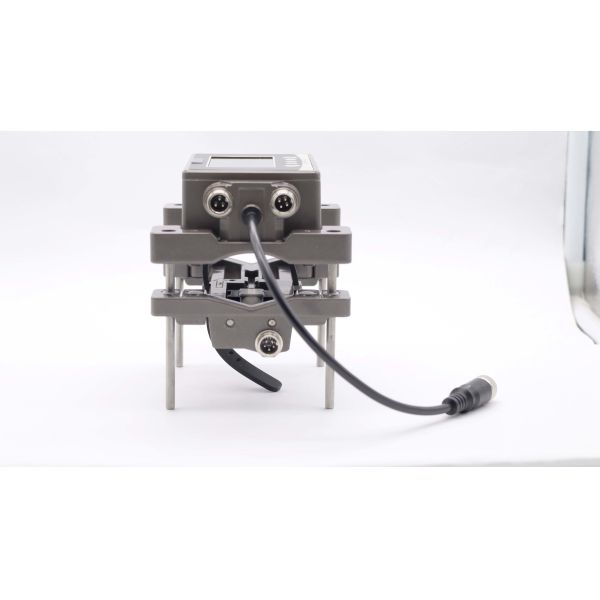

Modbus RS485 Communication Ultrasonic Flow Meter with Clamp-On Design and 256*128 Backlit LCD
Modbus RS485 Communication Ultrasonic Flow Meter with Clamp-On Design and 256*128 Backlit LCD
Modbus RS485 Communication Ultrasonic Flow Meter with Clamp-On Design and 256*128 Backlit LCD
Modbus RS485 Communication Ultrasonic Flow Meter with Clamp-On Design and 256*128 Backlit LCD
Modbus RS485 Communication Ultrasonic Flow Meter with Clamp-On Design and 256*128 Backlit LCD
Modbus RS485 Communication Ultrasonic Flow Meter with Clamp-On Design and 256*128 Backlit LCD
Modbus RS485 Communication Ultrasonic Flow Meter with Clamp-On Design and 256*128 Backlit LCD
Modbus RS485 Communication Ultrasonic Flow Meter with Clamp-On Design and 256*128 Backlit LCD
Specifications
Brand Name :
Kacise
Model Number :
KUF100
Certification :
certificate of explosion-proof, CE
Place of Origin :
China (Mainland)
MOQ :
1pcs
Payment Terms :
T/T,Western Union,MoneyGram
Supply Ability :
1000 Pieces per Week
Delivery Time :
5-8 working days
Packaging Details :
each unit has individual box and all boxes are packed in standard packages or customers requests available
Supported Medium Temperature :
0-75°C
Supported Liquid Medium :
Water or other
Default Low Flow Cutoff :
0.1m/s
Display Method :
256*128 backlit LCD
Response Time :
0.5~60s
Accuracy Class :
±2%, up to ±1% after calibration
Data Storage Period :
300 milliseconds
Power And I/O Connectors :
M12 aviation plu
Output :
4-20mA
Communication :
Modbus RS485
Description
Modbus RS485 Communication Ultrasonic Flow Meter for Water or Other Liquid Medium
Introduction

The KUF100 ultrasonic flow meter works based on the time difference method. It transmits and receives ultrasonic signals in the fluid, and uses the difference in ultrasonic propagation time in the downstream and upstream directions to calculate the flow rate, thereby further obtaining the flow value. The advantage of this method is that it can accurately measure liquids containing suspended particles or bubbles and is not affected by the fluid conductivity.

Feature
  • Simple installation and convenient operation. There is no need to break the pipe or stop for a long time for construction, and the installation can be easily completed within a few minutes.
  • It adopts a new clamp-on design without touching the measuring medium. It can avoid pressure loss and medium pollution caused by traditional flowmeters.
  • A variety of modes can be set, flexible and diverse.
  • A set of machines can be used for all diameters within the measuring range, and is suitable for various metal pipes and resin pipes.
  • Super large screen display. The display content is diverse and man-machine friendly.
  • It can be selected as an ultrasonic cold (heat) meter to realize the monitoring and measurement of energy consumption.
Technical Specifications
Supported Pipe Materialsstainless steel, iron, brass, aluminum, PVC, PP, PVDF and other rigid plastic pipes
Supported Liquid MediumWater or other (single without solid particles and impurities)
Supported Medium Temperature0-75°C (no freezing on the surface, high temp, version customizable)
Default Low Flow Cutoff0.1m/s
Display Method256*128 backlit LCD
Response Time0.5~60s
Accuracy Class±2%, up to ±1% after calibration
Data Storage Period300 milliseconds
Memory BackupEEPROM (data storage length: more than 10 years, data read/write frequency: more than 1 million times)
Power And I/O ConnectorsM12 aviation plug
Output4-20mA
CommunicationModbus RS485
Optional OutputOCT (pulse output) / one relay alarm
Power Supply10-24V VDC
Electric Power＜3W
Circuit ProtectionPower reverse protection, power surge protection
Each output short-circuit protection, each output surge protection
Protection LevelIP65
Ambient Temperature-10 to 60°C (no freezing)
Relative Humidity35 to 85% RH (non-condensing)
Vibration Resistance10 to 55 Hz, double amplitude 1.5mm, 2 hours each for XYZ axes
Impact Resistance100m/s2 16 ms pulse, X, Y, Z axis each 1000 times
Meter Materialaluminum alloy, industrial plastic
Cable LengthStandard 2 meters, (PT1000 standard 9 meters)
Flow Range
Pipe diameterUpper limit flow value ( L/min )
1560 L/min
20100 L/min
25200 L/min
32300 L/min
40400 L/min
50600 L/min
651000 L/min

Tip: The inner diameter of the smallest measurable pipe section is greater than or equal to 12mm.

Dimensions

Modbus RS485 Communication Ultrasonic Flow Meter with Clamp-On Design and 256*128 Backlit LCD

DN15-40
Modbus RS485 Communication Ultrasonic Flow Meter with Clamp-On Design and 256*128 Backlit LCD

DN50-65

Ultrasonic Cold (Heat) Meter

Modbus RS485 Communication Ultrasonic Flow Meter with Clamp-On Design and 256*128 Backlit LCD

Ordering Information
CodeDefinition
Pipe diameter: DN15-DN65mm
Range: 0.03m/s-10m/s
Accuracy: ±2% (1% after calibration)
Measurement medium: water/other (single without solid particles and impurities)
Power supply: 10~24VDC/1A
Sensor operating temperature: 0-115℃;
Other: 2 meters of cable as standard
Heat meter: with a pair of PT1000 temperature sensors; one end of the temperature sensor is on the meter, and the other end of the cable is standard 9m
Pipe Diameter
SDN15-DN40
TDN50-DN65
Meter Type
1Ultrasonic flow meter
2Ultrasonic cold (heat) meter
Sensor Type
C20-65°C
C2U0-115°C
Output (can choose two out of four)
A4-20mA
MModbus
OOCT (Frequency)
R1 Relay
PT1000 Temperature Sensor Cable Length
PTemperature sensor cable length at the other end 9m
P(15)Temperature sensor cable length at the other end 15m
P(25)Temperature sensor cable length at the other end 25m

Example:

  • KUF100-S-1-C2-AM

ultrasonic flowmeter, range DN15-DN40, temp. range 0-65℃, with 4-20mA and RS485 output, standard cable length 2m.

  • KUF100-S-2-C2U-AM-P

ultrasonic cold (hot) meter, range DN15-DN40, temp. range 0-115℃, with 4-20mA and RS485 output, standard cable length 2m; with a pair of PT1000 temperature sensors; one end of the temperature sensor is on the meter, and the other end of the cable is standard 9m
Appendix:KUF100 Clamp On Ultrasonic Flow Meter Datasheet_v1...
