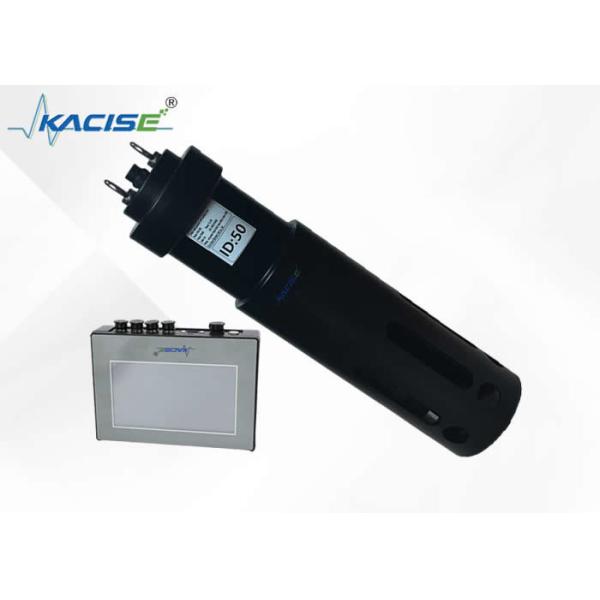

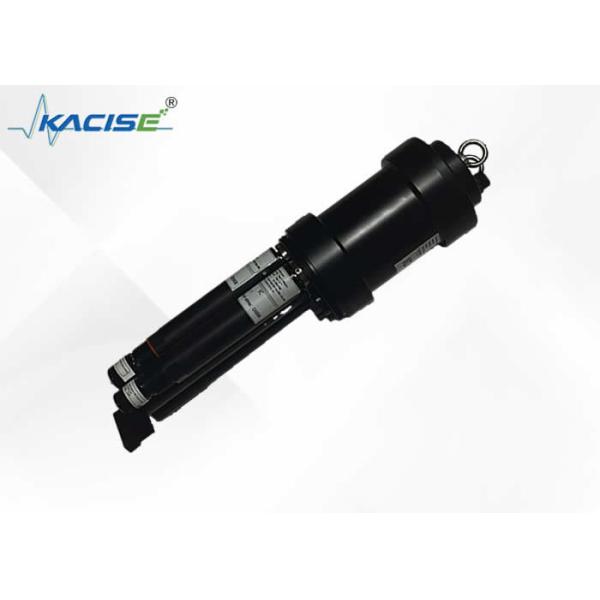

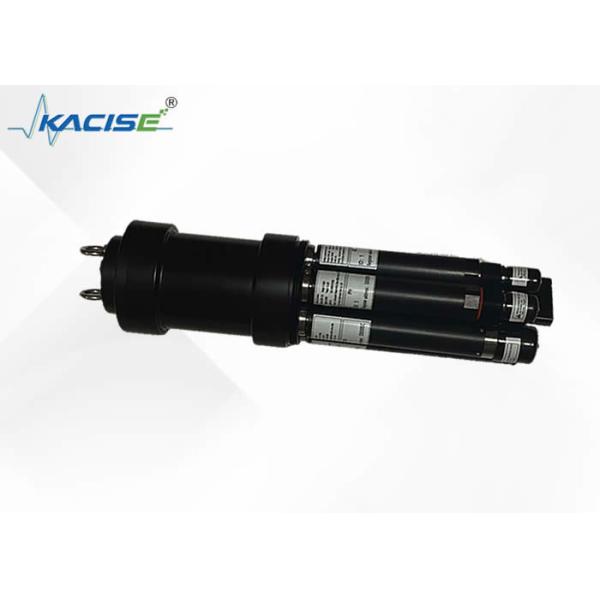

KWS-850 Online Multi-Parameter Water Quality Sensor with RS-485 Modbus/RTU, Automatic Cleaning, and ±0.1pH Accuracy
KWS-850 Online Multi-Parameter Water Quality Sensor with RS-485 Modbus/RTU, Automatic Cleaning, and ±0.1pH Accuracy
KWS-850 Online Multi-Parameter Water Quality Sensor with RS-485 Modbus/RTU, Automatic Cleaning, and ±0.1pH Accuracy
KWS-850 Online Multi-Parameter Water Quality Sensor with RS-485 Modbus/RTU, Automatic Cleaning, and ±0.1pH Accuracy
KWS-850 Online Multi-Parameter Water Quality Sensor with RS-485 Modbus/RTU, Automatic Cleaning, and ±0.1pH Accuracy
KWS-850 Online Multi-Parameter Water Quality Sensor with RS-485 Modbus/RTU, Automatic Cleaning, and ±0.1pH Accuracy
Specifications
Brand Name :
KACISE
Model Number :
KWS-850
Certification :
CE
Place of Origin :
china
MOQ :
1PCS
Payment Terms :
L/C,D/A,D/P,T/T,Western Union,MoneyGram
Supply Ability :
1000 Piece/Pieces per Week negotiable
Delivery Time :
5-8 work days
Packaging Details :
each unit has individual box and all boxes are packed in standard packages or customers requests available
Output :
RS-485(Modbus/RTU)
Power consumption :
5W@12V
power supply :
12VDC±5%
Accuracy :
±0.1pH
Measuring range :
0～100mg/L or 0～1000mg/L
Description
KWS-850 Online Multi-Parameter Water Quality Sensor
Low Maintenance Design

The KWS-850 online multi-parameter water quality sensor features exceptional low-maintenance characteristics that distinguish it in the market. Its self-cleaning mechanism utilizes ultrasonic vibrations or mechanical brushing to effectively remove fouling substances such as algae, sediment, or biofilms that accumulate on the sensor surface. This ensures continuous accurate measurements while significantly reducing manual cleaning requirements.

Constructed with durable, corrosion-resistant materials, the sensor withstands harsh aquatic environments, including those with high salinity or chemical impurities. This durability minimizes component replacements and repairs. The integrated intelligent diagnostic system continuously monitors sensor performance, detecting potential issues early and alerting operators promptly to minimize downtime and maintenance efforts.

Technical Specifications
Parameter Measuring Range Accuracy Resolution
Dissolved Oxygen Probe 0-20mg/L ±0.4mg/L 0.01mg/L
Turbidity Probe 0-100NTU / 0-1000NTU ±3% or ±2NTU / ±5% or ±3NTU 0.1NTU
Conductivity/Salinity Probe 0-5000μS/cm / 0-200mS/cm / 0-70PSU ±1.5% F.S. 1μS/cm / 0.1mS/cm / 0.1PSU
COD Probe COD: 0-200mg/L equiv. KHP / 0-500mg/L equiv. KHP
Turbidity: 0-100NTU / 0-200NTU		 COD: ±5% F.S.
Turbidity: ±5% F.S.		 COD: 0.1mg/L
Turbidity: 0.1NTU
pH Probe 0-14pH ±0.1pH 0.01pH
ORP Probe -1500mV to +1500mV ±6mV 1mV
Ammonia Nitrogen Probe 0-100mg/L or 0-1000mg/L ±10% or ±2mg/L 0.1mg/L
Temperature 0-50℃ ±0.5℃ 0.1℃
Additional Specifications
Parameter Specification
Output RS-485 (Modbus/RTU)
Cleaning Method Automatic cleaning
Power Consumption 5W @ 12V
Power Supply 12VDC ±5%
Cable Length 5 meters (customizable)
Key Features
  • Digital sensor with RS-485 bus and Modbus/RTU communication protocol
  • Automatic cleaning device effectively cleans sensor surface, prevents microorganism attachment, ensures accurate measurement, and reduces maintenance costs
  • Integrated design simultaneously measures 8 parameters (including temperature)
  • Optional digital sensors including dissolved oxygen, COD, conductivity/salinity, turbidity, ammonia nitrogen, pH, ORP - suitable for long-term online monitoring
Product Dimensions
KWS-850 Online Multi-Parameter Water Quality Sensor with RS-485 Modbus/RTU, Automatic Cleaning, and ±0.1pH Accuracy
Wiring Configuration
Red line - Power supply (VCC)
White line - 485 data B (485_B)
Blue line - 485 data A (485_A)
Black line - Ground line (GND)
