Specifications
Brand Name :
KACISE
Model Number :
KSLV651-A
Certification :
CE
Place of Origin :
CHINA
MOQ :
1PCS
Payment Terms :
L/C,D/A,D/P,T/T,Western Union
Supply Ability :
1000 Piece/Pieces per Week negotiable
Delivery Time :
5-8 work days
Packaging Details :
each unit has individual box and all boxes are packed in standard packages or customers requests available
Order Length L :
50-2000mm (with protective tube, max 6000 mm)
Pressure Range :
-0.1-2.5 MPa
Operating Current :
0-5 V / RS485 / CAN: 5-10 mA
Long-term Stability :
≤0.1% FS / year
Temperature Drift :
≤0.02% FS/℃ (within -40-80℃)
Probe Material :
FEP
Protection Level :
IP68
Order Length :
50-2000mm (max 6000 mm)
Description
Product Introduction

The KSLV651-A Series Intelligent Capacitive Level Sensor is carefully designed by KACISE and is suitable for various complex level measurement applications, including wastewater, oils, chemical media, and environments with large variations in temperature and pressure. The product features a single-probe capacitive design with no moving or elastic parts, offering high reliability, impact resistance, easy installation, and excellent cost performance. It can replace RF admittance, radar, ultrasonic, and magnetostrictive level instruments to achieve precise level measurement across a wide range of media.

The core probe is made of FEP material and is paired with a high-precision RF capacitive detection circuit. Through precise temperature compensation and linear correction by the internal processor, it automatically converts changes in the medium’s level into a standard electrical signal. The product supports automatic calibration and self-adaptive measurement, providing long-term stable level data in different media and complex conditions without manual intervention.

Features
  • Self-adaptive and self-calibrating, providing long-term stable output of the true level value
  • Excellent anti-fouling capability, with strong resistance to material buildup, condensation, and bubbles
  • Simple structure with no moving parts, ensuring high reliability and minimal maintenance
  • Multiple signal output options available for easy integration with different systems
  • Unaffected by the temperature, density, pressure, or other properties of the measured liquid
  • Maximum operating temperature ≤ 250 °C; maximum operating pressure ≤ 4 MPa
  • Good sealing performance, with optional products rated up to IP68 protection
  • Comprehensive protection against lightning, overcurrent, overvoltage, and power polarity reversal
  • Long-term stability: ≤ 0.1% FS per year
  • Temperature drift: ≤ 0.02% FS/°C (within the range of −40 °C to +80 °C)
  • Measurement accuracy:
    • For measuring ranges ≤ 300 mm: absolute error within ±3 mm (including 3 mm)
    • For measuring ranges of 300–700 mm: accuracy class 1.0
    • For measuring ranges of 700–2000 mm: accuracy class 0.5
Technical Parameters
Parameter Specification
Order Length L 50-2000mm (with protective tube, max 6000 mm)
Accuracy

Absolute error ±3 mm (L ≤ 300 mm);

Accuracy class 1.0 (300 < L ≤ 700 mm);

Accuracy class 0.5 (700 < L ≤ 2000 mm)
Medium Temperature -40-85℃
Ambient Temperature -60-150℃
Signal Type 4-20mA / 0-5V / RS485 / CAN
Supply Voltage

4-20 mA: 12-28 Vdc, typical 24 Vdc;

0-5 V / RS485 / CAN: 4.5–36 Vdc;

Customized options available
Operating Current 0-5 V / RS485 / CAN: 5-10 mA
Pressure Range -0.1-2.5 MPa
Long-term Stability ≤0.1% FS / year
Temperature Drift ≤0.02% FS/℃ (within -40-80℃)
Protection Level IP68
Probe Material FEP
Probe Diameter ∅10 mm
Mounting Screw Material SUS 304
Mounting Method Threaded installation M20*1.5 (with protective tube M27*2)
Dimensional Tolerance ±3 mm

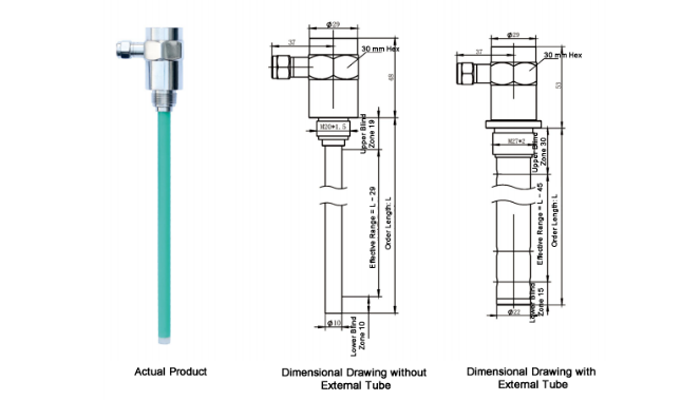

Dimensional Diagram
