Split-type Ultrasonic Sludge Level Meter with 1%~3% Accuracy 5mm Resolution and 4~20mA Output
Split-type Ultrasonic Sludge Level Meter with 1%~3% Accuracy 5mm Resolution and 4~20mA Output
Split-type Ultrasonic Sludge Level Meter with 1%~3% Accuracy 5mm Resolution and 4~20mA Output
Split-type Ultrasonic Sludge Level Meter with 1%~3% Accuracy 5mm Resolution and 4~20mA Output
Specifications
Brand Name :
geo_151_1778609541
Model Number :
KWD120
Certification :
ce
Place of Origin :
CHINA
MOQ :
1PCS
Payment Terms :
L/C,D/A,D/P,T/T,Western Union,MoneyGram
Supply Ability :
1000 Piece/Pieces per Week negotiable
Delivery Time :
5-8 work days
Packaging Details :
each unit has individual box and all boxes are packed in standard packages or customers requests available
Measurement Accuracy :
1%~3%
Resolution :
5mm or 0.5% (the larger one)
Display :
Chinese LCD display
Analog Output :
4~20mA/510Ω load
Relay Output :
2-way AC 250V/5A or DC 30V/5A, programmable status
Description

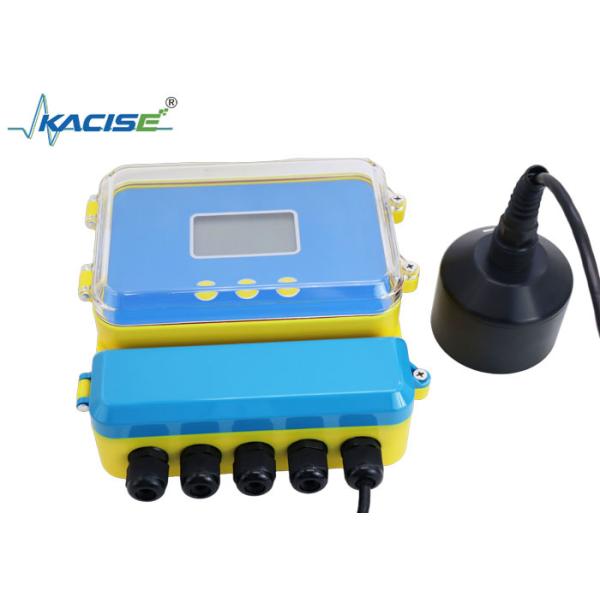

KWD120 Split-type Ultrasonic Sludge Level Meter
Introduction

The KWD120 Ultrasonic Depth Sounder is a reliable, cost-effective level measurement instrument designed for sludge and liquid applications. This contact-type device measures underwater distance through liquid propagation, offering easy installation and maintenance.

Split-type Ultrasonic Sludge Level Meter with 1%~3% Accuracy 5mm Resolution and 4~20mA Output
Technical Parameters
Function Split type
Range Standard measuring ranges: 5m, 10m, 15m, 20m. Customizable up to 70m or special ranges
Measurement Accuracy 1%-3%
Resolution 5mm or 0.5% (whichever is larger)
Display Chinese LCD display
Analog Output 4-20mA/510Ω load
Relay Output 2-way AC 250V/5A or DC 30V/5A, programmable status
Power Supply Standard 220V AC ±15% 50Hz, Optional 24VDC 120mA, Custom 12VDC or battery power
Ambient Temperature Display: -20°C to +60°C, Probe: -20°C to +80°C
Communication Optional 485, 232 communication (manufacturer protocol)
Protection Level Display: IP65, Probe: IP68
Probe Cable Standard 10m, customizable up to 100m (without electromagnetic interference)
Power Consumption (24V)
  • mA output only: 1.5W (standard)
  • 485 output only: 0.9W (optional)
  • Both 485 and mA: 1.6W (optional)
  • Add two relays: +0.8W (optional)
Power Consumption (220V) 220VAC split instrument: 5W

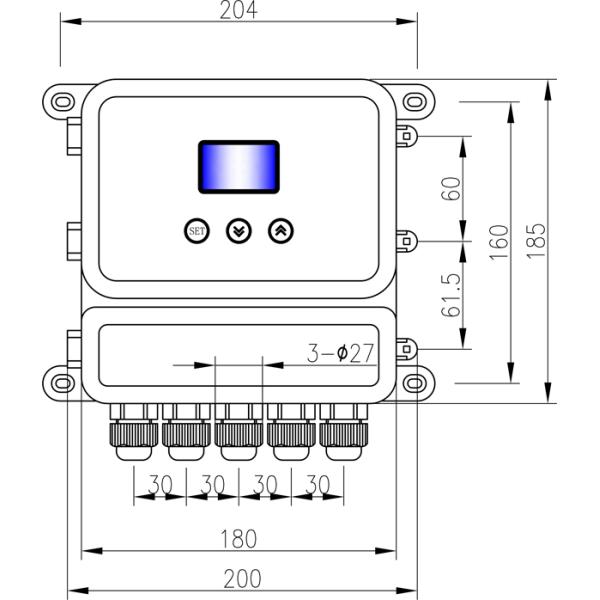

Dimensions
Split-type Ultrasonic Sludge Level Meter with 1%~3% Accuracy 5mm Resolution and 4~20mA Output
Probe Dimensions
Split-type Ultrasonic Sludge Level Meter with 1%~3% Accuracy 5mm Resolution and 4~20mA Output

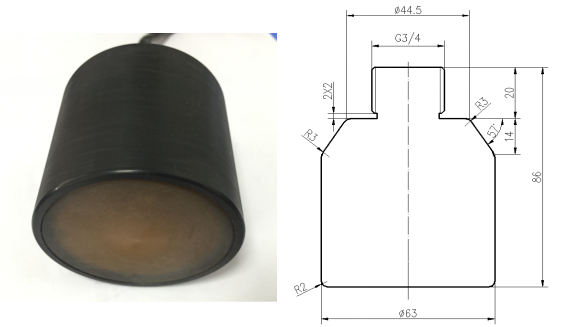

50Khz and 200Khz dual frequency
Split-type Ultrasonic Sludge Level Meter with 1%~3% Accuracy 5mm Resolution and 4~20mA Output

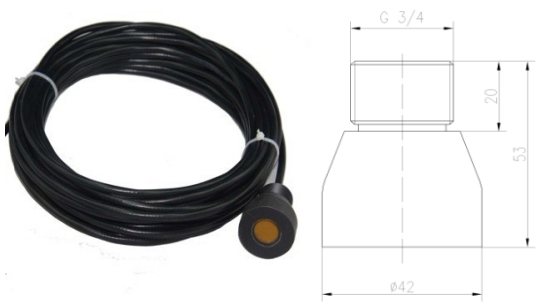

300Khz
Split-type Ultrasonic Sludge Level Meter with 1%~3% Accuracy 5mm Resolution and 4~20mA Output

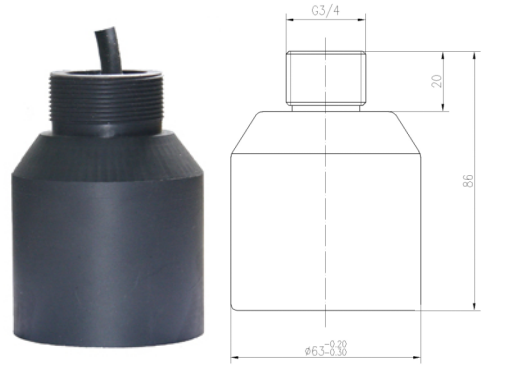

400Khz
Split-type Ultrasonic Sludge Level Meter with 1%~3% Accuracy 5mm Resolution and 4~20mA Output

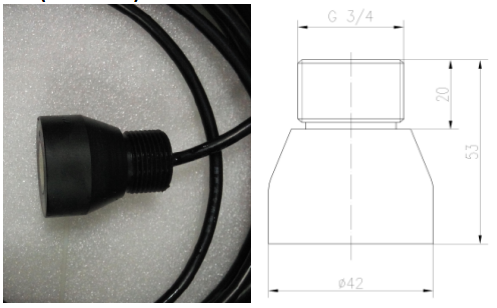

500Khz
Split-type Ultrasonic Sludge Level Meter with 1%~3% Accuracy 5mm Resolution and 4~20mA Output

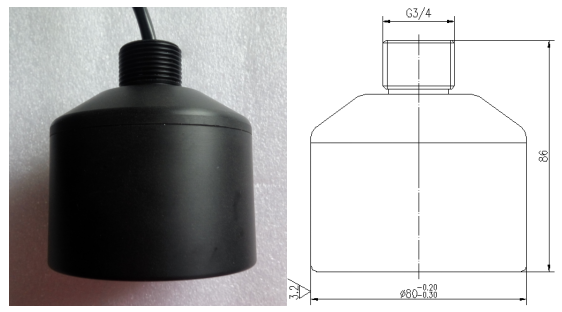

650Khz
