High Purity Water pH Sensor with Digital Communication and Pt1000 Temperature Compensation
High Purity Water pH Sensor with Digital Communication and Pt1000 Temperature Compensation
Specifications
MOQ :
1pcs
Payment Terms :
L/C,D/A,D/P,T/T,Western Union,MoneyGram
Supply Ability :
1000 Piece/Pieces per Week negotiable
Delivery Time :
5-8 work days
Packaging Details :
each unit has individual box and all boxes are packed in standard packages or customers requests available
Measuring temperature :
0 to 50℃
Measuring pressure :
Atmospheric pressure
Temperature compensation sensor :
Pt1000
Weight :
Approx. 0.4 kg
Digital communication function :
Support SENCOM4.0 (Variopin connector and SA11 adapter connected)
Description

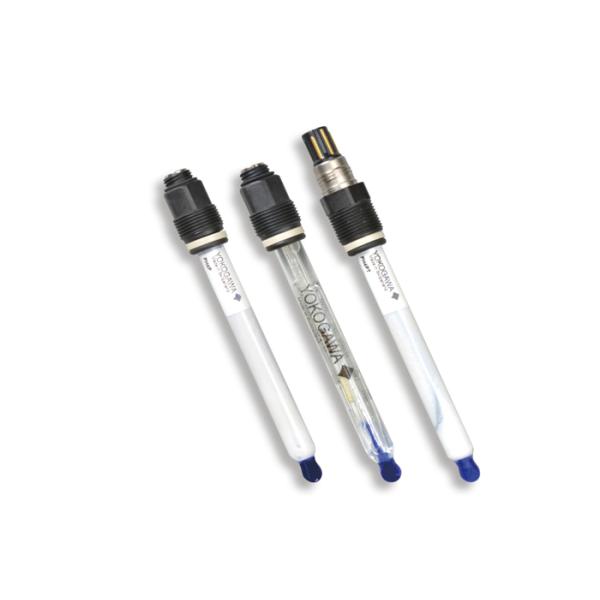

pH Sensor for High Purity Water PH8EHP
Yokogawa's process pH Analyzers are highly reliable and feature advanced functions for a wide variety of applications including water quality management in production processes, medium-sized wastewater treatment plants, and general purpose pH control systems. Based on Yokogawa's extensive experience, a comprehensive range of products provides solutions tailored to individual applications.
The PH8EHP pH sensor and PH8HH holder perform reliable measurement of pH for high purity water used in boilers and semiconductor process applications. While pH/ORP sensors were traditionally used as analog detectors, they can now function as digital detectors (with Variopin connector) by installing the SENCOM Smart Adapter SA11.
Key Features
  • The dedicated holder provides solutions to problems that arise when measuring high-purity water
  • Combined with the PH450G and PH202 pH/ORP analyzers, it compensates for the effect of fluid temperature
  • By combining pH and ORP sensor with SENCOM Smart Adapter SA11, it becomes a digital detector
pH Sensor PH8EHP for High Purity Water
Measuring temperature 0 to 50℃
Measuring pressure Atmospheric pressure
Temperature compensation sensor Pt1000
Weight Approx. 0.4 kg
Digital communication function Support SENCOM4.0 (Variopin connector and SA11 adapter connected)
Holder PH8HH for High Purity Water
Material Acrylic resin, 316SS, chloroprene rubber
Process connections Inlet: Rc1/4 or 1/4NPT (F)
Outlet: Rc1/2 or 1/2NPT (F)
Mounting method 50A (2-inch) vertical or horizontal pipe mounting or wall mounting (Specify mounting bracket)
Weight Approx. 1.7 kg
