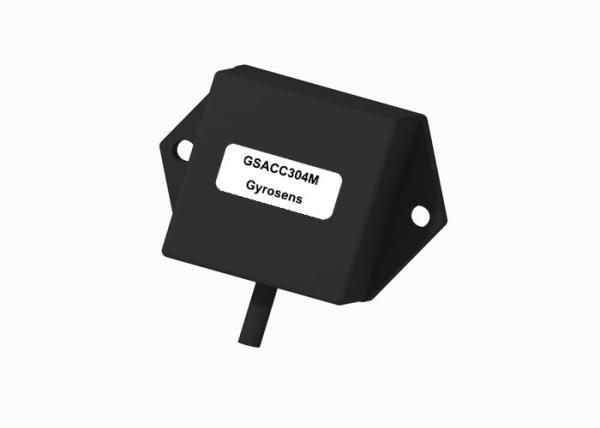

GSACC304M MEMS Accelerometer with High Frequency Response Small Size and Light Weight for Vibration Monitoring
GSACC304M MEMS Accelerometer with High Frequency Response Small Size and Light Weight for Vibration Monitoring
Specifications
Brand Name :
Gyrosens
Model Number :
GSACC304M
Certification :
CE
Place of Origin :
china
MOQ :
1pcs
Payment Terms :
L/C,D/A,D/P,T/T,Western Union,MoneyGram
Supply Ability :
1000 Piece/Pieces per Week negotiable
Delivery Time :
5-8 work days
Packaging Details :
each unit has individual box and all boxes are packed in standard packages or customers requests available
Range :
±20g
Nonlinear (%FS) :
≤ 0.5% Fs
Resolution (°/s) :
≤ 0.01 g
Sensitivity :
50±5 mV / g
Bandwidth :
≤ 10k Hz
Description

Features:

l Analog voltage output

l Wide measuring range

l High frequency response, up to 22 KHz

l Small size, light weight,

l impact resistance, vibration performance


Application:

l Power conductor breeze vibration monitoring

l Mechanical vibration monitoring equipment


Technical Specifications:

Type

GSACC304M

Electric character

Input voltage

12±0.5 VDC

Input current

≤12 mA

Output Mode

0.5~4.5V

Performance index

Axial direction

X

Y

Z

Range

±20g

Bandwidth

≤ 10k Hz

Sensitivity

50±5 mV / g

Resolution (°/s)

≤ 0.01 g

Nonlinear (%FS)

≤ 0.5% Fs

Bias

1.5±0.1 V

Start-up time (ms)

≤1 s

Environmental characteristics

Temperature (°C)

-40℃~+70℃

Storage Temperature

-40℃~+125℃

Resistant to shock

4000g

Physical Characteristics

Weight (g)

40g

Dimensions

40×26×15 mm


Dimensions:

GSACC304M MEMS Accelerometer with High Frequency Response Small Size and Light Weight for Vibration MonitoringGSACC304M MEMS Accelerometer with High Frequency Response Small Size and Light Weight for Vibration Monitoring

Note:Manual content will be updated from time to time.Please contact the supplier for the latest product manual.
