Universal Digital Inertial Measurement Unit with ±200°/s Full Scale ≤0.1% Nonlinearity and ≤0.3°/s Bias Repeatability
Universal Digital Inertial Measurement Unit with ±200°/s Full Scale ≤0.1% Nonlinearity and ≤0.3°/s Bias Repeatability
Specifications
Nonlinearity :
≤0.1%
Bias repeatability :
≤0.3°/s
Full Scale :
±200(optional)°/s
Bias :
≤±0.1°/s
Bias stability :
≤10°/s
Brand Name :
Gyrosens
Model Number :
GSIMU001M
Certification :
CE
Place of Origin :
china
MOQ :
1pcs
Payment Terms :
MoneyGram,Western Union,T/T,D/P,D/A,L/C
Supply Ability :
1000 Piece/Pieces per Week negotiable
Delivery Time :
5-8 work days
Packaging Details :
each unit has individual box and all boxes are packed in standard packages or customers requests available
Description
GSIMU001M Universal Digital Inertial Measurement Unit
The GSIMU001M Inertial Measurement Unit is a high-performance, cost-effective solution for navigation, control, and dynamic measurement applications. Featuring a sealed design, this unit delivers precise angular velocity and acceleration measurements even in demanding environmental conditions.
Key Features
  • Low cost with compact dimensions
  • Wide operating temperature range (-40°C to +85°C)
  • Broad power input compatibility with digital output
  • Robust construction for enhanced reliability
  • Low power consumption and fast startup
  • Wide bandwidth for responsive performance
Applications
Automotive electronics
Aircraft guidance and control
Attitude reference systems
Platform stabilization
Robotics
Antenna stabilization
Universal Digital Inertial Measurement Unit with ±200°/s Full Scale ≤0.1% Nonlinearity and ≤0.3°/s Bias Repeatability
Technical Specifications
Power Supply Parameters
Supply voltage 5V DC ±5%
Power consumption ≤0.5W @5V DC
Product Performance
Size Ф39.5*22mm, Ф39.5*28.5mm, 26.5*26.5*23.5mm
Weight ≤100g
Heading ±180°
Roll ±180°
Pitch ±90°
Pitch Accuracy 0.3°
Gyroscope
Full Scale ±200° (optional)/s
Bias ≤±0.1°/s
Bias stability ≤10°/s
Bias repeatability ≤0.3°/s
Nonlinearity ≤0.1%
Accelerometer
Full Scale ≤0.3°/h
Bias ≥500Hz
Bias stability 170g±10g
Nonlinearity ≤0.1%
General
MTBF 10Kh
Output Interface Digital RS422
Update rate (user settable) 200 Hz@460800
Environmental Specifications
Operating temperature -40°C to +70°C
Storage temperature -55°C to +85°C
Vibration 6 g @ 20-2000 Hz
Shock 8000 g, 0.5 ms, 1/2 Sine

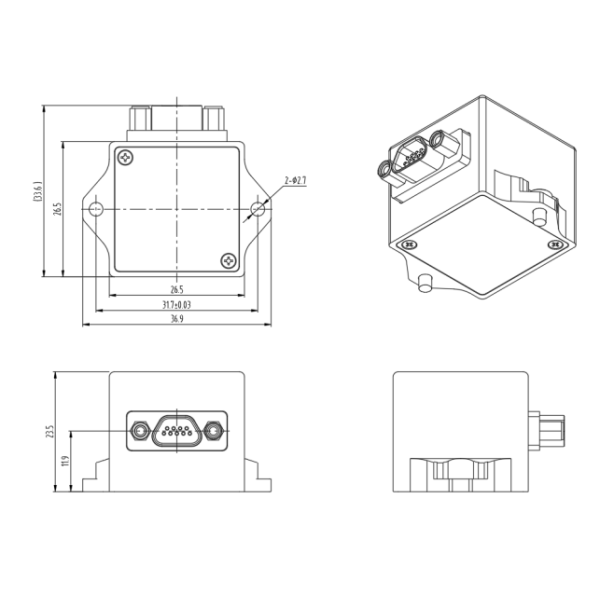

Dimensions
Universal Digital Inertial Measurement Unit with ±200°/s Full Scale ≤0.1% Nonlinearity and ≤0.3°/s Bias Repeatability
