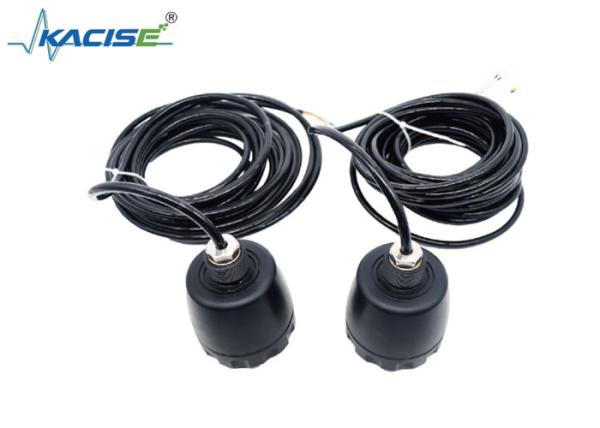

KWD200 Ultrasonic Underwater Communications Sensor with 50m-100m Range RS485 MODBUS Protocol for Submersible and Marine Monitoring
KWD200 Ultrasonic Underwater Communications Sensor with 50m-100m Range RS485 MODBUS Protocol for Submersible and Marine Monitoring
Specifications
Brand Name :
kacise
Model Number :
KWD200
Certification :
ce
Place of Origin :
china
MOQ :
1pcs
Payment Terms :
MoneyGram,Western Union,T/T,D/P,D/A,L/C
Supply Ability :
1000 Piece/Pieces per Week negotiable
Delivery Time :
5-8 work days
Packaging Details :
each unit has individual box and all boxes are packed in standard packages or customers requests available
Communication distance :
50 meters, 100 meters
Communication method :
RS485, MODBUS protocol
Bit error rate :
≤8% (related to the test environment)
Send information :
1-12 characters
Response rate :
3 seconds
Underwater acoustic communication rate :
96bps
Description

Introduction

This product mainly uses ultrasonic waves to achieve underwater communication.

It is used for underwater unmanned submersible communication, underwater short command transmission, marine sensor network transmission, and marine environment monitoring network transmission.

Product Features

▪ Power supply: battery (12V±10%)

▪ Communication distance: 100m

▪ Pressure resistance: 100m water depth

▪ Working temperature: 0℃～60℃ (no freezing)

▪ Protection grade: IP68

▪ Case material: ABS

Technical Specifications

Communication distance

50 meters, 100 meters

Underwater acoustic communication rate

96bps

Response rate

3 seconds

Send information

1-12 characters

Bit error rate

≤8% (related to the test environment)

Communication method

RS485, MODBUS protocol

Voltage resistance

100 meters water depth

Usage environment

Water depth greater than 2 meters, away from motors and frequency conversion equipment

Power supply

Battery (12V ± 10%), receiving power 0.9W/transmitting power 5W

Protection level

IP68

Operating temperature

Working temperature: 0℃+60℃

Interface thread size

M33*1.5

Storage requirements

Storage environment temperature: -20~+60℃;

Storage environment pressure: normal pressure;

Storage environment humidity: ≤90%RH (non-condensing); Other requirements: No corrosive liquid, gas or steam in the environment, no vibration.

Wiring definition

Red: 12V+ Green: 12V-

White: 485A Yellow: 485B

Usage precautions

During the test wiring process, the 485 line cannot touch and short-circuit the power line. If the short-circuit burns out, the product cannot be repaired.

KWD200 Ultrasonic Underwater Communications Sensor with 50m-100m Range RS485 MODBUS Protocol for Submersible and Marine MonitoringApplication Fields
