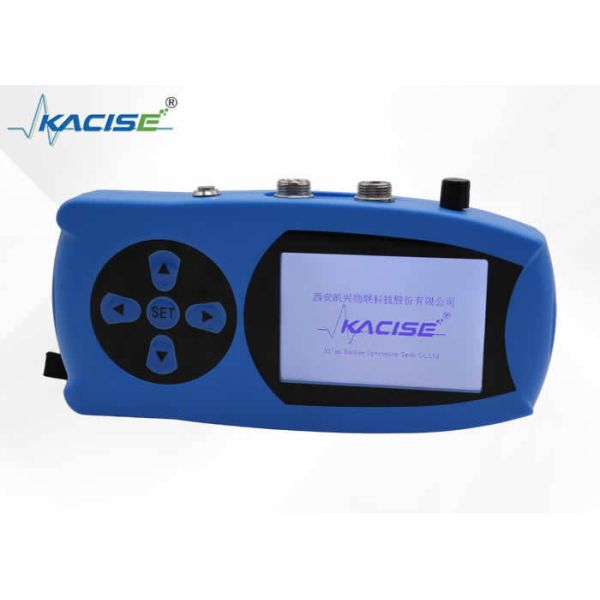

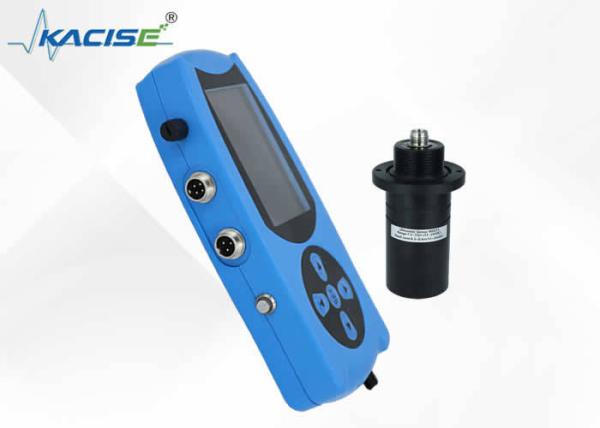

KWD100 Handheld Depth Sounder with 0.7~100m Range 3.6°±10% Emission Angle and ±0.5% Accuracy Ultrasonic Depth Sensor
KWD100 Handheld Depth Sounder with 0.7~100m Range 3.6°±10% Emission Angle and ±0.5% Accuracy Ultrasonic Depth Sensor
KWD100 Handheld Depth Sounder with 0.7~100m Range 3.6°±10% Emission Angle and ±0.5% Accuracy Ultrasonic Depth Sensor
KWD100 Handheld Depth Sounder with 0.7~100m Range 3.6°±10% Emission Angle and ±0.5% Accuracy Ultrasonic Depth Sensor
KWD100 Handheld Depth Sounder with 0.7~100m Range 3.6°±10% Emission Angle and ±0.5% Accuracy Ultrasonic Depth Sensor
KWD100 Handheld Depth Sounder with 0.7~100m Range 3.6°±10% Emission Angle and ±0.5% Accuracy Ultrasonic Depth Sensor
KWD100 Handheld Depth Sounder with 0.7~100m Range 3.6°±10% Emission Angle and ±0.5% Accuracy Ultrasonic Depth Sensor
KWD100 Handheld Depth Sounder with 0.7~100m Range 3.6°±10% Emission Angle and ±0.5% Accuracy Ultrasonic Depth Sensor
Specifications
Brand Name :
kacise
Model Number :
KWD100
Certification :
ce
Place of Origin :
china
MOQ :
1pcs
Payment Terms :
MoneyGram,Western Union,T/T,D/P,D/A,L/C
Supply Ability :
1000 Piece/Pieces per Week negotiable
Delivery Time :
5-8 work days
Packaging Details :
each unit has individual box and all boxes are packed in standard packages or customers requests available
Range :
0.7~100m
Power supply :
18650 rechargeable lithium battery
Emission angle :
3.6°±10%
Communication :
USB-MODBUS
Weight measurement accuracy :
±0.5% (maximum range)
Description

Introduction

Based on the principle of ultrasonic ranging, it can realize underwater ranging and underwater depth measurement. The characteristics of this product are that it can use the transducer attached to the machine for depth measurement; it can also be powered externally, communicate externally, and mount various ranging sensors of the company to perform corresponding ranging work. It can read the signal status of the transducer and sensor to facilitate relevant judgment.

KWD100 Handheld Depth Sounder with 0.7~100m Range 3.6°±10% Emission Angle and ±0.5% Accuracy Ultrasonic Depth Sensor

Technical Specifications

Handheld depth sounder

Range

0.7~100m

Weight measurement accuracy

±0.5% (maximum range)

Communication

USB-MODBUS protocol

Emission angle

3.6°±10%

Power supply

18650 rechargeable lithium battery

Ambient temperature

-20℃<.C<60℃

Probe cable

3-core shielded cable

Probe connection

3-core aviation plug connection

Display

LCD display

Handheld host computer

External power supply

DC12V-25.6v 100MA

Mounted sensor connection

4-pin aviation plug connection

Mounted sensor range

Depending on the sensor mileage

Display

LCD display

KWD100 Handheld Depth Sounder with 0.7~100m Range 3.6°±10% Emission Angle and ±0.5% Accuracy Ultrasonic Depth Sensor

Application Fields
