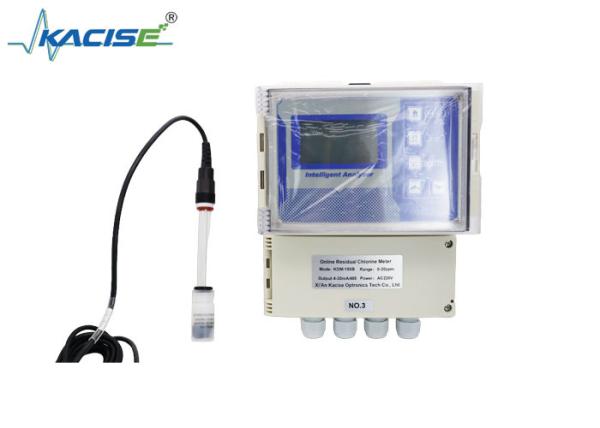

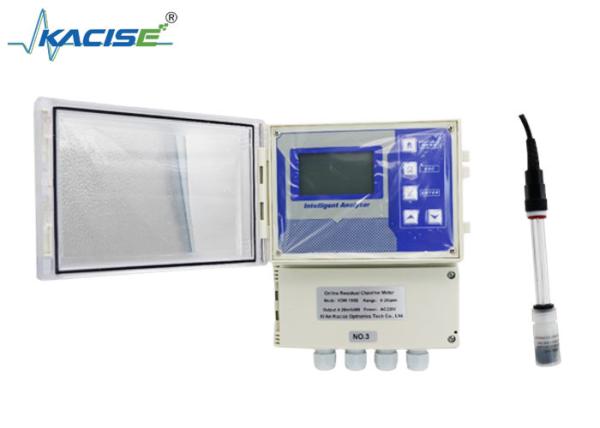

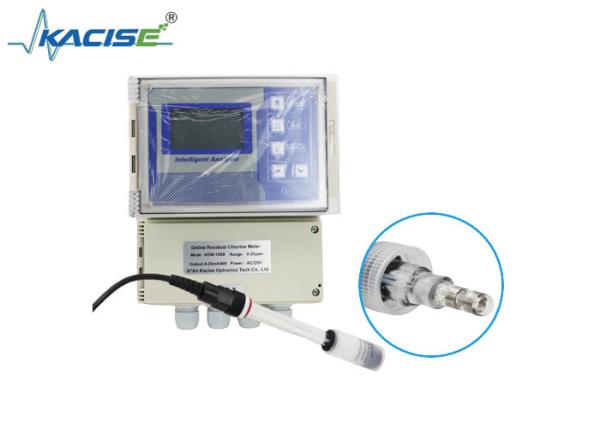

This advanced intelligent water quality detector features non-membrane constant voltage sensor technology, eliminating the need for diaphragm and reagent replacement. With high sensitivity, rapid signal response, and precise measurement capabilities, it delivers stable performance with minimal maintenance requirements.

The instrument offers English menu operation, superior stability, excellent repeatability, and multi-functional capabilities for accurate free chlorine measurement in water solutions. Ideal for continuous monitoring and control applications across various industries.

Applications: Water treatment plants, canning facilities, drinking water distribution networks, swimming pools, cooling and circulating water systems, and various water treatment projects.

• Advanced non-membrane constant voltage sensor technology - no diaphragm or reagent replacement required
• High sensitivity with rapid signal response and accurate measurement
• Stable performance with consistent zero position and simple maintenance
• Large dot-matrix LCD display with Chinese and English menu operation
• Manual temperature compensation capability
• Optional RS-485 communication interface (partially MODBUS compatible)
• Factory settings restoration function
• Watchdog function to prevent system crashes
• Power-off protection exceeding 10 years
• Protection rating: IP65 (controller), IP68 (chlorine electrode)

Install the instrument in a clean, dry, well-ventilated location without vibration. Ensure no corrosive gases are present in the surrounding environment.

The unit is designed for wall-mounted installation. Secure screws to the wall according to the instrument's mounting hole positions, then firmly install the unit.

The electrode must be installed in the constant flow electrode seat hole of the constant flow device, ensuring continuous water flow and complete electrode immersion. For extended periods without water flow, remove the sensor and cover with the original rubber sheath containing protective liquid.

1. Electrode Removal: Carefully push the electrode rubber sleeve with your fingernail (avoid twisting by hand to prevent damage) until fully removed. Preserve the rubber sleeve and protective liquid for temporary installations.
2. Electrode Installation: Insert the electrode into the constant flow device hole (near water outlet). Protect the glass head on the sensor top. Apply thread seal tape for waterproof sealing before installation.
3. Flow Requirements: Maintain constant flow rate of measured media. Recommended water flow: 15-30 cm³/s.
