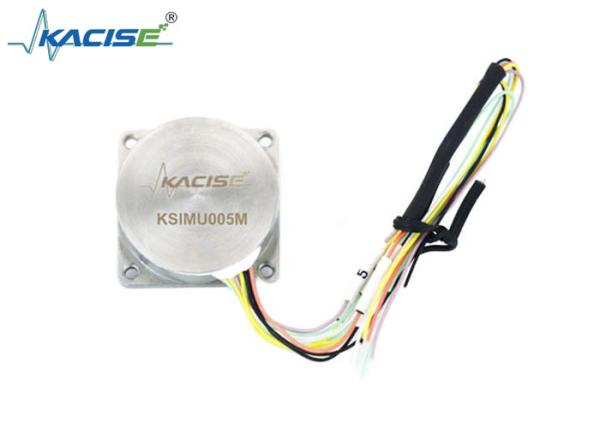

KSIMU005M Three Axis Quartz IMU MEMS Accelerometer Sensor
KSIMU005M Three Axis Quartz IMU MEMS Accelerometer Sensor
Specifications
Brand Name :
kacise
Model Number :
KSIMU005M
Certification :
ce
Place of Origin :
CHINA
MOQ :
1PCS
Supply Ability :
1000 Piece/Pieces per Week negotiable
Delivery Time :
5-8 work days
Packaging Details :
each unit has individual box and all boxes are packed in standard packages or customers requests available
Input Voltage :
5±0.2 V DC
Input Current :
≤100mA
Range :
±400°/s
Bias :
0±0.05°/s
Bias stability :
≤30°/h
Description

KSIMU005M Three Axis Quartz IMU
Product Introduction
KSIMU005M is an inertial measurement module developed with MEMS technology, which can measure the angular velocity and acceleration information of the carrier in three directions.
MEMS is a micro-device or system that integrates micro-sensors, micro-actuators, micro-mechanical structures, micro-power and micro-energy, signal processing and control circuits, high-performance electronic integrated devices, interfaces and communications. MEMS is a kind of independent intelligent system that can be mass-produced, the size of the system is a few millimeters or even smaller, and its internal structure is generally in the order of microns or even nanometers.
Common products include MEMS accelerometers, MEMS optical sensors, MEMS pressure sensors, MEMS gyroscopes, MEMS humidity sensors, MEMS gas sensors and their integrated products.
Feature
● Small Size,27mmX27mmX10mm
● Easy to be integrated by connect the digital interface RS422.
● Dual redundancy design to sets of gyro and accelerator integrated.
● Bias < 0.05°
Application
● Robotics
● Flight Testing
● Guidance & Control Systems
● Short Term Navigation
● Aerospace

KSIMU005M Three Axis Quartz IMU MEMS Accelerometer Sensor

Technical Specifications

Parameter

KSIMU005M

Power supply parameter

Input Voltage

5±0.2 V DC

Input Current

≤100mA

Product performance

GYRO

Range

±400°/s

Bias

0±0.05°/s

Bias stability

≤30°/h

Scale factor

70±3LSB/°/s

Scale factor nonlinearity

≤200ppm

Vibration error

≤0.03°/s

Bandwidth

≥100Hz

Accelerometer

Range

±10g

Bias

0±0.02g

Bias stability

≤0.002g

Scale factor

1000±30LSB/g

Bandwidth

≥400Hz

Interface

RS422(1-bit start +8-bit data +1-bit even parity check +1-bit stop)

Baud rate

460800bps

Inner Data update speed

≤2.5ms

Environment

Operating temperature

-40～+65℃

Random vibration

6.06 g

Dimensions
