Specifications
Brand Name :
KACISE
Model Number :
KSINS010C
Certification :
CE
Place of Origin :
CHINA
MOQ :
1PCS
Supply Ability :
1000 Piece/Pieces per Week negotiable
Delivery Time :
5-8 work days
Packaging Details :
each unit has individual box and all boxes are packed in standard packages or customers requests available
Position Accuracy :
0.5nmile/h
Pitch & Roll Accuracy :
<0.003°
Heading Accuracy :
<0.02°
Speed Accuracy :
<0.5m/s
Initialization Time :
<5min
Description

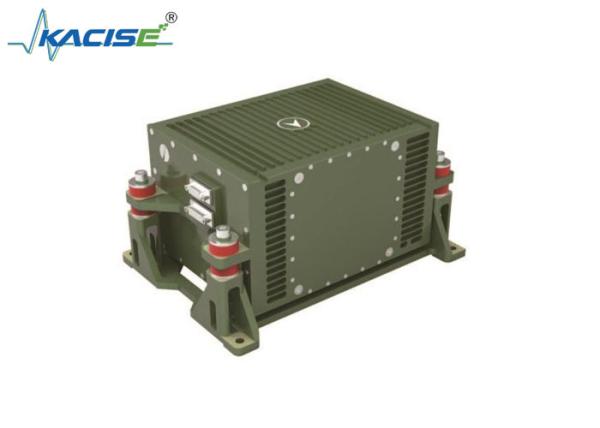

KSINS010C Laser Strapdown Inertial Navigation System

Product Introduction
The KSINS010C laser strapdown inertial navigation system is a small-volume, high-precision laser strapdown inertial navigation system. It has the advantages of small size, light weight, high precision, and good reliability. It can meet the needs of autonomous navigation in complex environments and is suitable for In various fields of navigation, integrated navigation, guidance and control, etc. The system can integrate satellite, radio, barometric altimeter, Doppler and other information to achieve high-precision assembly.Combined navigation.
Feature
● 3.6kg laser strapdown products
● Using domestic high-precision spatial three-axis laser gyroscope and quartz flexible accelerometer
● Has the ability to align on a shaking base on the ground and in the air.
● Self-alignment, on-the-fly alignment or transfer alignment can be selected according to user needs
● Can be integrated with various information such as satellites, Doppler, altimeters, radios, star sensors, etc. for combined navigation, and the interface has strong scalability
Application
● Unmanned Aerial Vehicle(UAV)
● Fixed-wing UAV
● Rotary-wing UAV

KSINS010C Laser Inertial Navigation System 0.5nmile/h Accuracy
Technical Specifications

Parameter

KSINS010C

Performance indicators

Position Accuracy

0.5nmile/h

Pitch & Roll Accuracy

<0.003°

Heading Accuracy

<0.02°

Speed Accuracy

<0.5m/s

Initialization Time

<5min

Mechanical/

electrical interface

Steady state power consumption at normal temperature(W)

<27

Power supply(V)

18~32

Output

RS-422,RS-232,TTL,Ethernet

Size(mm)

185×139.5×110

Weight(Kg)

<3.9
