KSGYR106F Series Gyro Sensor for Inertial Navigation -45°C to +70°C
KSGYR106F Series Gyro Sensor for Inertial Navigation -45°C to +70°C
KSGYR106F Series Gyro Sensor for Inertial Navigation -45°C to +70°C
KSGYR106F Series Gyro Sensor for Inertial Navigation -45°C to +70°C
Specifications
Dimensions :
120×120×38mm
Operate temperature :
-45°C～+70°C
Start time :
≤5s
Supply voltage :
+5V
Power dissipation (full temperature) :
<6W
Weight :
<1000g
Brand Name :
KACISE
Model Number :
KSGYR106F
Certification :
CE
Place of Origin :
CHINA
MOQ :
1PCS
Payment Terms :
L/C,D/A,D/P,T/T,Western Union,MoneyGram
Supply Ability :
1000 Piece/Pieces per Week negotiable
Delivery Time :
5-8work days
Packaging Details :
each unit has individual box and all boxes are packed in standard packages or customers requests available
Description

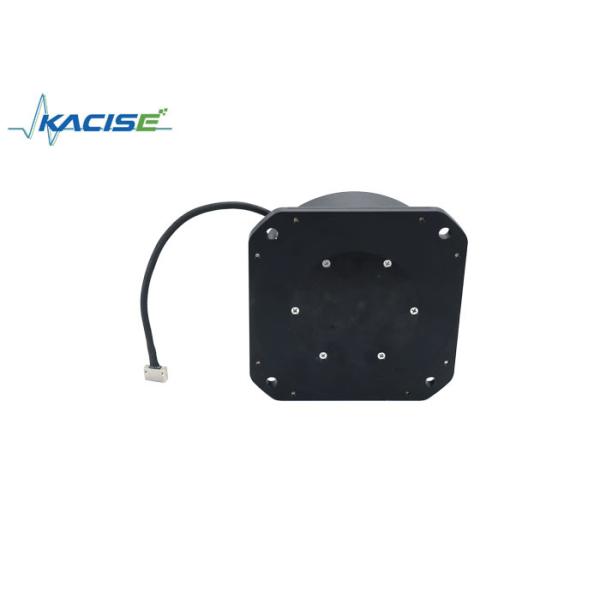

KSGYR106F Series Gyro Sensor for Inertial Navigation Systems
Product Overview

The KSGYR106F Series is an inertial angle rate sensor based on the optical Sagnac effect, designed to measure rotational angular velocity along its sensitive axis. This advanced sensor utilizes a digital closed-loop detection circuit to precisely extract optical path differences caused by external physical angular speed, enabling real-time angular velocity signal detection.

Key Attributes
Attribute Value
Supply voltage +5V
Dimensions 120*120*38mm
Start time ≤5s
Weight <1000g
Power dissipation (full temperature) <6W
Operate temperature -45°C～+70°C
Product Features
  • Accurately measures angular speed of moving objects
  • All solid-state design with no rotating or friction parts
  • Extended operational lifespan
  • Instant start capability
  • Simple, robust structure
  • Low bias with exceptional precision
Applications
  • Gimbal camera stabilization
  • Flight control platforms
  • Inertial navigation systems
  • Inertial monitoring systems
  • Optical and photography platform stabilization
  • Inertial measurement units
KSGYR106F Series Gyro Sensor for Inertial Navigation -45°C to +70°C
Technical Specifications
Parameter KSGYR106F-H KSGYR106F-HH
Power supply parameter
Supply voltage +5V DC +5V DC
Product performance
Dimensions 120*120*36mm 120*120*36mm
Start time 3s 3s
Bias (10s smooth, fix temperature) <0.01°/h <0.005°/h
Bias stability (10s smooth -45°C~+70°C) <0.005°/h(10s) <0.0015°/h(100s) <0.003°/h(10s) <0.001°/h(100s)
Bias repeatability <0.0015°/h <0.001°/h
Random walk <0.0003°/√h <0.0002°/√h
Scale factor non-linearity <2ppm <2ppm
Scale factor repeatability <5ppm <5ppm
Dynamic range ±300°/s ±300°/s
Power dissipation (full temperature) <4W <4W
Weight 890g±20g 890g±20g
Environment
Operating temperature -45°C～+70°C -45°C～+70°C
Storage temperature -55°C～+80°C -55°C～+80°C

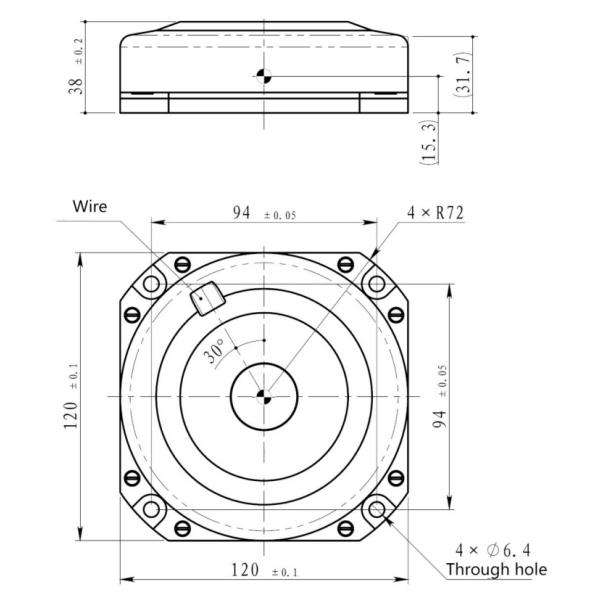

Dimensions
