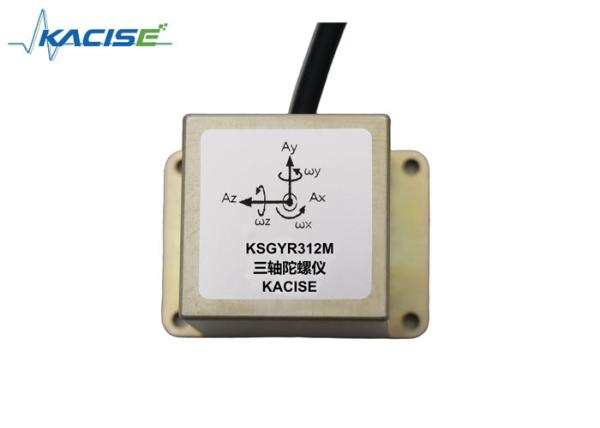

KSGYR312M Triaxial MEMS Gyro Sensor ±300°/s 5Vdc
KSGYR312M Triaxial MEMS Gyro Sensor ±300°/s 5Vdc
Specifications
Brand Name :
kacise
Model Number :
KSGYR312M
Certification :
ce
Place of Origin :
CHINA
MOQ :
1PCS
Payment Terms :
L/C,D/A,D/P,T/T,Western Union,MoneyGram
Supply Ability :
1000 Piece/Pieces per Week negotiable
Delivery Time :
5-8work days
Packaging Details :
each unit has individual box and all boxes are packed in standard packages or customers requests available
Input voltage :
5Vdc
Incoming currentmA :
<10 mA
Offset voltage :
1.65±0.02V
Output voltage :
0.66～2.64V
Range :
±300X、Y、Z°/s
Size :
43×30.5×30.5mm
Description

KSGYR312M Triaxial Universal Angular Rate Gyro
Product Introduction
KSGYR312M series three-axis universal angular rate gyro is developed by Kacise, which is used to measure the three-axis angular rate sensor. Each of the three axis angular rate gyro uses MEMS technology chip, with high performance, low cost, high reliability and high package ruggedness, and has Self-Test function.
Operating principle:
KSGYR312M series three-axis universal angular rate gyro works according to the principle of resonator gyro. Two polysilicon sensitive structures, each containing a high-frequency vibrating frame, which is driven electrostatically and resonates, form the necessary speed elements. The two outer ends of the frame form a capacitance-sensitive structure that is sensitive to the Coriolis motion generated at the angular rate and generates an electrical signal, which is transmitted to the amplifying stage and the modulating stage, thus output an electrical signal proportional to the angular rate.
Feature
● low power consumption
● wide operating temperature range
● wide bandwidth
● small size
● DC input DC output
● fast start
● high performance, low cost
Application
● automotive electronics
● aircraft guidance and control
● attitude reference system
● platform stabilization
● robot, antenna stabilization
● camera, digital camera gyro

KSGYR312M Triaxial MEMS Gyro Sensor ±300°/s 5Vdc
Technical Specifications

Parameter

KSGYR312M

Power supply parameter

Power Voltage

5V DC

Power 25°C

50mW

Supply current

≤10mA

Output Range

0.66～2.64(V)

Product performance

range

±300°/s

Size

43mm×30.5mm×30.5mm

Run-up time

0.005s

Bias

1.65±0.02V dc

Bias stability

≤12°/h

Bias temperature sensitivity

≤1°/s

Scale factor

3.3mV/°/s±0.05mV/°/s

scale factor nonlinearity

≤0.05%

noise

≤0.02°/s/g

Threshold

≤2%

Resolution

≤0.02°/s/√Hz；≤0.1°/s

bandwidth

≥80Hz

weight

<50g

MTBF

100000h

Environment

Operating temperature

-45°C～+85°C

Storage temperature

-65°C~+125°C

shock

20000g

Dimensions

KSGYR312M Triaxial MEMS Gyro Sensor ±300°/s 5Vdc

Interface Specification

Colour

Red

Black

Blue

Yellow

White

shield

Signal name

+12Vdc

Power and signal Ground

ωXOUT

ωYOUT

ωZOUT

Shell ground
