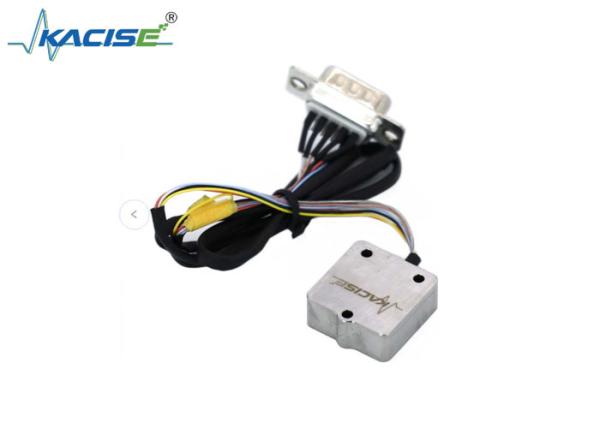

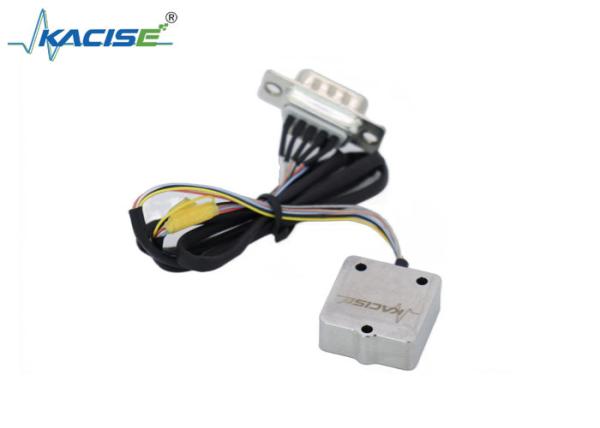

KSGYR301M MEMS Quartz Gyroscope ±100°/s Range 5Vdc
KSGYR301M MEMS Quartz Gyroscope ±100°/s Range 5Vdc
KSGYR301M MEMS Quartz Gyroscope ±100°/s Range 5Vdc
KSGYR301M MEMS Quartz Gyroscope ±100°/s Range 5Vdc
KSGYR301M MEMS Quartz Gyroscope ±100°/s Range 5Vdc
KSGYR301M MEMS Quartz Gyroscope ±100°/s Range 5Vdc
Specifications
Brand Name :
KACISE
Model Number :
KSGYR301M
Certification :
CE
Place of Origin :
CHINA
MOQ :
1PCS
Payment Terms :
L/C,D/A,D/P,T/T,Western Union,MoneyGram
Supply Ability :
1000 Piece/Pieces per Week negotiable
Delivery Time :
5-8work days
Packaging Details :
each unit has individual box and all boxes are packed in standard packages or customers requests available
Input Voltage :
5±0.2 Vdc
Input Current :
< 50 mA
Measurement range :
±100°/s
Bias :
≤0.03°/s
Bias stability :
≤20°/h
Bias repeatability :
≤20°/h
Description

KSGYR301M MEMS Quartz Gyroscope
Product Introduction
KSGYR301Mgyroscope is developed using quartz MEMS technology and can simultaneously sense the angular velocities of multiple axes (configured according to customer needs), and output digital information through the serial port.
MEMS is a micro-device or system that integrates micro-sensor, micro-actuator, micro-mechanical structure, micro-power and micro-energy, signal processing and control circuit, high-performance electronic integrated device, interface and communication. MEMS is an independent intelligent system that can be mass-produced, with a system size of a few millimeters or even smaller, and its internal structure is generally in the order of microns or even nanometers.
Common products include MEMS accelerometers, MEMS optical sensors, MEMS pressure sensors, MEMS gyroscopes, MEMS humidity sensors, MEMS gas sensors, and their integration products.
Feature
● Large-scale production
● Short startup time
● Wide operating temperature range
● Low power consumption
● High reliability
● Small size and light weight
● Serial output
Application
● Airborne instrument measurement
● Robot
● Automated testing
● Attitude reference system
● Control system
● Flight Test
● Platform stability

KSGYR301M MEMS Quartz Gyroscope ±100°/s Range 5Vdc
Technical Specifications

Parameter

KSGYR301M

Power Requirements

Power Voltage

5V DC

Power 25°C

0.3W

Supply current

≤50 mA

Performance

range

±100°/s

Output

RS422

Size

22.4mm×22.4mm×9mm

Run-up time

2s

Bias

≤0.03°/s

Bias stability

≤20°/h

Bias temperature sensitivity

≤1°/s

Bias repeatability

≤20°/h

Random walk

≤0.25°/√h

scale factor nonlinearity

≤0.02%

noise

≤0.01°/s/g

Threshold

≤1°/s

Resolution

≤0.005°/s

bandwidth

≥90Hz

weight

≤50g

Environments

Operating temperature

-40°C~+65°C

Random vibration

6.06g

shock

200g

Dimensions
Unit:mm
