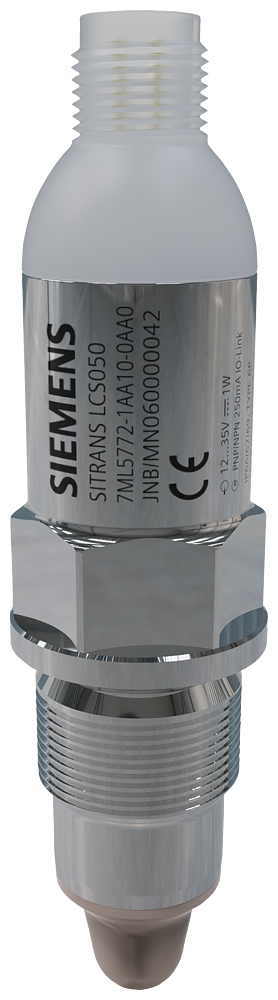

SITRANS LCS050 Ultra-Compact Capacitance Level Switch with IO-Link Communication and PEEK Probe for Point Level Detection
SITRANS LCS050 Ultra-Compact Capacitance Level Switch with IO-Link Communication and PEEK Probe for Point Level Detection
Specifications
Brand Name :
SIEMENS
Model Number :
LCS050
MOQ :
1PCS
Payment Terms :
MoneyGram,Western Union,T/T,D/P,D/A,L/C
Supply Ability :
1000 Piece/Pieces per Week negotiable
Delivery Time :
5-8 work days
Packaging Details :
each unit has individual box and all boxes are packed in standard packages or customers requests available
Measuring principle :
Capacitance level detection
Alarm output :
Transistor (PNP/NPN) IO-Link acc. to IEC 61131-9
Fail-safe mode :
Min. or max.
Hysteresis :
Approx. 1 mm (0.04 inch)
Ambient temperature :
‑40 … +70 °C (‑40 … +158 °F)
Description
SITRANS LCS050
SITRANS LCS050 is an ultra-compact capacitance switch for point level detection in constricted spaces, water-based liquids, slurries, and foam.
SITRANS LCS050 Ultra-Compact Capacitance Level Switch with IO-Link Communication and PEEK Probe for Point Level Detection
Product Benefits
  • Easy installation with no need for adjustment
  • Low maintenance with no moving parts
  • Highly visible 360-degree status indication
  • M12 connector for ease of installation
  • IO-Link communication option for advanced monitoring and configuration
Applications
The SITRANS LCS050's ultra-compact design, short insertion length of 15 mm (0.59 inch), and versatility in various applications in vessels or pipes makes it an excellent replacement for traditional point level switches.
Its advanced alternating capacitance field at the sensor tip ensures material detection based on changes in capacitance, providing repeatable performance. The PEEK probe is chemically resistant with an effective process operating temperature range from ‑20 to +100 °C (‑4 to +212 °F) and supports sterilization in place at 135 °C (275 °F) for up to 1 hour. The product design ensures reliability in vibrating environments such as agitated tanks up to 5 g.
Key Applications
  • Water-based liquids with >10% water (alcohols, acids, cleaning agents)
  • Slurries and foam for point level detection

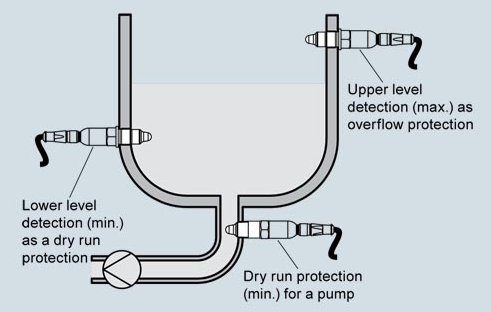

  • Overfill and dry run protection
  • Small pipes due to its compact design
Configuration
SITRANS LCS050 Ultra-Compact Capacitance Level Switch with IO-Link Communication and PEEK Probe for Point Level Detection
Technical Specifications
Measuring Principle Capacitance level detection
Measured Variable Change in picoFarad (pF)
Output Signal
Alarm output: Transistor (PNP/NPN)
IO-Link acc. to IEC 61131-9
Fail-safe mode: Min. or max.
Hysteresis Approx. 1 mm (0.04 inch)
Installation Location Indoor/outdoor
Ambient Temperature ‑40 … +70 °C (‑40 … +158 °F)
Storage Temperature ‑40 … +80 °C (‑40 … +176 °F)
Installation Category I
Pollution Degree 4
Relative Dielectric Constant εr Min. 2
Process Temperature ‑20 … +100 °C (‑4 … +212 °F) up to 1 hour, 135 °C (275 °F)
Pressure (Vessel) ‑1 … 25 bar/‑100 … 2 500 kPa (‑14.5 … 363 psig)
Degree of Protection M12x1 plug: IP66/IP67/IP69
Design Enclosure/integral cable version
Body Material 316L and plastic (polycarbonate)
Sensor Length 15 mm (0.59 inch)
Process Connection Material
Connection: 316L stainless steel
Device seal: FKM (hygienic version EPDM)
Sensor tip: PEEK
Connection (Enclosure version) M12 x 1 plug
Process Connection Pipe thread, cylindrical (DIN 3852-A) G½, G¾, G1 pipe thread, conical (ASME B1.20.1) ½ NPT, ¾ NPT, 1 NPT metric fine thread, cylindrical M24 x 1.5
Power Supply Standard: 12 ... 35 V DC
Certificates and Approvals General: CE, UKCA
