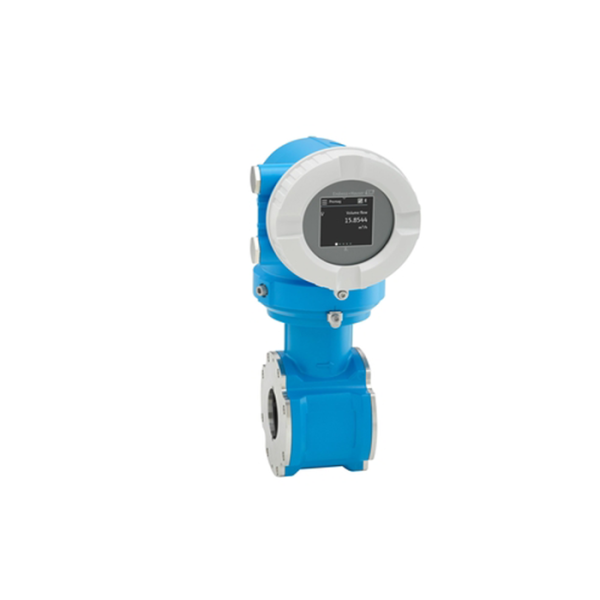

Proline Promag D 10 electromagnetic flowmeter
Proline Promag D 10 electromagnetic flowmeter
Specifications
Measured variables :
Volume flow, mass flow
Max. measurement error :
Volume flow (standard): ±0.5 % o.r. ± 1 mm/s (0.04 in/s)
Nominal diameter range :
DN 25 to 100 (1 to 4)
Brand Name :
Endress+Hauser
Model Number :
Proline Promag D 10
Place of Origin :
Switzerland
MOQ :
1PCS
Payment Terms :
L/C,D/A,D/P,T/T,Western Union,MoneyGram
Supply Ability :
1000 Piece/Pieces per Week negotiable
Delivery Time :
5-8 work days
Packaging Details :
each unit has individual box and all boxes are packed in standard packages or customers requests available
Max. process pressure :
PN 16, Class 150, 10K
Measuring range :
9 dm³/min to 282 m³/h (2.5 gal/min to 1250 gal/min)
Description
Proline Promag D 10 Electromagnetic Flowmeter
Highly cost-effective wafer flowmeter with easy-to-use operation concept. For basic water applications, optimized for limited space and plastic pipe installations.
Field of Application
The wafer flowmeter Promag D is designed for all basic water applications where space is at a minimum. With its straightforward hard- and software design, Promag D 10 simplifies every step in its life cycle from engineering to servicing at usual Endress+Hauser quality. Heartbeat Technology enables measurement reliability and compliant verification.
The bidirectional measuring principle is virtually independent of pressure, density, temperature and viscosity.
Key Benefits
  • Easy, fast centering of the sensor - innovative housing construction
  • Energy-saving flow measurement - no pressure loss due to cross section constriction
  • Maintenance-free - no moving parts
  • Optimum usability - operation with mobile devices and SmartBlue app or display with touch screen
  • Simple, time-saving commissioning - guided parameterization in advance and in the field
  • Integrated verification - Heartbeat Technology
Technical Specifications
Measuring Principle Electromagnetic
Nominal Diameter Range DN 25 to 100 (1 to 4)
Measured Variables Volume flow, mass flow
Max. Measurement Error Volume flow (standard): ±0.5 % o.r. ± 1 mm/s (0.04 in/s)
Measuring Range 9 dm³/min to 282 m³/h (2.5 gal/min to 1250 gal/min)
Max. Process Pressure PN 16, Class 150, 10K
Medium Temperature Range Liner material polyamide: 0 to +60°C (+32 to +140°F)
Ambient Temperature Range -40 to 60°C (-40 to 140°F)
Wetted Materials Liner material polyamide: 0 to +60°C (+32 to +140°F)
Electrodes: 1.4435 (316L)
Sensor Housing Material DN 25 to 100 (1 to 12): AlSi10Mg, coated
Transmitter Housing Material Polycarbonat; AlSi10Mg, coated
Degree of Protection Compact version: IP66/67, type 4X enclosure
Sensor remote version (standard): IP66/67, type 4X enclosure
Display/Operation LCD display with touch & auto rotate
Outputs 4-20 mA HART (active/passive), Pulse/frequency/switch output
Modbus RS485, 4-20 mA
Digital Communication HART, MODBUS RS485
Power Supply DC 24 V
AC 100 to 230 V
AC 100 to 230 V / DC 24 V (non-hazardous area)
Certifications & Approvals
Hazardous Area Approvals: CSA, GP
Metrological Approvals: Calibration performed on accredited calibration facilities (acc. to ISO/IEC 17025)
Heartbeat Technology: Complies with requirements for measurement traceability according to ISO 9001:2015
Hygienic Approvals: International drinking water approvals
Device Features
Sensor Features
  • Easy, fast centering of the sensor - innovative housing construction
  • Energy-saving flow measurement - no pressure loss due to cross section constriction
  • Maintenance-free - no moving parts
  • Short face-to-face length and low weight
  • Integrated ground disks made of stainless steel
  • International drinking water approvals
Transmitter Features
  • Optimum usability - display with touch screen or operation with mobile devices and SmartBlue app
  • Simple, time-saving commissioning - guided parameterization in advance and in the field
  • Integrated verification - Heartbeat Technology
  • 2-line display with push buttons
  • Device as compact or remote version
  • HART communication support
