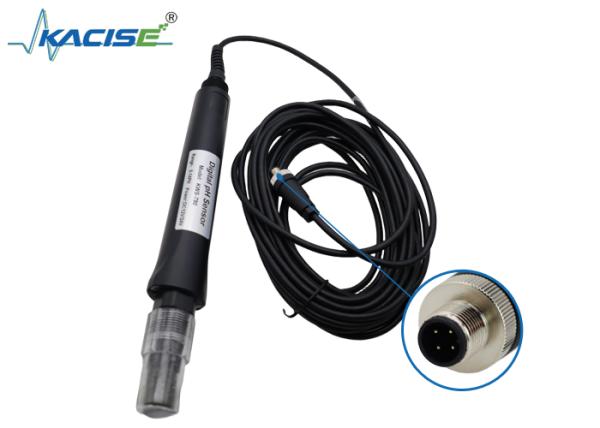

KWS-790 Digital pH Sensor with 0.00–14.00 pH Measuring Range ±0.02 pH Accuracy and 0–99.9 ℃ Temperature Compensation
KWS-790 Digital pH Sensor with 0.00–14.00 pH Measuring Range ±0.02 pH Accuracy and 0–99.9 ℃ Temperature Compensation
KWS-790 Digital pH Sensor with 0.00–14.00 pH Measuring Range ±0.02 pH Accuracy and 0–99.9 ℃ Temperature Compensation
KWS-790 Digital pH Sensor with 0.00–14.00 pH Measuring Range ±0.02 pH Accuracy and 0–99.9 ℃ Temperature Compensation
KWS-790 Digital pH Sensor with 0.00–14.00 pH Measuring Range ±0.02 pH Accuracy and 0–99.9 ℃ Temperature Compensation
KWS-790 Digital pH Sensor with 0.00–14.00 pH Measuring Range ±0.02 pH Accuracy and 0–99.9 ℃ Temperature Compensation
Specifications
Brand Name :
geo_152_1778609654
Model Number :
KWS-790
Certification :
ce
Place of Origin :
china
MOQ :
1pcs
Payment Terms :
L/C,D/A,D/P,T/T,Western Union,MoneyGram
Supply Ability :
1000 Piece/Pieces per Week negotiable
Delivery Time :
5-8 work days
Packaging Details :
each unit has individual box and all boxes are packed in standard packages or customers requests available
485 Interface :
Supports IoT, partially compatible with MODBUS protocol
Measuring Range :
0.00–14.00 pH, 1–100.0 ℃
Accuracy :
±0.02 pH, ±0.3 ℃
Temperature Compensation :
0–99.9 ℃ (pH), PT1000
Stability :
≤0.01 pH / 24 h
Description

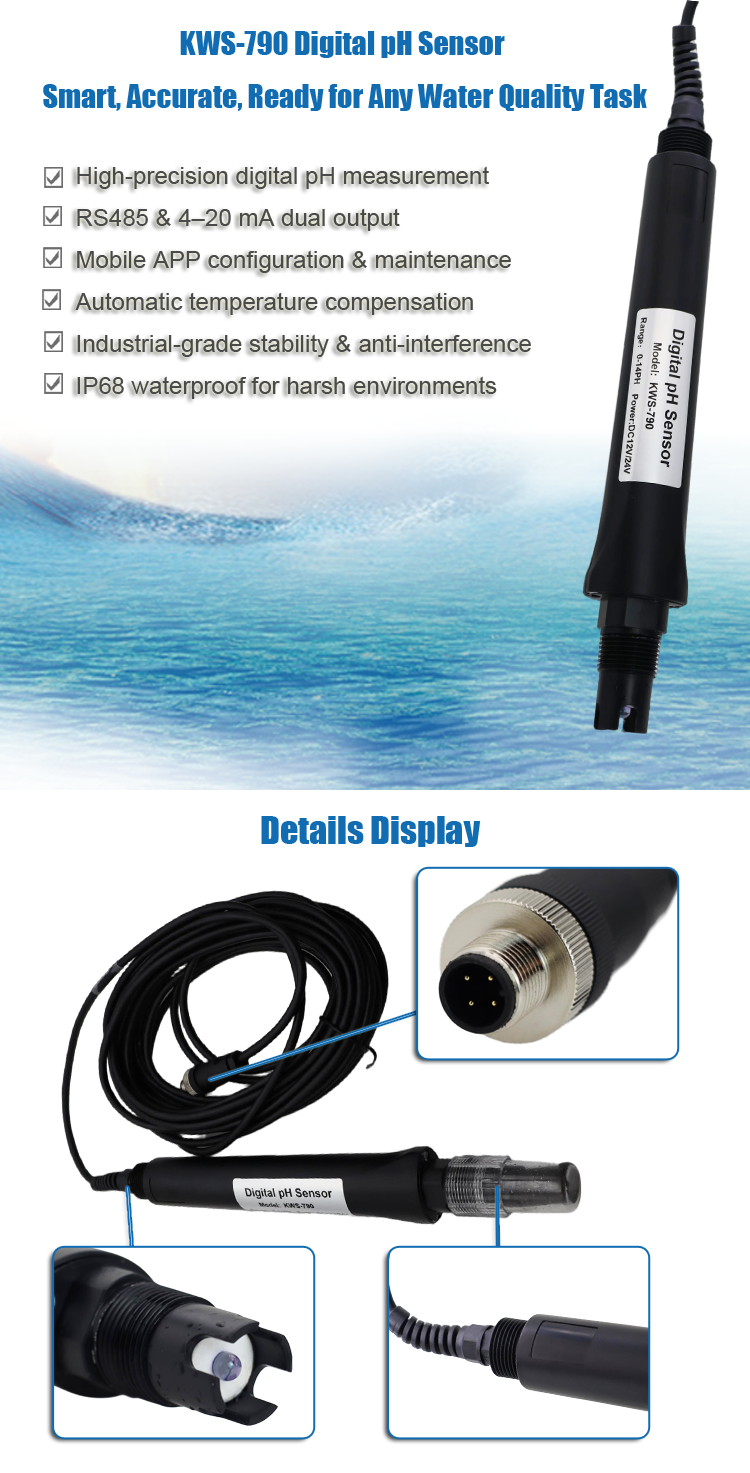

KWS-790 Digital pH Sensor
KWS-790 Digital pH Sensor with 0.00–14.00 pH Measuring Range ±0.02 pH Accuracy and 0–99.9 ℃ Temperature Compensation
Technical Parameters
Item Specification
Measuring Range 0.00-14.00 pH, 1-100.0 ℃
Accuracy ±0.02 pH, ±0.3 ℃
Stability ≤0.01 pH / 24 h
Temperature Compensation 0-99.9 ℃ (pH), PT1000
485 Interface Supports IoT, partially compatible with MODBUS protocol
Working Conditions 0-60 ℃
Input Impedance ≥1*10¹² Ω
Output Load 4-20 mA, load < 750 Ω (optional)
Working Voltage DC 5 V / 12 V / 24 V
Protection Grade IP68
Weight 0.4 kg
