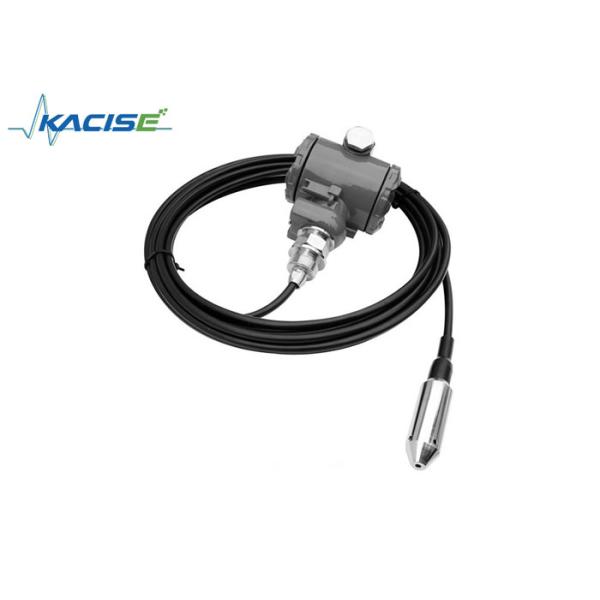

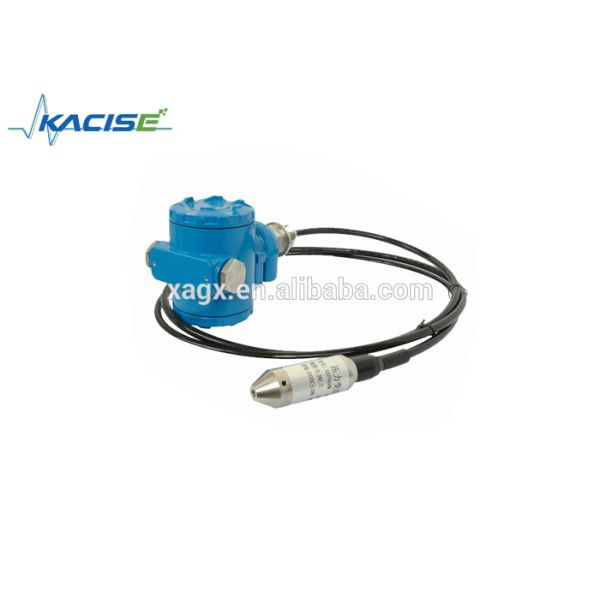

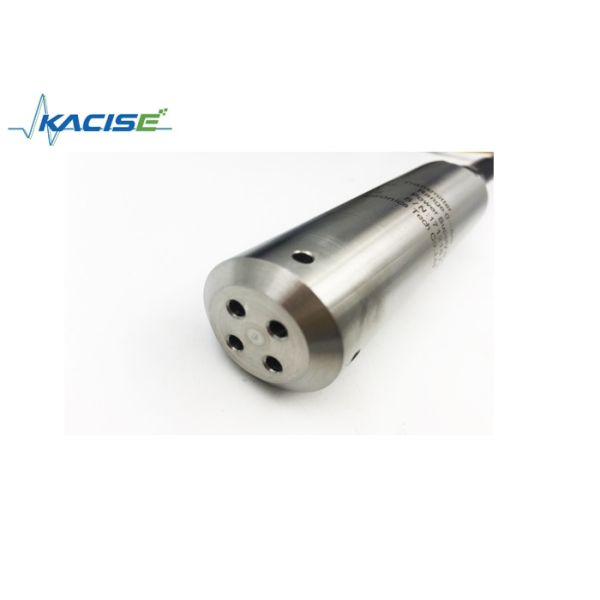

GXPS400 Submersible Liquid level Sensor Stainless Steel With anti-block spare parts

• Deep well level measuring
• Hydrologic measurement for river, lake, sea
• Sewage treatment
• Cloudy level measuring
• Fluid reservoir level measuring
• Water-saving irrigation
• Circulating liquid consumption monitoring
• Diversion project

• Diffused-Silicon oil filled core
• All kinds of structure to satisfy different users
• Easy to use with submersible measuring
• Multiple pressure range and signal output
• Non-polar 2 wire system current output
• Can be used in lightning protection products
• Reinforcing rib for liquid cable available
• Intrinsically safe explosion proof, Isolation explosion proof, CE

GXPS400 series level transmitter is a special structure and use of products, high precision, small size and good stability. Special strong cables for corrosive, abrasive, and chemical environment are offered according to filed environment. The products are approved with CE, intrinsically safe and explosion-proof certificates. Customized solutions for various fluids can be supplied.

GX-Type-Range-Output-Accuracy-Power-Structure-Cable length-Package

1. Type: PS400=universal type, PS400E=intrinsically safe type, PS400D=isolation explosion proof ,PS400L= lighting protection, PS400A=thread mounted, PS400B=Submersible & thread type, PS400-TH=Sediment prevention, PS430=minor diameter, PS400-1=antifouling, PS400-2=High density, PS470=economical, RSV=Reserved
2. Range: 1m…500m= the upper limitation of the range
3. Output: A=4~20mA, V=0~5Vdc, V1=1~5Vdc. V2=0~10Vdc
4. Accuracy: 0.25=±0.25%F.S, 0.5=±0.5%F.S, 1.0=±1.0%F.S
5. Power: 24VDC, 11~30Vdc, or customized
6. Structure: T= submersible type, G=F=split, Ht=customized
7. Cable length: XXm=XX meter 1-150m
8. Package: Bb, Foam

e.g. GXPS400-2.5m-A-0.5-DC24-T-5m-Foam

PS400, measuring range is 0-2.5mH2O, accuracy is 0.5%, 24Vdc power supply 4-20mA output, submersible type with 5m cable, foam packaged.
