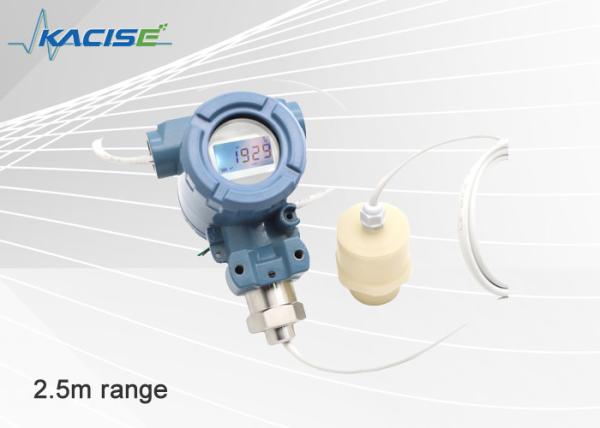

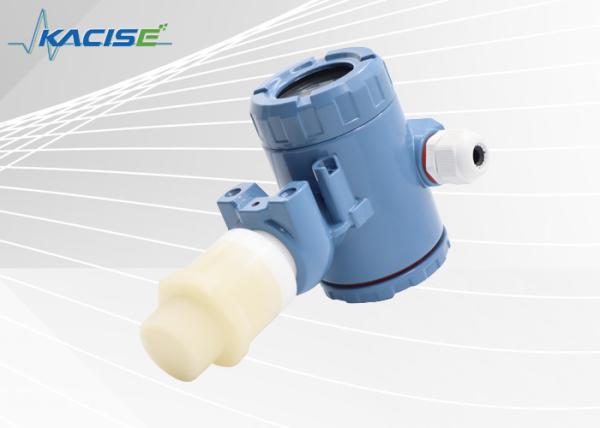

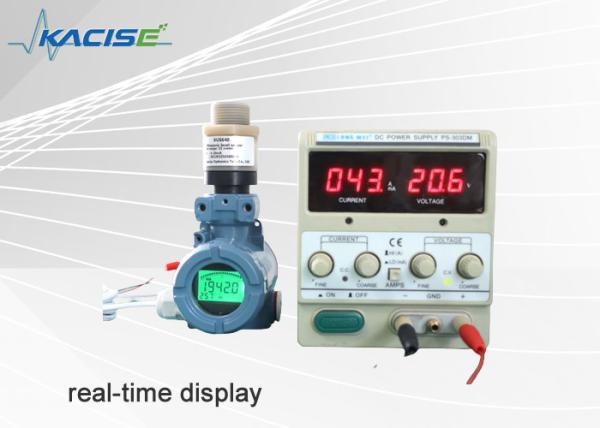

2.5m Distance Ultrasonic Liquid Level Sensor With Display KUS640
2.5m Distance Ultrasonic Liquid Level Sensor With Display KUS640
2.5m Distance Ultrasonic Liquid Level Sensor With Display KUS640
2.5m Distance Ultrasonic Liquid Level Sensor With Display KUS640
2.5m Distance Ultrasonic Liquid Level Sensor With Display KUS640
2.5m Distance Ultrasonic Liquid Level Sensor With Display KUS640
Specifications
Brand Name :
KACISE
Model Number :
KUS640A
Place of Origin :
CHINA
MOQ :
1PCS
Price :
Negotiable
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
1000 Piece/Pieces per Week negotiable
Delivery Time :
5-8 work days
Packaging Details :
each unit has individual box and all boxes are packed in standard packages or customers requests available
Range :
2.5m
Output :
4~20mA/NPN/PNP/RS485/0-3V，0-5V
Temperature compensation :
-10℃～70℃
Vibration effects :
< ± 0.05％/g，500Hz in all directions (according to IEC 68-2-64
Measured variable :
liquid level, material level
ambient temperature :
-25～+85℃
Protection class :
IP65 ，Complies with EN 60529
Measurement period :
≤default 200ms, user set
Certification :
CE
Description

KUS640 Intelligent Ultrasonic Liquid Level Meter

Product overview
KUS640 series intelligent ultrasonic level gauge/level sensor is a level gauge product with on-site display and 4-20mA remote transmission 485 remote transmission launched by our company.
Product Features
◆Power supply: 24VDC, customized support 12-24VDC
◆Special wide temperature LCD display (-30℃～80℃);
◆Vertical installation or axial installation, providing a variety of liquid level/level interfaces and interface materials;
◆ LCD with parameterization and three setting buttons.

Application
KUS640 series is used to indicate and monitor the changes of water pressure/water level value at the installation site, and upload the real-time data to the centralized management platform through the built-in wireless transmission module, which is convenient for users to manage intelligently and centralizedly. It is mainly used in the following industries:
• Fire water system • City water supply
• Sewage treatment • Long-distance heating
• Food industry • Chemical, energy

Technical parameter

Enter
Measured variableliquid level, material level
Measuring range

150mm-1000mm(Can be customized according to demand)
200mm-3000mm/300mm-6000mm/300mm-12000/600mm-20000mm/1.2m-30m/1.8-50m

Output
Comprehensive accuracyRS485/4-20mA,±1%FS/ 0.15℃
Temperature compensation-10℃～70℃
Vibration effects< ± 0.05％/g,500Hz in all directions (according to IEC 68-2-64)
Rated conditions Environmental conditions
ambient temperature-25～+85℃
Storage temperature-40～+85℃
Protection classIP65 ,Complies with EN 60529
Electromagnetic CompatibilityEN 61326/A2 Appendix A (2001 )
Display and control
showSFTN liquid crystal, green backlight, 5-digit display.
limit valueFree settings
Parameter settingsUse 3 buttons
Unitmm,The default unit is m.
WeightAbout 1.35kg
Materials of non-wetted parts
Joint1NPT,Stainless steel, length 20mm (material and joint specifications can be customized according to customer requirements).
Electrical connectionsMake waterproof connectors, air vent cable entries according to EN 175301-803A
Measurement period≤default 200ms, user set

Selection Tips: For special requirements, please contact our company and indicate it in the order.
Precautions:
1. If you need to calibrate the instrument, please contact our company. Non-professionals are not allowed to calibrate the instrument.
2. When calibrating the watch, please turn on the watch first, and then calibrate after 1 hour of constant temperature.

Order information

KUSModelOutputRange Describe
640B Product series model
Custom made
--- Independent display header without remote transmission
4-20mA 4-20mA remote transmission
RS485 RS485 remote transmission (default)
XXX mm XXX mmIt means the maximum measurement distance is 1m-50m can be customized
YYYmmYYY is the length of the split order cable, the default is 1.2 meters
KUS6504-20mA3000mm
