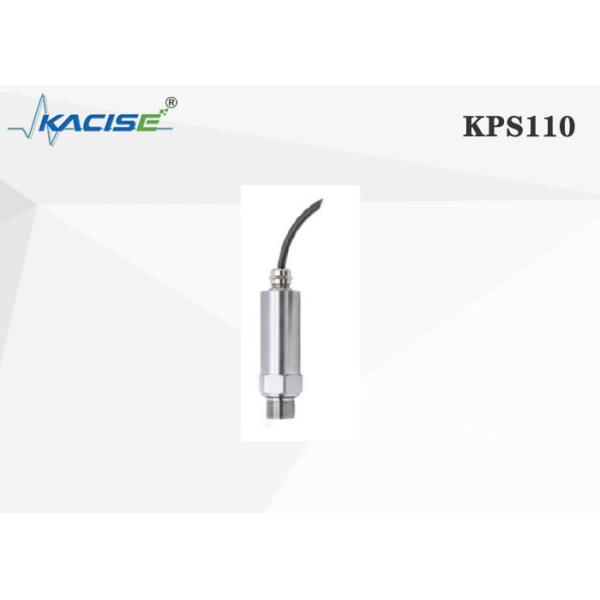

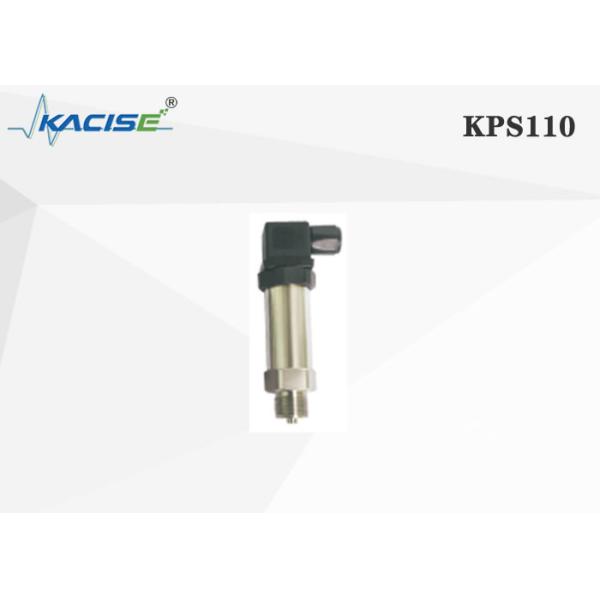

Intrinsically Safe Pressure Temperature Transmitter with RS485 Output and Stainless Steel 316L Construction
Intrinsically Safe Pressure Temperature Transmitter with RS485 Output and Stainless Steel 316L Construction
Intrinsically Safe Pressure Temperature Transmitter with RS485 Output and Stainless Steel 316L Construction
Intrinsically Safe Pressure Temperature Transmitter with RS485 Output and Stainless Steel 316L Construction
Intrinsically Safe Pressure Temperature Transmitter with RS485 Output and Stainless Steel 316L Construction
Intrinsically Safe Pressure Temperature Transmitter with RS485 Output and Stainless Steel 316L Construction
Specifications
Brand Name :
Kacise
Model Number :
KPS110
Place of Origin :
China
MOQ :
1
Price :
Negotiable
Payment Terms :
L/C,D/A,D/P,T/T,Western Union,MoneyGram
Supply Ability :
100+
Delivery Time :
5-8 work days
Packaging Details :
carton
Certification :
certificate of explosion-proof, CE
Pressure Range :
-0.1MPa┅0Mpa~0.01Mpa┅100Mpa
Overload :
2 times full scale pressure or 110MPa (whichever is the smaller)
Pressure Type :
Gauge pressure, absolute pressure, sealed gauge pressure
Temperature Resistance :
PT100 or PT1000 platinum resistance
Output Type :
RS485 temperature and pressure output
Power Supply :
12~30V DC
Load Resistance :
≥10k
Insulation Resistance :
100MΩ,100V DC
Case :
stainless steel
Sensor :
316L stainless steel
Sealing Ring :
fluororubber
Cable :
∅7.5mm polyethylene special cable
Degree of Protection :
IP65 (plug type);IP68 (cable type)
Description
1. Description

KPS110 pressure and temperature integrated transmitter is a temperature and pressure dual output sensor developed and produced by KACISE. It uses high stability and high reliability piezoresistive temperature and pressure integrated sensor and high-performance dual output transmitter. circuit, the overall performance is stable and reliable.
The products can be widely used in the detection and control of fluid pressure in petroleum, chemical, electric power, hydrology, geology and other industries.

2. Features
  • Reliable performance, safe and convenient to use
  • With short circuit protection and reverse polarity protection
  • Can choose gauge pressure, absolute pressure or sealed gauge pressure
3. Application
  • Petroleum, chemical industry, electric power
  • Urban water supply, hydrological exploration
  • Equipment matching, hydraulic and other industries
4. Specifications
Pressure Range -0.1MPa┅0Mpa~0.01Mpa┅100Mpa
Temperature Range
Overload 2 times full scale pressure or 110MPa (whichever is the smaller)
Pressure Type Gauge pressure, absolute pressure, sealed gauge pressure
Temperature Resistance PT100 or PT1000 platinum resistance
Output Type RS485 temperature and pressure output
Power Supply 12~30V DC
Load Resistance ≥10k
Insulation Resistance 100MΩ,100V DC
Case stainless steel
Sensor 316L stainless steel
Sealing Ring fluororubber
Cable ∅7.5mm polyethylene special cable
Degree of Protection IP65 (plug type) IP68 (cable type)
Compensation Temperature -10℃～+80℃
Operating Temperature -25℃～+80℃
Accuracy 0.5%
Zero Temperature Coefficient 0.03%FS/℃(≤100kPa); 0.02%FS/℃(＞100kPa)
Full Temperature Coefficient 0.03%FS/℃(≤100kPa); 0.02%FS/℃(＞100kPa)
Long-Term Stability ±0.3%FS/year (max.)
5. Drawing

Intrinsically Safe Pressure Temperature Transmitter with RS485 Output and Stainless Steel 316L Construction

6. Ordering Information
KPS110 Pressure and Temperature Transmitter
　 Pressure Range -0.1MPa┅0MPa～0.01 MPa┅100MPa
［0～X］KPa or MPa X: the actual pressure range
Temperature Range -25℃~80℃
［0～Y］℃ Y: the actual temperature range
Code Output
V RS485
Material
Code Diaphragm Interface Casing
22 Stainless steel 316L Stainless steel Stainless steel
24 Stainless steel 316L Stainless steel 316L Stainless steel 316L
Code Other function
B1 Hirschmann connection
B2 Fixed cable
PC3 G1/2 male thread with flush film
PC5 M20×1.5 male thread with flush film
C3 G1/2 male thread
C5 M20×1.5 male thread
G gauge pressure
A absolute pressure
S sealed gauge pressure
KPS110 -［0～100］kPa -［0～50］℃ - V - 22 - B1C5G
