KWS-206 High Accuracy Ammonia Gas Sensor with pH and Temperature Compensation and RS-485 Modbus Protocol
KWS-206 High Accuracy Ammonia Gas Sensor with pH and Temperature Compensation and RS-485 Modbus Protocol
KWS-206 High Accuracy Ammonia Gas Sensor with pH and Temperature Compensation and RS-485 Modbus Protocol
KWS-206 High Accuracy Ammonia Gas Sensor with pH and Temperature Compensation and RS-485 Modbus Protocol
Specifications
Brand Name :
Kacise
Model Number :
KBU601
Certification :
CE
Place of Origin :
China
MOQ :
0-100
Price :
Negotiable
Packaging Details :
carton
Supply Ability :
100
Measuring range :
0-1000mg/L NH4-N
accurate :
5%
pH range :
4-10
pH accurate :
±0.1
Power supply :
12～24VDC ±10%
Output :
Support RS-485, MODBUS protocol
Description

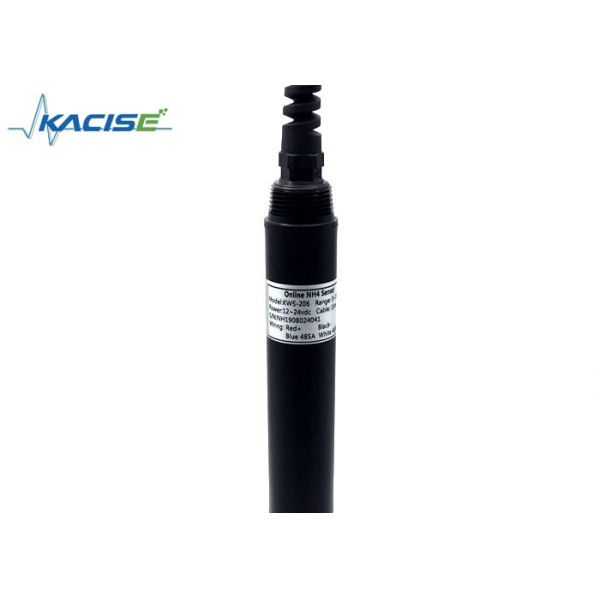

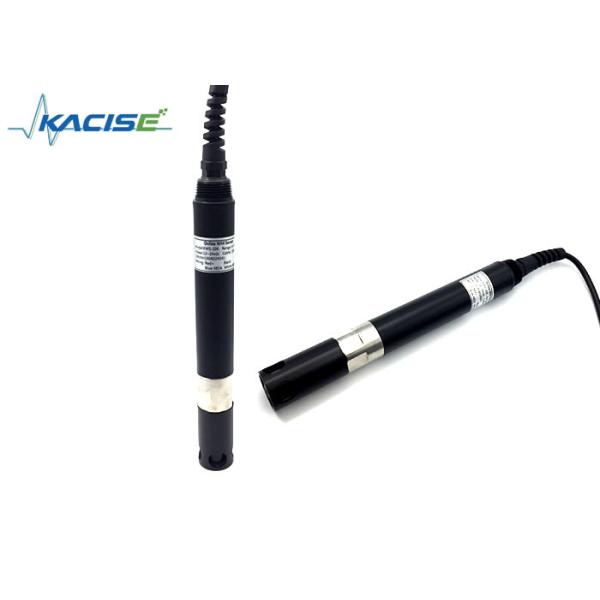

KWS-206 Online NH4-N Ammonia Nitrogen Sensor With pH And Temperature Compensation
Introduction

The Kacise KWS-206 integrated online ammonia nitrogen sensor is fabricated using a PVC membrane-based ammonium ion selective electrode for testing ammonium ion content in water with temperature compensation to ensure fast, simple, accurate and economical testing.

Feature
  • Signal output: RS-485 bus, Modbus/RTU protocol, convenient to connect to PLC, DCS, industrial control computer, general controller, paperless recording instrument or touch screen and other third-party equipment.
  • The patented ammonium ion probe, the internal reference solution oozes extremely slowly from the microporous salt bridge at a pressure of at least 100 KPa (1 Bar). Such a reference system is very stable and has a longer electrode life than conventional industrial electrodes.
  • Easy to install: 3/4 NPT thread (pipe thread) for easy submersible installation or installation in pipes and tanks.
  • IP68 protection grade.
Technical Specifications
Model KWS-206
Range 0～1000mg/L
Resolution 0.01mg/L
Accuracy ±10% or ±1mg/L
Operating Temperature 0～40℃
Work Pressure ＜0.1MPa
Ph Range of Medium 4～10 pH
Temperature Compensation automatic temperature compensation (Pt1000)
Power Supply 12～24VDC ±10%
Output RS485, Modbus/RTU
Material PVC and POM
Installation 3/4NPT, submersible installation
Cable Length 5m, customizable
Calibration two-point calibration
Power Consumption ＜0.5W
Protection Grade IP68
Dimension
KWS-206 High Accuracy Ammonia Gas Sensor with pH and Temperature Compensation and RS-485 Modbus Protocol
