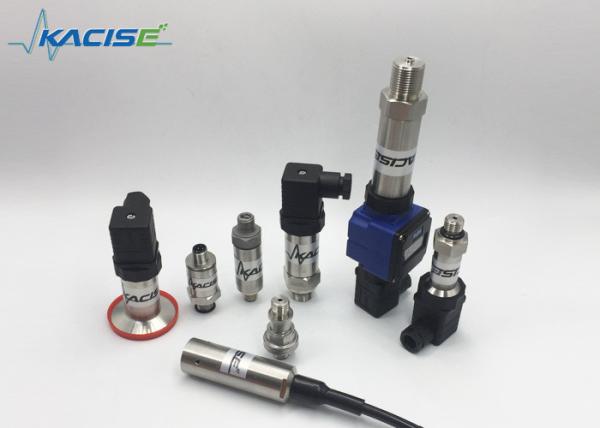

Automatic Detection Precision Pressure Transmitter GXPS353 Analog Signal Output
Automatic Detection Precision Pressure Transmitter GXPS353 Analog Signal Output
Automatic Detection Precision Pressure Transmitter GXPS353 Analog Signal Output
Automatic Detection Precision Pressure Transmitter GXPS353 Analog Signal Output
Automatic Detection Precision Pressure Transmitter GXPS353 Analog Signal Output
Automatic Detection Precision Pressure Transmitter GXPS353 Analog Signal Output
Automatic Detection Precision Pressure Transmitter GXPS353 Analog Signal Output
Automatic Detection Precision Pressure Transmitter GXPS353 Analog Signal Output
Specifications
Brand Name :
Kacise
Model Number :
GXPS353
Certification :
Intrinsically safe mode E, RoHS; CE
Place of Origin :
China
MOQ :
1 Piece
Price :
negotiable
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
2000 pieces per week
Packaging Details :
each unit has individual box and all boxes are packed in standard packages or customers requests available
Pressure range :
0~2bar ......600bar
Accuracy :
±0.25%F.S, ±0.5%F.S, ±1.0%F.S
Operating temperature :
-40°C~125°C
Electrical performance :
2 wire system 3 wire system
Output signal :
4~20mA 0.5~4.5V
Power supply :
10~30Vdc 5Vdc 10~30Vdc
Description

GXPS353 Analog signal output 4-20mA Output Pressure Sensor for Automatic Detection System

Application

  • Compressor
  • Floor house water supply
  • Hydraulic control
  • Air conditioning unit
  • Automobile engine
  • Automatic detection system
  • Hydraulic unit
  • Refrigeration equipment

Feature

  • Accuracy: ±0.25, ±0.5, ±1%F.S
  • High stability, high reliability
  • Import German ceramic core body
  • Digital calibration
  • Variety of connector choice
  • Variety of pressure port
  • Zero can be arbitrarily displaced
  • Variable drive can be between 50

to 100%

  • CE certificate
  • RoHS compliant

Introduction

GXPS353 series pressure transmitter is a high-volume, low cost OEM, civil & industrial use, high-quality, high-reliability products. Small size, light weight, compact structure, and widely used in the scene of the compressor, automobile, air conditioning, etc. pressure measurement. The product is made of high quality stainless steel structure, pressure core and sensor chips are imported from Germany, tuning and digital compensation techniques, and by the intrinsically safe certification and CE certification.

Standard voltage current output mode.

Electronic interface and signals definition

Automatic Detection Precision Pressure Transmitter GXPS353 Analog Signal Output


Parameter

Spec. Value
Pressure range 0~2bar ......600bar
Load pressure 1.5times nominal value pressure (1.5X)
Rupture pressure 3times nominal value pressure (3X)
Accuracy ±0.25%F.S, ±0.5%F.S, ±1.0%F.S
Stability Typical value 0.5%F.S, Max. value: 1%F.S
Operating temperature -40°C~125°C
Storage temp. -40~120℃
Compensation temperature -10°C~ 80°C
Medium compatibility All Caustic Medium Compatible with 1Cr18Ni9Ti
Electrical performance 2 wire system 3 wire system
Output signal 4~20mA 0.5~4.5V
Power supply 10~30Vdc 5Vdc 10~30Vdc
Load pressure (U-10)/0.02(Ω) >100kΩ
Insulation >100M Ω@50V
Electric strength 500V@60 second
Vibration/Impact 10g/5~2000Hz, axes X/Y/Z20g sine 11ms
Pressure durable 2×106pressure circle @25°C
Electrical connection Packard, Hirsmann , air plugs, fixed cable, water proof cable
Pressure port G1/4, NPT1/4, 7/16-20UNF, M20×1.5, G1/2,
Pressure type G, S Response time: 10ms
Certificate Intrinsically safe mode E, RoHS; CE
EMI/EMC EMI: EN50081-1/-2; EMC: EN50082-2
