High Capacity Alloy Steel Digital Load Cell with IP67 Protection for Tension Compression Applications
High Capacity Alloy Steel Digital Load Cell with IP67 Protection for Tension Compression Applications
High Capacity Alloy Steel Digital Load Cell with IP67 Protection for Tension Compression Applications
High Capacity Alloy Steel Digital Load Cell with IP67 Protection for Tension Compression Applications
Specifications
Brand Name :
KACISE
Model Number :
KCZ-201
Certification :
CE
Place of Origin :
China
MOQ :
1 Piece/Pieces
Price :
Negotiable
Payment Terms :
L/C,D/A,D/P,T/T,Western Union,MoneyGram
Supply Ability :
3000 Piece/Pieces per Month
Delivery Time :
7 Working days
Packaging Details :
Carton / Wooden box
Capacity :
50, 100, 200, 300, 500kg
Rated output :
2.0±0.1%mV/V
Zero balance :
±2%F.S.
Hysteresis :
0.03%F.S
Non-linearity :
0.03%F.S
Repeatability :
0.03%F.S
Material :
Alloy Steel
Protection Class :
IP67
Description

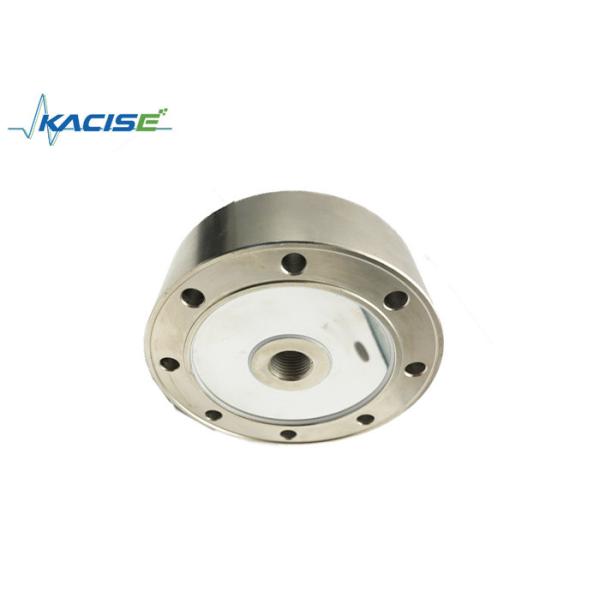

High Capacity Pancake Spoke Scale Tension Compression Load Cell Of Alloy Steel
Features
  • Low profile with small deflection .
Applications

Made of stainless steel Suitable for automotive press fit, automated assembly, 3CS products testing, new energy product accembly, medical testing, robotics, mold assembly and other industrial testing and controlling system.

Technical Specifications
Capacity50, 100, 200, 300, 500kg
Rated output2.0±0.1%mV/V
Zero balance±2%F.S.
Non-linearity0.03%F.S
Repeatability0.03%F.S
Hysteresis0.03%F.S
Creep (30min)0.03%F.S
Temp.effect on output0.03%F.S/10℃
Temp.effect on zero0.03%F.S/10℃
Input impedance780±20ohm
Output impedance700±10ohm
Insulation≥5000M ohm/100VDC
Recommended excitation5~15V
Maximum excitation20V
Compensated temp range-10~60℃
Operation temp range-20~80℃
Safe overload150%F.S
Ultimate overload200%F.S
Cable sizeΦ5x4000mm
Zero balance±2%F.S.
Capacity50, 100, 200, 300, 500kg
Rated output2.0±0.1%mV/V
IP classIP69
Dimensions and Connection

High Capacity Alloy Steel Digital Load Cell with IP67 Protection for Tension Compression Applications

Mounting dimension
Cap (t)ABCDEFGHJKM
0.11~1.76133.476.225.415.430.730.257.714.21320.6M12
2.2136.776.225.418.436.836.655.616.61312.5M12
4.4171.595.338.121.443.9432.973.822.920.522.2M20
