Food Grade PTFE Ultrasonic Fluid Level Meter 1NPT Chemical Resistance
Food Grade PTFE Ultrasonic Fluid Level Meter 1NPT Chemical Resistance
Food Grade PTFE Ultrasonic Fluid Level Meter 1NPT Chemical Resistance
Food Grade PTFE Ultrasonic Fluid Level Meter 1NPT Chemical Resistance
Specifications
Brand Name :
KACISE
Model Number :
KUS550
Certification :
CE
Place of Origin :
CHINA
MOQ :
1PCS
Price :
Negotiable
Payment Terms :
L/C, T/T, Western Union, MoneyGram
Supply Ability :
1000 Piece/Pieces per Week negotiable
Delivery Time :
5-8 work days
Packaging Details :
each unit has individual box and all boxes are packed in standard packages or customers requests available
Material :
PTFE
Thread :
1" NPT
IP grade :
IP67
Description

1"NPT Food Grade Chemical Resistance Whole Body PTFE Anti Corrosion Ultrasonic Level Sensor

Introduction

This sensor provides very short to long-range detection and ranging, in a compact, robust PVC/PTFE housing, designed to meet IP67.

Features

. IP67 Designed for outdoor or indoor environments

. High sensitivity

. Free run operation can continually measure and output ranger information

. Sensor beam angle is 10 degrees (full angle)

. Chemical Resistance Whole Body PTFE

. Anti Corrosion

. Suitable for Sanitary and Hygienic application

Applications

. Tank level measurement

. Bin level measurement

. Proximity zone detection

. People detection

. Robot ranging sensor

. Autonomous navigation

. Multi-sensors navigation

. Distance measuring

. Food level detection

. Industrial automation

Parameters

General Parameters Mechanical Properties
Detection Range 200mm~3000mm Connection 5 pin cable
Transducer Frequency 70KHZ Weight 100g
Repeatability Precision ≤1% IP grade IP67
Response Time <50ms
Beam Angle 7°±2
Temp. Compensation inside/outside/fix temp.
Electrical Parameters
Operating Voltage 14.5VDC~27VDC
Limit Working Voltage 13VDC~30VDC
Power Consumption ≤30mA
Circuit Protection short-circuit protection, overload protection
Output Digital Output RS485
Analogue Output 0~5V
Switch Output 0V / 5V
Ambient Environment
Operating Ambient Temp. 0~70℃ (-40~85℃, -55~125℃, etc, customizable)
Storage Temperature -55~125℃

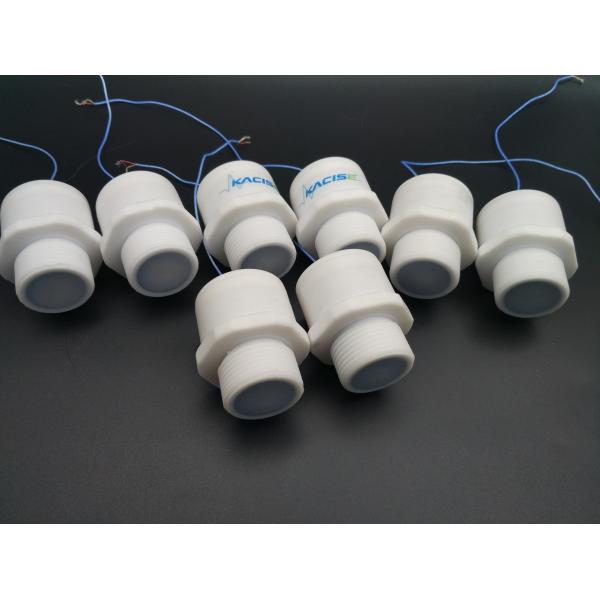

Food Grade PTFE Ultrasonic Fluid Level Meter 1
