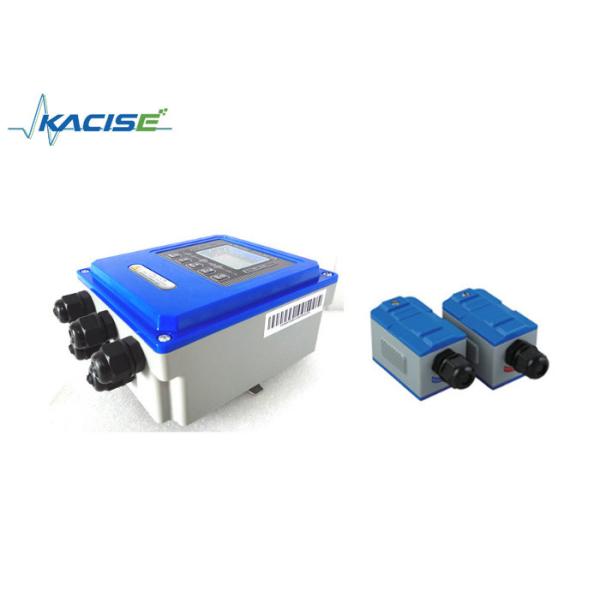

Non Contact Clamp On Ultrasonic Flow Meter with ±1% Accuracy RS485 MODBUS Interface and Wide Temperature Range -30~160℃
Non Contact Clamp On Ultrasonic Flow Meter with ±1% Accuracy RS485 MODBUS Interface and Wide Temperature Range -30~160℃
Non Contact Clamp On Ultrasonic Flow Meter with ±1% Accuracy RS485 MODBUS Interface and Wide Temperature Range -30~160℃
Non Contact Clamp On Ultrasonic Flow Meter with ±1% Accuracy RS485 MODBUS Interface and Wide Temperature Range -30~160℃
Specifications
Brand Name :
Kacise
Model Number :
KUFS2000 Series
Certification :
certificate of explosion-proof, CE
Place of Origin :
China (Mainland)
MOQ :
1pcs
Price :
Negotiable
Payment Terms :
L/C,D/A,D/P,T/T,Western Union,MoneyGram,paypal
Supply Ability :
1000 Pieces per Week
Delivery Time :
5-8 work days
Packaging Details :
each unit has individual box and all boxes are packed in standard packages or customers requests available
Interface :
RS485, support MODBUS
Accuracy :
±1%
Power Supply :
DC8~36V or AC85~264V
Type of Liquid :
Water, sea water, waste water, oil, chemicals (alcohol, acids, etc.), plant effluent and other liquids
Temperature :
- 30~160℃
Description
Non Contact Clamp On Ultrasonic Flow Meter Wall Type For Liquid Flow Measure
Introduction

The KUFS2000 series ultrasonic flow meter can be installed on the wall or in instrument box, suitable for pipe sizes from DN25mm to DN6000mm.

Features
  • High accuracy 1%
  • Wide range of flow rate and pipe diameter Suitable for the pipe with DN15 to DN6000
  • High reliability Working life is up to 10 years
  • Robust design Differential signal driver and receiver, immune to low frequency transformer and TV signal and transmission
  • Huge storage function Support 512 days and 128 months and 10 years accumulated flow result, auto save 64 times power on and off time and flow rate. Auto save 32 days work status of the meter
  • Easy to used for calorimeter Can be used as calorimeter after the temperature sensor is installation
  • Remote transmission and net work transmission RS485 interface support Mod-bus protocol and easy to support GPRS or Zigbee networking
Basic Parameters
Accuracy ±1%
Velocity Range 0~±10m/s, Bi-directional measurement
Pipe Size DN15~DN6000
Temperature - 30~160℃
Type of Liquid Single liquid can transmit sound wave. such as water, sea water, sewage, oil, chemicals , alcohol, etc
Pipe Material Carbon steel, stainless steel 304, stainless steel 316. Flange standard GB/T9119-2000, GB/T81-94
Signal Output

1 way 4-20mA output(impedance 0~1K, accuracy 0.1%) 1 way OCT pulse output( Pulse width 6 ~ 1000ms)

1 way relay output
Signal Input 3 way 4-20mA input, achieve to heat measurement by connecting PT100 platinum resistor.
Interface RS485, support MODBUS
Data Storage SD card regularly store the pre-set results (optional)
Power Supply DC8~36V or AC85~264V
Sensor selection

Sensor selection depend on the application field parameters such as the diameter of the pipe the fix method the kind of the flow, please refer to the fix method choice chapter for details.

Non Contact Clamp On Ultrasonic Flow Meter with ±1% Accuracy RS485 MODBUS Interface and Wide Temperature Range -30~160℃
Ordering information
Non Contact Clamp On Ultrasonic Flow Meter with ±1% Accuracy RS485 MODBUS Interface and Wide Temperature Range -30~160℃

Xi'an Kacise is certified by ISO 9001-2008, GJB 9001B-2009, CE, intrinsic safety explosion-proof and isolated safety explosion-proof, etc. which assure our products are conform to the international standards.

We have been specializing in manufacturing pressure, level and flow measuring instruments and related products for 10 years. We have experienced technical and management personnel, through the efforts of our entire staff, we have become a professional measuring instrument manufacturer and solution provider. And we are continuously trying to improve product quality.

Currently, Kacise sensor is already exported to America, Spain, Australia, Chile and 20 other countries and regions, and received many favorable feedbacks. Our overseas distributers are also increasing. We regards “reasonable prices, efficient production time and good after-sales service” as our tenet, and hope to cooperate with more customers for mutual development.
