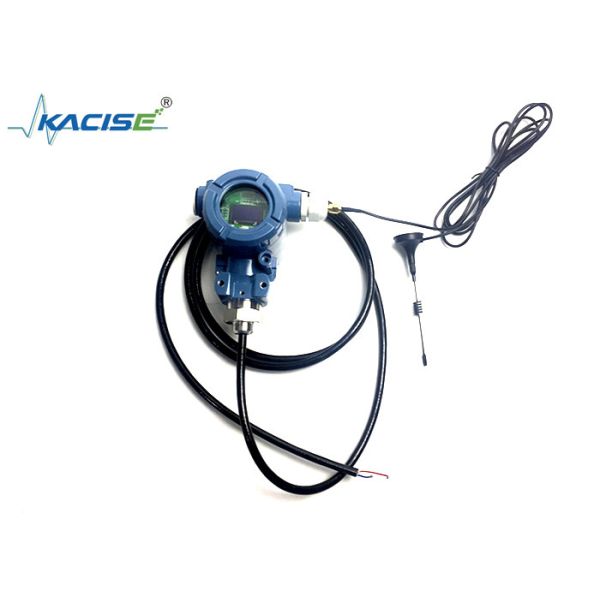

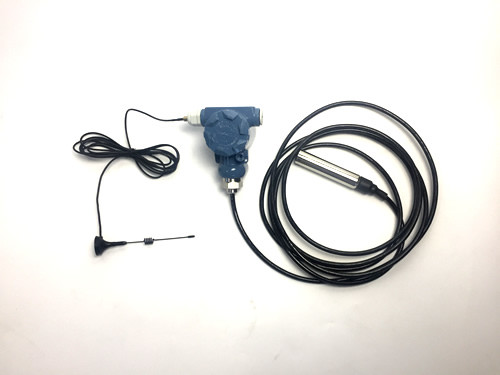

GXPS606 High Accuracy Long Range Wireless Pressure Transmitter with LoRa Level Sensor for Liquid Volume Measurement
GXPS606 High Accuracy Long Range Wireless Pressure Transmitter with LoRa Level Sensor for Liquid Volume Measurement
GXPS606 High Accuracy Long Range Wireless Pressure Transmitter with LoRa Level Sensor for Liquid Volume Measurement
GXPS606 High Accuracy Long Range Wireless Pressure Transmitter with LoRa Level Sensor for Liquid Volume Measurement
GXPS606 High Accuracy Long Range Wireless Pressure Transmitter with LoRa Level Sensor for Liquid Volume Measurement
GXPS606 High Accuracy Long Range Wireless Pressure Transmitter with LoRa Level Sensor for Liquid Volume Measurement
Specifications
Brand Name :
Kacise
Model Number :
GXPS606
Certification :
CE
Place of Origin :
China
MOQ :
1 piece
Price :
negotiable
Payment Terms :
L/C,D/A,D/P,T/T,Western Union,MoneyGram
Supply Ability :
2000 pieces per week
Packaging Details :
each unit has individual box and all boxes are packed in standard packages or customers requests available
Pressure range :
0~200m
Accuracy :
±0.5% of F.S
Operate temperature :
-10°C~70°C
Medium :
compatible with Stainless Steel 1Cr18Ni9Ti
Data transmission channel :
Wireless Lora
Power supply :
1.5-5.5V@150mA battery / 7-24VDC
Description
GXPS606 Waterproof Long Range Wireless LoRa Level Sensor With Liquid Volume Meter
Application
  • Special for pipeline pressure monitoring in wild field or non power distribution
  • Used in metallurgical industry and chemical industry
Feature
  • Good stability and high precision;
  • Easy to install and use;
  • Compact structure, no moving parts, high reliability, long service life;
  • From water, oil to paste with high viscosity, high-precision measurement can be carried out, which is not affected by foaming, deposition and electrical properties of the measured medium;
  • Wide range of temperature compensation;
  • Low power consumption, can be maintained for 3 years after installing the battery
Introduction

GXPS606 LoRa Wireless Transmission Liquid Volume Meter,Based on the principle that the measured hydrostatic pressure is proportional to the height of the liquid, the level sensor can be accurately placed in the container to measure the height from the end of the level gauge to the water surface, depending on the external structure, size and liquid of the container being tested. Density, calculate and display the volume or weight of the liquid in the container and display it on the display by wireless transmission.

Parameter
Level measurement range 0~200 m
Volume measurement range 0~10^5 m³
Level measurement accuracy 0.5%
Volume measurement accuracy 1%
Operating temperature -40°C~85°C
Compensation temperature -10°C~70°C
Power supply 1.5-5.5V@150mA battery / 7-24VDC
Communication Wireless transmission
Protection level IP65
Applicable medium All corrosive media compatible with 1Cr18Ni9Ti and 316L
Applicable tank cuboids, cylinders, ellipsoidal columns
Lora module parameters

MCU Side

MCU: STM32L072CZT6
Flash:192KB
RAM:20KB
EEPROM:6KB
Clock Speed: 32Mhz

LoRa Side

LoRa Chip: sx1276/sx1278
68 dB maximum link budget.
+20 dBm - 100 mW constant RF output vs.
+14 dBm high efficiency PA.
Programmable bit rate up to 300 kbps.
High sensitivity: down to -148 dBm.
Bullet-proof front end: IIP3 = -12.5 dBm.
127 dB Dynamic Range RSSI.
LoRaWAN 1.0.2 Specification

Installation
GXPS606 High Accuracy Long Range Wireless Pressure Transmitter with LoRa Level Sensor for Liquid Volume Measurement
