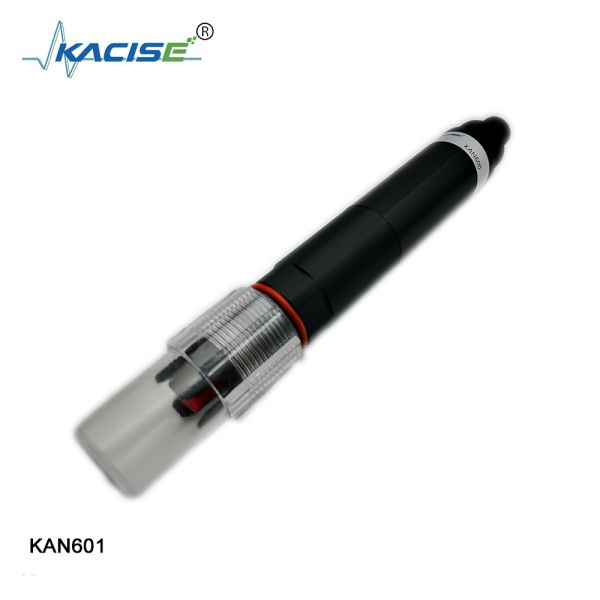

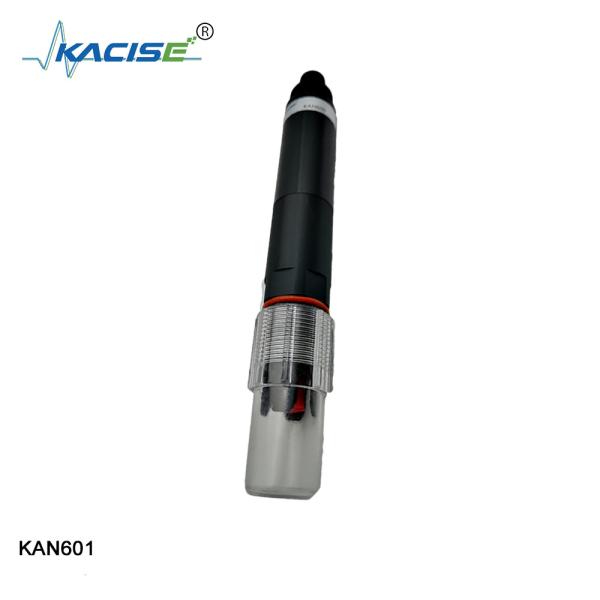

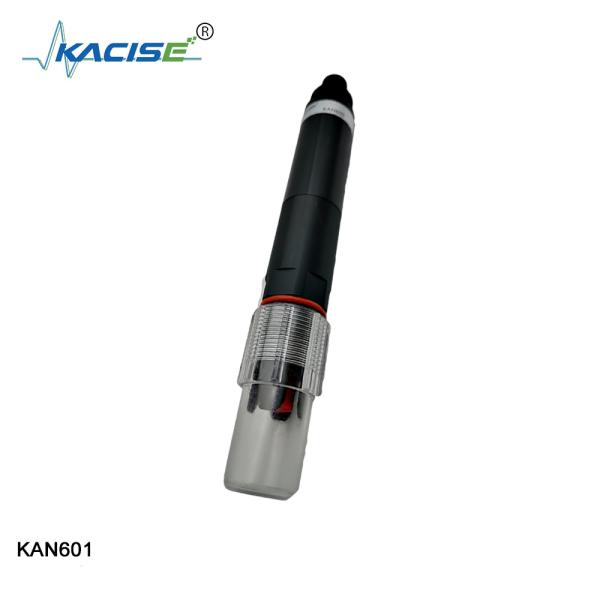

Pom Shell Residual Chlorine Sensor with Constant Voltage Method 0-2.000 mg/L Range and Automatic Temperature Compensation
Pom Shell Residual Chlorine Sensor with Constant Voltage Method 0-2.000 mg/L Range and Automatic Temperature Compensation
Pom Shell Residual Chlorine Sensor with Constant Voltage Method 0-2.000 mg/L Range and Automatic Temperature Compensation
Pom Shell Residual Chlorine Sensor with Constant Voltage Method 0-2.000 mg/L Range and Automatic Temperature Compensation
Pom Shell Residual Chlorine Sensor with Constant Voltage Method 0-2.000 mg/L Range and Automatic Temperature Compensation
Pom Shell Residual Chlorine Sensor with Constant Voltage Method 0-2.000 mg/L Range and Automatic Temperature Compensation
Specifications
Brand Name :
kacise
Model Number :
KRC601
Certification :
CE
Place of Origin :
CHINA
MOQ :
0-100
Price :
$0-$500
Payment Terms :
L/C,D/A,D/P,T/T,Western Union,MoneyGram
Supply Ability :
200pcs/day
Delivery Time :
3-10days
Packaging Details :
Common package or custom package
Measuring principle :
Constant voltage method
Range Range :
0ー2.000 mg/L (HClO)
Resolution :
0.001 MGL
Precision :
± 5% or ± 0.05 mg/l, ± 0.5 °C
Calibration function :
Two-point calibration
Working pressure :
< 0.1 mpa
Description
KRC601 Online Residual Chlorine Sensor Used In Drinking Water Treatment Plant, Canning Plant, Drinking Water
Application Environment

Used in drinking water treatment plant, canning plant, drinking water distribution network, swimming pool, cooling circulating water, water treatment project, etc. .

Technical Specification
Model number KRC601
Measuring principle Constant voltage method
Range Range 0ー2.000 mg/L (HClO)
Resolution 0.001 MGL
Precision ± 5% or ± 0.05 mg/l, ± 0.5 °C
Calibration function Two-point calibration
Working pressure < 0.1 mpa
The pH range of the medium 4 ~ 9 ph
Temperature compensation Automatic temperature compensation (PT1000)
Signal output RS-485(Modbus/RTU)
Shell material Pom, polytetrafluoroethylene
Operating temperature 5 ~ 50 °C
Installation mode Circulation Pool installation
Dimensions 30 × 233 mm
Velocity of flow 30 ~ 60 L/h
Response time < 30s
Power consumption 0.2W@12V
Power supply 12 ~ 24 VDC
Protection level IP68
Dimensional Drawing
Pom Shell Residual Chlorine Sensor with Constant Voltage Method 0-2.000 mg/L Range and Automatic Temperature Compensation

Note: Sensor Connector is M16-5 core waterproof connector
