High Accuracy 0.25% IP68 Waterproof Corrosion Resistant Water Immersion Sensor and Level Transmitter
High Accuracy 0.25% IP68 Waterproof Corrosion Resistant Water Immersion Sensor and Level Transmitter
High Accuracy 0.25% IP68 Waterproof Corrosion Resistant Water Immersion Sensor and Level Transmitter
High Accuracy 0.25% IP68 Waterproof Corrosion Resistant Water Immersion Sensor and Level Transmitter
High Accuracy 0.25% IP68 Waterproof Corrosion Resistant Water Immersion Sensor and Level Transmitter
High Accuracy 0.25% IP68 Waterproof Corrosion Resistant Water Immersion Sensor and Level Transmitter
Specifications
Packaging Details :
each unit has individual box and all boxes are packed in standard packages or customers requests available
Supply Ability :
1000 Piece/Pieces per Week negotiable
Price :
$50.00 - $180.00/pieces
Place of Origin :
CHINA
Brand Name :
KACISE
Certification :
CE
MOQ :
1PCS
Delivery Time :
5-8 work days
Accuracy :
0.25%, 0.5%, 1.0%
Temperature :
customized available
Transmitter name :
Level transmitter
Medium :
Water immersion sensor
Port :
Shanghai or other
Description
GXPS Water immersion sensor
1. Specification:
Spec. Numerical value Remark
Pressure range 0~1……500mH2O 1mH2O≈9.81kPa
Overload pressure 1.5times Rated pressure
fracture pressure 3 times rated pressure
Accuracy 0.25%F.S, 0.5%F.S, 1.0%F.S
Stability Typical value: 0.1%F.S Max.: 0.2% F.S/year
Operating Temperature -40°C~85°C or -40 °C ~125 °C
compensation temperature -10°C~70°C
medium compatibility All Caustic Medium Compatible with 1Cr18Ni9Ti and 316L
electrical properties 2 line 3 line
Output signal 4~20mA 0~5V 0~10V
Power supplies 10~30Vdc 80~30Vdc/ac 11~30Vdc/ac Vdc/ac
load resistance (U-10)/0.02( Ω ) more than 100k Ω
insulation more than 100M Ω @50V
Electrical Connections waterproof fixed cable + Two rectangle circle+Sealing Rings+seal gum+ Pure glue protection grade : IP68
pressure interface G1/4,input type
response time 10ms
Electric strength 500Vac@1 second
Graduate Certificate Programs certificate of explosion-proof, CE
electromagnetic compatibility electromagnetic radiation EN50081-1/-2, electromagnetic susceptibilty: EN50082-2
lightning protection air conduction resistance 8000V,case, cable conduction
2. Feature:
  • 1). Diffused-Silicon oil filled core
  • 2). All kinds of structure to satisfy different users
  • 3). Easy to use with submersible measuring
  • 4). Multiple pressure range and signal output
  • 5). Non-polar 2 wire system current output
  • 6). Can be used in lightning protection products
  • 7). Reinforcing rib of liquid cable
  • 8). Intrinsically safe explosion proof, Isolation explosion proof, CE
3. Application:
  • 1). Deep well level measuring
  • 2). Hydrologic measurement for river, lake, sea
  • 3). Sewage treatment
  • 4). Cloudy level measuring
  • 5). Fluid reservoir level measuring
  • 6). Water-saving irrigation
  • 7). Circulating liquid consumption monitoring
  • 8). Diversion works
4. Electric connection & structure
High Accuracy 0.25% IP68 Waterproof Corrosion Resistant Water Immersion Sensor and Level Transmitter
High Accuracy 0.25% IP68 Waterproof Corrosion Resistant Water Immersion Sensor and Level Transmitter High Accuracy 0.25% IP68 Waterproof Corrosion Resistant Water Immersion Sensor and Level Transmitter
5. Package
High Accuracy 0.25% IP68 Waterproof Corrosion Resistant Water Immersion Sensor and Level Transmitter High Accuracy 0.25% IP68 Waterproof Corrosion Resistant Water Immersion Sensor and Level Transmitter

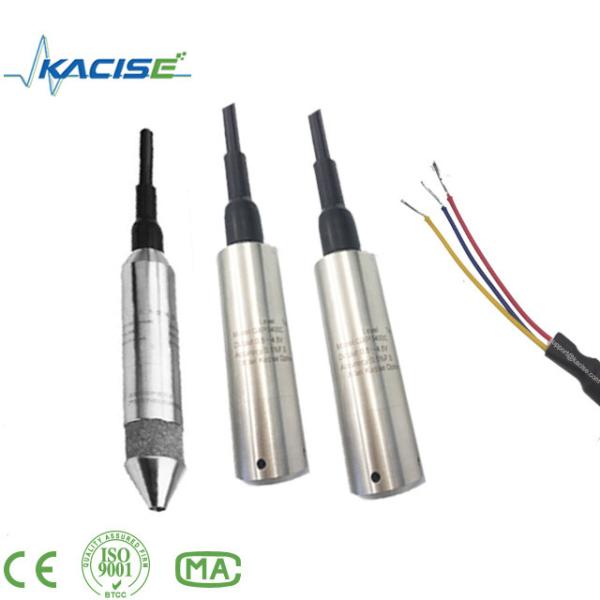

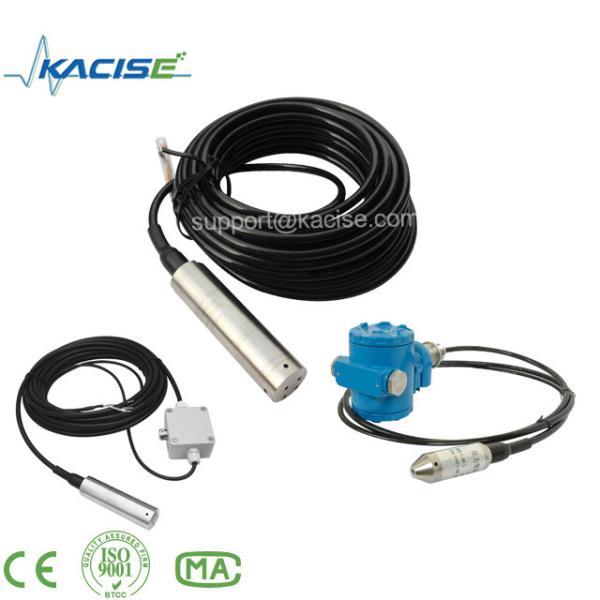

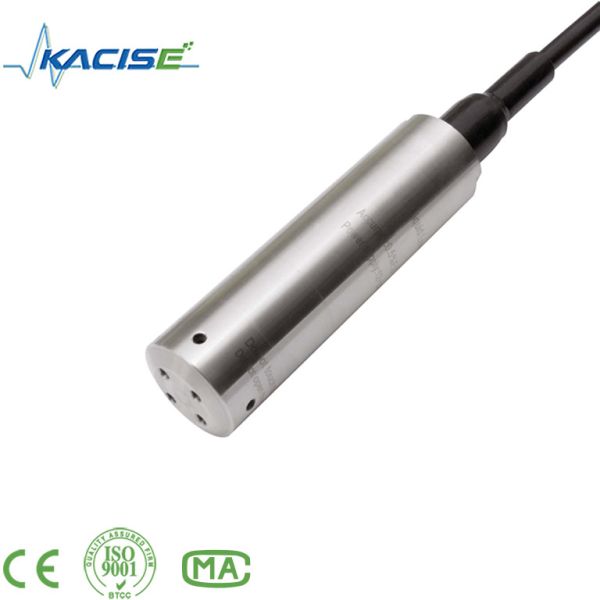

6. Product picture
High Accuracy 0.25% IP68 Waterproof Corrosion Resistant Water Immersion Sensor and Level Transmitter High Accuracy 0.25% IP68 Waterproof Corrosion Resistant Water Immersion Sensor and Level Transmitter High Accuracy 0.25% IP68 Waterproof Corrosion Resistant Water Immersion Sensor and Level Transmitter
Please send us emali for more information.
In order to choose the suitable products for you, please send us below information with the feedback.
  • 1. pressure range
  • 2. accuracy
  • 3. output signal
  • 4. power supply voltage
  • 5. pressure port
  • 6. cable length
  • 7. medium
  • 8. temperature range
High Accuracy 0.25% IP68 Waterproof Corrosion Resistant Water Immersion Sensor and Level Transmitter
