Dissolved Oxygen Sensor For Industrial Water Quality Testing With Accuracy 1%
Dissolved Oxygen Sensor For Industrial Water Quality Testing With Accuracy 1%
Dissolved Oxygen Sensor For Industrial Water Quality Testing With Accuracy 1%
Dissolved Oxygen Sensor For Industrial Water Quality Testing With Accuracy 1%
Specifications
Accuracy :
±1%
Operating Temperature :
0~50℃
Response Time :
20 sec
Range :
0-20mg/L or 0-200% saturation
Model Number :
KWS-600
Sensor Drift :
<1% per year
Place of Origin :
Shaanxi, China
Brand Name :
Kacise
Packaging Details :
each unit has individual box and all boxes are packed in standard packages or customers requests available
Supply Ability :
500 Piece/Pieces per Month
Price :
$100.00 - $1,000.00/pieces
Ip Grade :
IP68
Description
Dissolved Oxygen Sensor For Industrial Water Quality Testing With Accuracy 1%
Product Overview
The Kacise KWS-600 online fluorescence dissolved oxygen sensor utilizes high-performance fluorescent materials for precise industrial water quality monitoring. This advanced sensor requires no oxygen consumption, has no flow rate limitations, contains no electrolyte, and eliminates the need for frequent maintenance and calibration. It is immune to hydrogen sulfide interference and offers exceptional stability. The sensor features a built-in temperature sensor for automatic temperature compensation and provides RS485 output for direct networking without requiring a separate controller.
Key Features
  • Digital sensor with RS485 output supporting MODBUS protocol
  • No membrane, no electrolyte, no interference, minimal calibration requirements
  • No oxygen consumption and no flow rate limitations
  • Built-in temperature sensor with automatic temperature compensation
Technical Specifications
Parameter Specification
Range 0-20mg/L or 0-200% saturation
Accuracy ±1%
Response Time 20 sec
IP Grade IP68
Sensor Drift <1% per year
Operating Temperature 0~50℃
Temperature Accuracy ±0.2℃
Output RS485, Modbus
Power Supply DC9-24V ±5%, current<50mA
Temperature Sensor NTC
Casing Diameter 26mm
Installation G3/4, submersible
Cable Length Standard 10m, customizable 5m, 15m and 30m
Fluorescent Cap Lifetime 1 year (under normal use)
Casing Material Titanium
Dimensions
Dissolved Oxygen Sensor For Industrial Water Quality Testing With Accuracy 1%

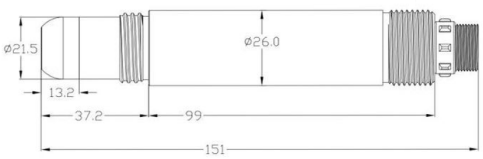

Dimensions Diagram
