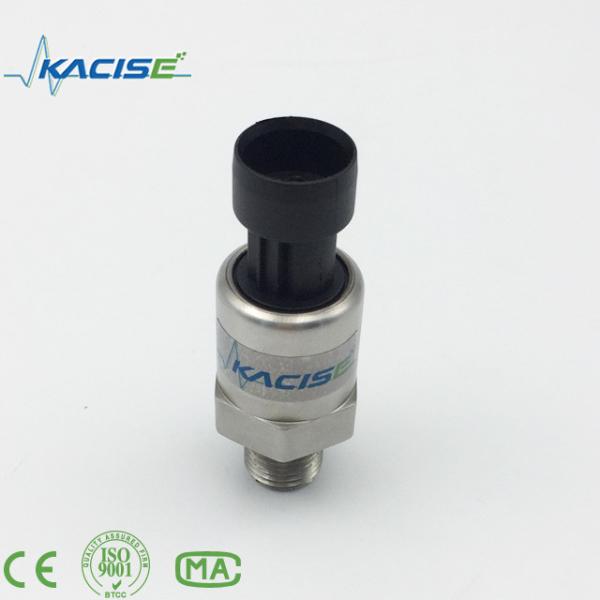

Hydraulic Pressure Sensor with 0.25%F.S Accuracy 4-20mA Output and Corrosion Resistant for Compressor Control
Hydraulic Pressure Sensor with 0.25%F.S Accuracy 4-20mA Output and Corrosion Resistant for Compressor Control
Specifications
Port :
Shanghai or other
Place of Origin :
CHINA
Brand Name :
KACISE
Model Number :
GXP353
Packaging Details :
each unit has individual box and all boxes are packed in standard packages or customers requests available
Supply Ability :
1000 Piece/Pieces per Week negotiable
Price :
$50.00 - $180.00/pieces
Output :
Analog Sensor
suuplies power :
10~30Vdc 5Vdc 10~30Vdc
pressure range :
0-2bar......60bar
Theory :
Resistance Sensor
accuracy :
±0.25%F.S, ±0.5%F.S, ±1.0%F.S
Usage :
Pressure transducer
output :
Optional 0/1-5V 0-10V 4-20mA
stability :
Typical value 0.5%F.S, Max. value: 1%F.S
Certification :
CE
MOQ :
1PCS
Delivery Time :
5-8 work days
Description

GXPS353 Hydraulic control Compressor pressure sensor

1. Parameter
Spec. Value
Pressure range 0~2bar ......600bar
Load pressure 1.5times nominal value pressure (1.5X)
Rupture pressure 3times nominal value pressure (3X)
Accuracy ±0.25%F.S, ±0.5%F.S, ±1.0%F.S
Stability Typical value 0.5%F.S, Max. value: 1%F.S
Operating temperature -40°C~100°C
Compensation temperature -10°C~ 80°C
Medium compatibility All Caustic Medium Compatible with 1Cr18Ni9Ti
Electrical performance 2 wire system 3 wire system
Output signal 4~20mA 0.5~4.5V
Power supply 10~30Vdc 5Vdc 10~30Vdc
Load pressure (U-10)/0.02(Ω) >100kΩ
Insulation >100MΩ@50V
Electric strength 500V@60 second
Vibration/Impact 10g/5~2000Hz, axes X/Y/Z20g sine 11ms
Pressure durable 2*106pressure circle @25°C
Electrical connection Packard, Hirsmann , air plugs, fixed cable, water proof cable
Pressure port G1/4, NPT1/4, 7/16-20UNF, M20*1.5, G1/2,
Pressure type G, S Response time: 10ms
Certificate Intrinsically safe mode E, RoHS; CE
EMI/EMC EMI: EN50081-1/-2; EMC: EN50082-2
2. Electrical connection mode & structure:

Hydraulic Pressure Sensor with 0.25%F.S Accuracy 4-20mA Output and Corrosion Resistant for Compressor Control

GX-PT1200A current output
GX-PT1200V Voltage output
GX-PT1200-KX Specialized for Frequency conversion water supply system

Hydraulic Pressure Sensor with 0.25%F.S Accuracy 4-20mA Output and Corrosion Resistant for Compressor Control

2 wire 3 wire Cable Hirsman Air plug Packard
Power Power Red 1 1 1
Output Output Blue/green 2 2 2
Power ground Black 3 3 3
Shielded Shielded Yellow
3. Feature
  • Accuracy: ±0.25, ±0.5, ±1%F.S
  • High stability, high reliability
  • Import German ceramic core body
  • Digital calibration
  • Variety of connector choice
  • Variety of pressure port
  • Zero can be arbitrarily displaced
  • Variable drive can be between 50 to 100%
  • CE certificate
  • RoHS compliant
4. Apllications
  • Compressor
  • Floor house water supply
  • Hydraulic control
  • Air conditioning unit
  • Automobile engine
  • Automatic detection system
  • Hydraulic unit
  • Refrigeration equipment

1). The sensor is desgined specially for space flight, petroleum, chemical, mining machinery Testing System, micropressure measurement, high-speed railway carriage usage.

2). The customer is spreading all over the world for shipbuilding ,special truck,chemical industry,

3). Help our customer cut the cost obviously.
