Specifications
Brand Name :
Kacise
Model Number :
KUFS2000C
Place of Origin :
China
MOQ :
1
Price :
294~308USD/pc
Payment Terms :
L/C,D/A,D/P,T/T,Western Union,MoneyGram
Supply Ability :
100+
Delivery Time :
5-8 work days
Packaging Details :
carton
Accuracy :
≤1%
Velocity Range :
0~±10m/s, Bi-directional measurement
Pipe Size :
DN32~DN6000
Temperature :
- 30~160℃
Type of Liquid :
Single liquid can transmit sound wave. such as water, sea water, sewage, oil, chemicals , alcohol, etc
Pipe Material :
Steel, Stainless steel, Cast iron, Copper, PVC, Aluminum, Glass steel, etc. Liner is allowed
Signal Output :
1 way 4-20mA output(impedance 0~1K, accuracy 0.1%) 1 way OCT pulse output( Pulse width 6 ~ 1000ms) 1 way relay output
Interface :
RS485, support MODBUS
Power Supply :
DC8~36V or AC85~264V
Description

KUF2000 Series Clamp On Ultrasonic Flow Meter

Introduction

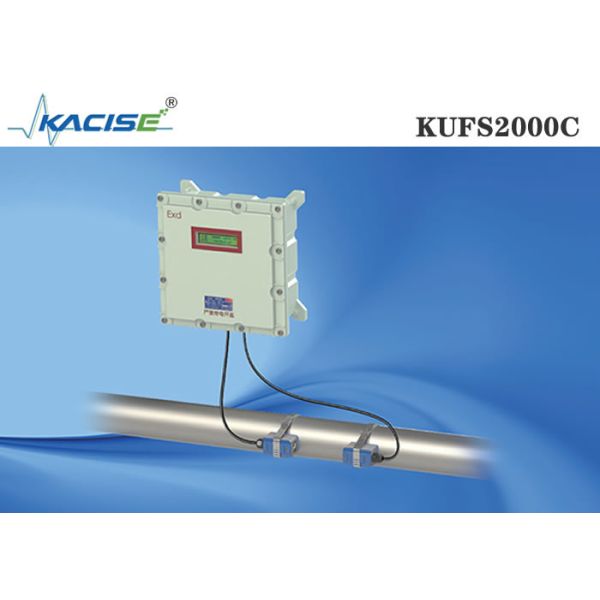

KUF2000 series clamp on ultrasonic flow meter consists of the meter and clamp on sensor.
The clamp on ultrasonic flow meter is easy for installation, no need to cut off the pipe and water, no press loss. It support measuring online long-term. Wide range of liquid flow can be measured with the sensor clamped on the pipe.
The KUFS2000C flow meter adopts isolated explosion proof, grade DΙΙBT5
Clamp on sensors are installed on the pipe. After gluing and sealing, grade will be Intrinsically safe explosion.
Suitable for pipe sizes from DN32mm to DN6000mm.

KUFS2000C Explosion Proof Clamp On Ultrasonic Flow Meter with Bi-directional Measurement for DN32-DN6000 Pipes

Working Condition

Main UnitSensor
ProtectionIP65IP68
Humidity≤85%RH
Temperature-20~60℃-30~160℃

Basic Parameters

Accuracy≤1%
Velocity Range0~±10m/s, Bi-directional measurement
Pipe SizeDN32~DN6000
Temperature- 30~160℃
Type of LiquidSingle liquid can transmit sound wave. such as water, sea water, sewage, oil, chemicals , alcohol, etc
Pipe MaterialSteel, Stainless steel, Cast iron, Copper, PVC, Aluminum, Glass steel, etc. Liner is allowed
Signal Output

1 way 4-20mA output(impedance 0~1K, accuracy 0.1%)
1 way OCT pulse output( Pulse width 6 ~ 1000ms)
1 way relay output

Signal Input3 way 4-20mA input, achieve to heat measurement by connecting PT100 platinum resistor.
InterfaceRS485, support MODBUS
Data StorageSD card regularly store the pre-set results (optional)
Power SupplyDC8~36V or AC85~264V

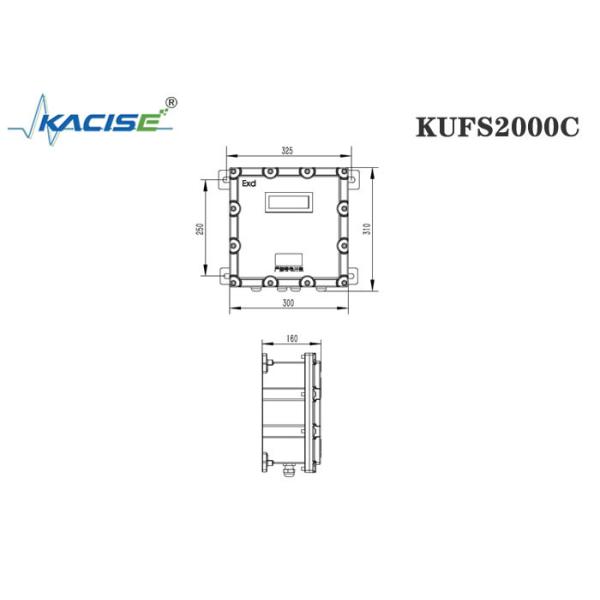

Dimension
Unit: mm
Opening Dimensions: 154*77mm
KUFS2000C Explosion Proof Clamp On Ultrasonic Flow Meter with Bi-directional Measurement for DN32-DN6000 Pipes

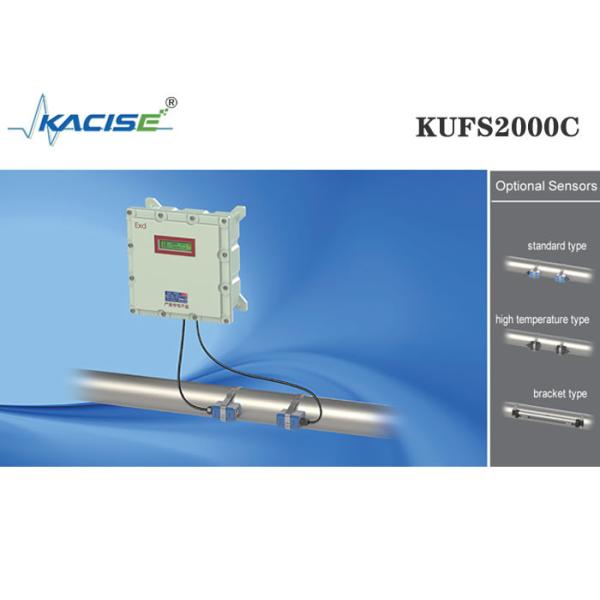

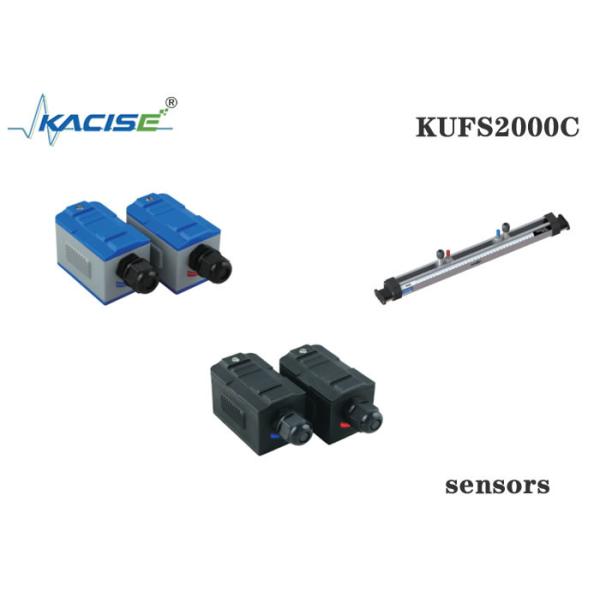

Standard Clamp On Sensor

  • Built-in magnet, easy to be absorbed on pipe
  • IP68
  • Measuring range: DN32~DN6000
  • Temperature range: - 30~90℃

KUFS2000C Explosion Proof Clamp On Ultrasonic Flow Meter with Bi-directional Measurement for DN32-DN6000 Pipes

TypeModelMeasuring RangeTemperatureDimension
Small SizeTS-2DN32~DN100- 30~90℃45×25×28mm
Middle SizeTM-1DN50~DN700- 30~90℃64×39×44mm
Large SizeTL-1DN300~DN6000- 30~90℃97×54×53mm

High Temperature Clamp On Sensor

  • Built-in magnet, easy to be absorbed on pipe
  • IP68
  • Measuring range: DN32~DN6000
  • Temperature range: - 30~160℃

KUFS2000C Explosion Proof Clamp On Ultrasonic Flow Meter with Bi-directional Measurement for DN32-DN6000 Pipes

TypeModelMeasuring RangeTemperatureDimension
Small SizeTS-2-HTDN32~DN100- 30~160℃45×25×28mm
Middle SizeTM-1-HTDN50~DN700- 30~160℃64×39×44mm
Large SizeTL-1-HTDN300~DN6000- 30~160℃97×54×53mm

Mounting Bracket Clamp On Sensor

  • Improve installation efficiency and accuracy
  • IP68
  • Measuring range: DN32~DN700
  • Temperature range: - 40~160℃

KUFS2000C Explosion Proof Clamp On Ultrasonic Flow Meter with Bi-directional Measurement for DN32-DN6000 Pipes

TypeModelMeasuring RangeTemperatureDimension
Standard Small Size SensorHSDN32~DN100- 40~90℃318×59×85mm
Standard Middle Size SensorHMDN50~DN300- 40~90℃568×59×85mm
Extended (bracket only)EB-1＞DN300- 40~90℃88×59×49mm
High Temp. Small Size SensorHS-HTDN32~DN100- 40~160℃318×59×145mm
High Temp. Middle Size SensorHM-HTDN50~DN300- 40~160℃568×59×145mm
Extended (bracket only)EB-1-HT＞DN300- 40~160℃88×59×49mm

Ordering Information
KUFS2000C Explosion Proof Clamp On Ultrasonic Flow Meter with Bi-directional Measurement for DN32-DN6000 Pipes
