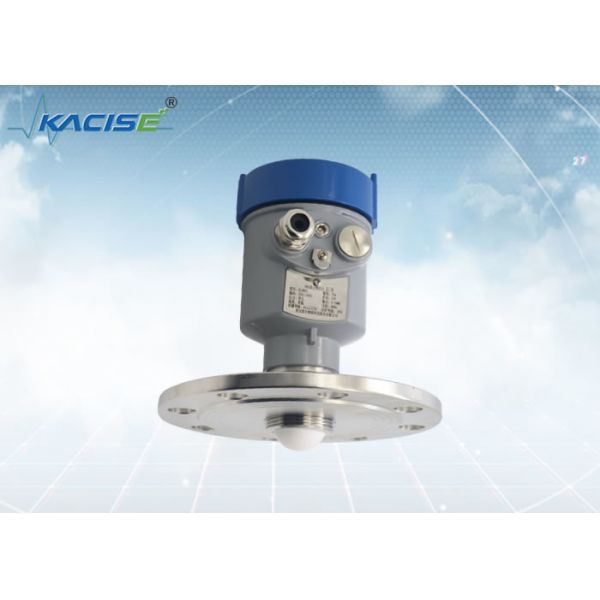

The 80GHz continuous frequency modulated wave radar has a narrower beam angle, which can better penetrate the space between the mixing blades and the tank wall, and reduce the interference caused by the mixing blades;

The radar adopts spherical lens, which is not easy to hang large area of condensation, and has obvious advantages in measuring condensation environmental conditions combined with proprietary algorithms;

The radar has a highly stable algorithm, which can stably track the liquid level measurement such as liquid level splash, splash and eddy current caused by mixing and spoiler.

With temperature compensation, we can obtain the true value of strain borne on the object. The coefficient of thermal expansion of the sensing element in the strain gauge causes elongation or contraction of it. The changes in temperature make unwanted changes in the sensing element length and this causes error in strain reading.

When using flange installation, the minimum distance between the instrument and the tank wall should be 200mm.

① datum plane

② vessel center or axis of symmetry

When installing the instrument, avoid installing it above the material inlet, and try to avoid various objects that affect the signal, such as stirring paddles, etc.

Under extremely complex working conditions, the instrument can work normally if there is no obstacle in the area with a radius of 20cm centered on the installation point.

The maximum installation spool height H max depends on the installation spool diameter D and the size of the product launch angle.

Too long installation connection will affect the radar performance.

Xi'an Kacise Optronics Tech Co., Ltd considers itself a solution provider and manufacturer. We offer maximum flexibility and a cost-optimised offer for our OEM customers.
What we could provide:
The range includes customized shell version/color, thread type(G-Thread/NPT Thread), Customized Software, prints, manual and catalog. If you are interested in installing at your side, Radar Module is available for sure.
